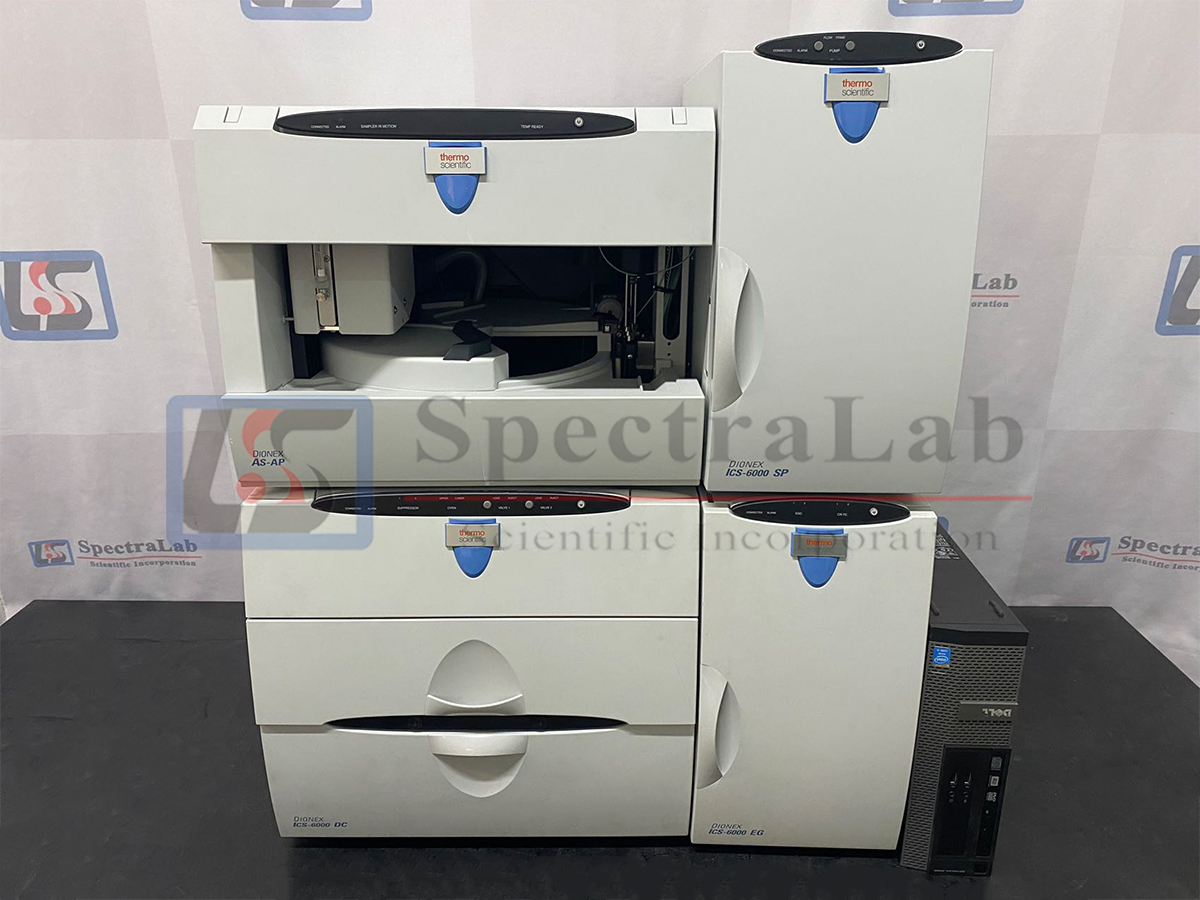

Thermo Scientific Dionex ICS-6000 HPIC System with AS-AP Autosampler in Original Package
3-12 month warranty
Service options & contracts available
To sell, trade-in, or service your equipment
How do we Refurbish Lab Equipment?
Looking for further assistance? Contact Us
Request Quote/ Offer
Estimate Shipping Time
Canada & U.S.: 3-5 business days
International: 5-10 business days
Tariff-Free Shipping to the U.S.!
System Include:

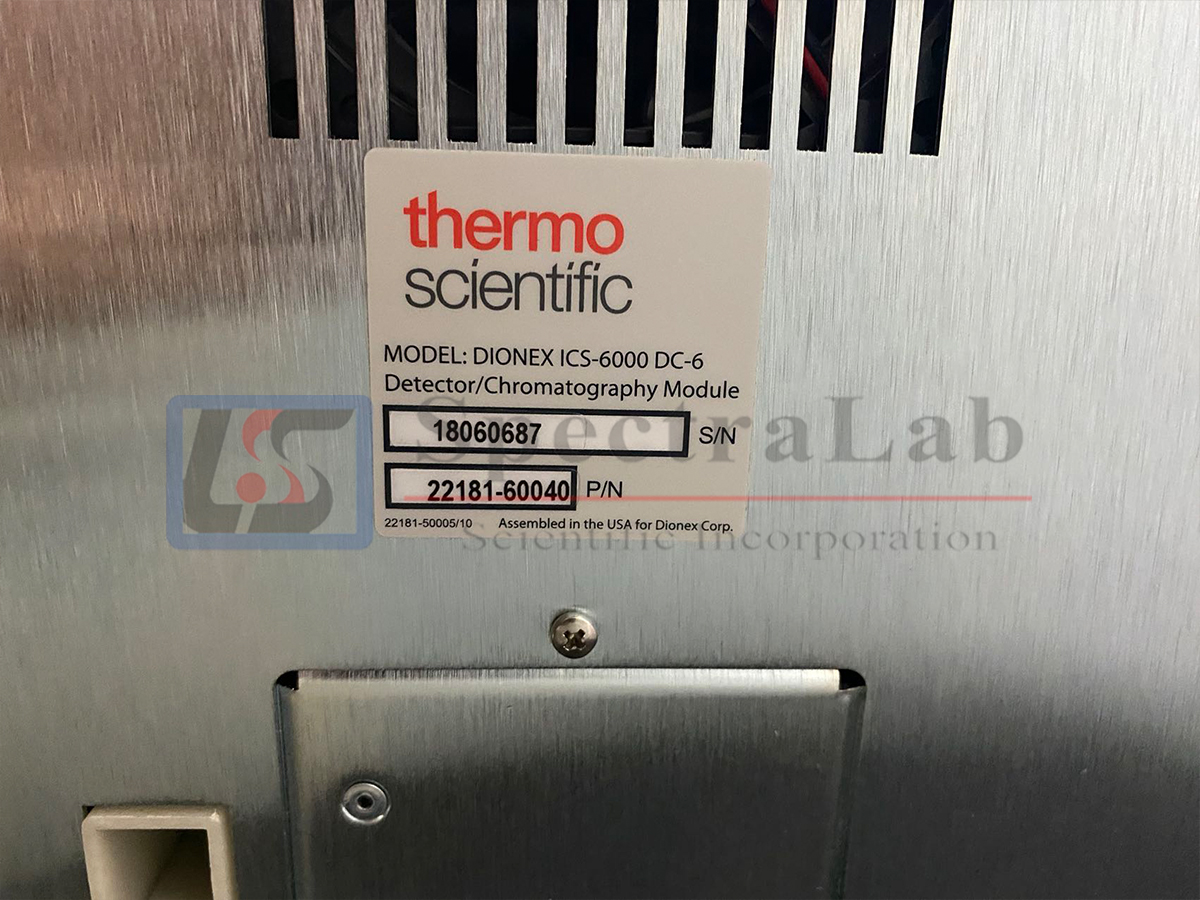

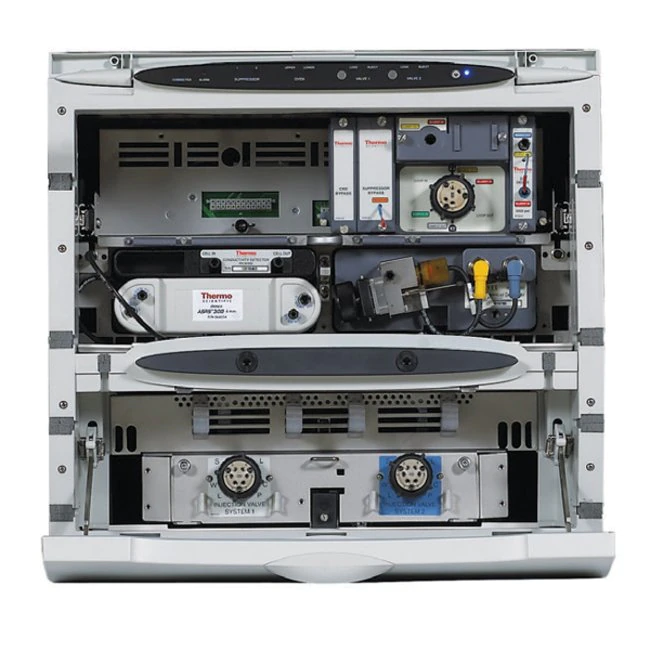

- ICS-6000 DC Detector

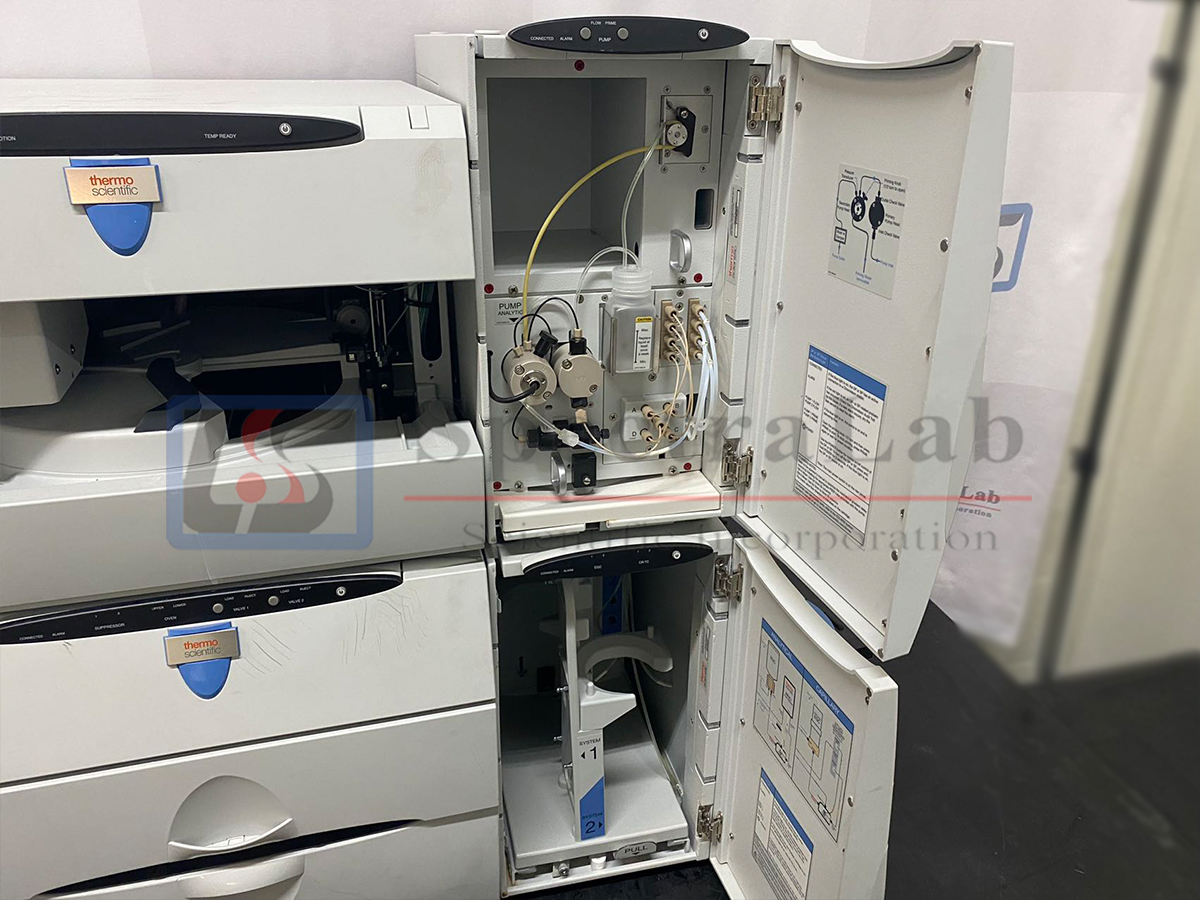

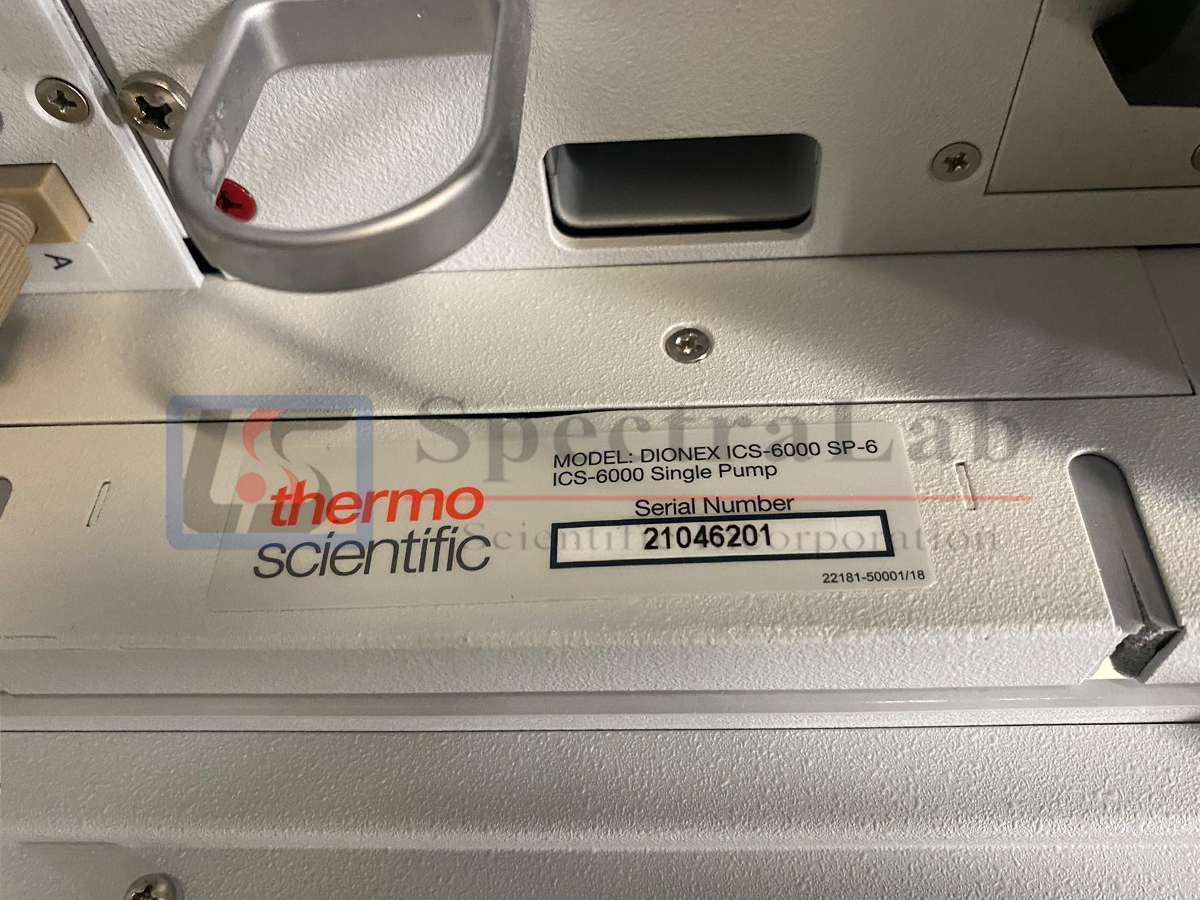

- ICS-6000 SP Single Pump

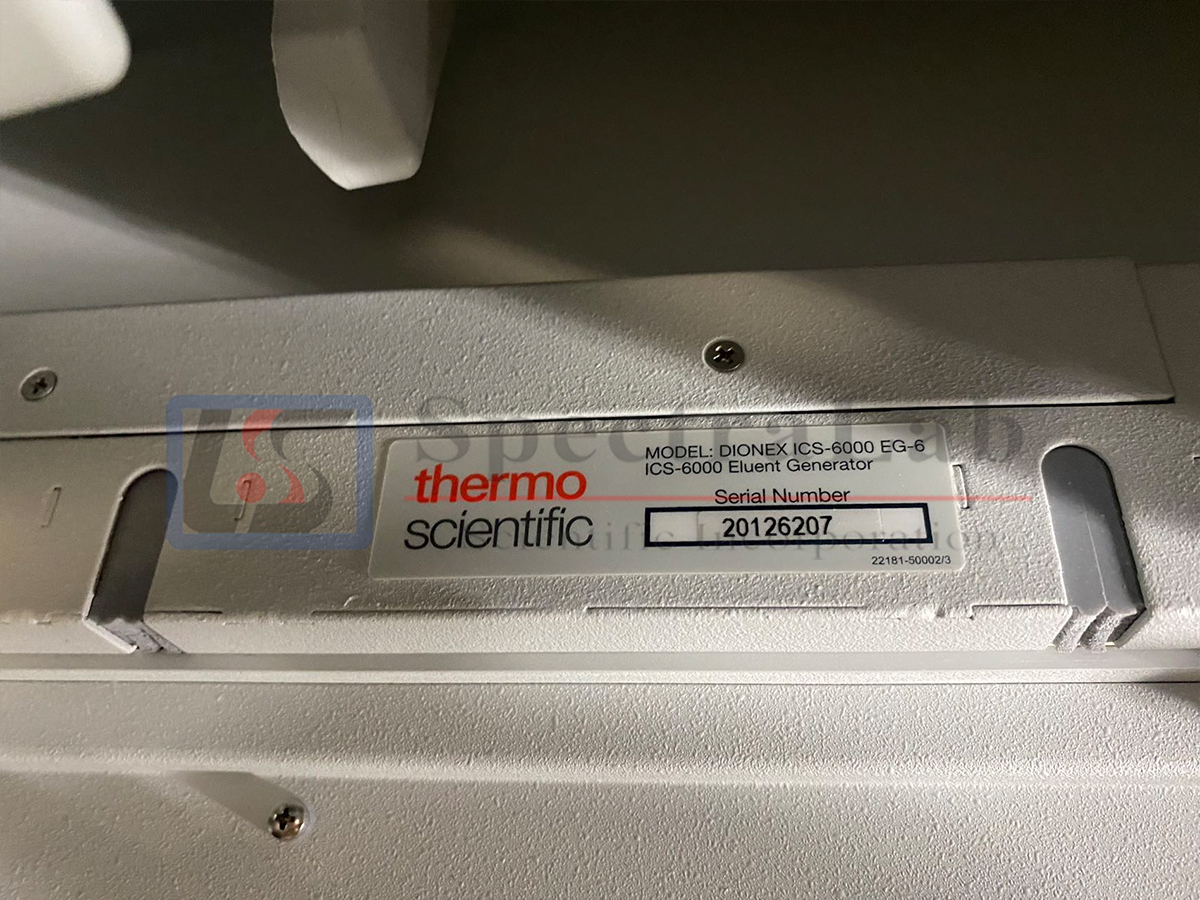

- ICS-6000 EG Eluent Generator

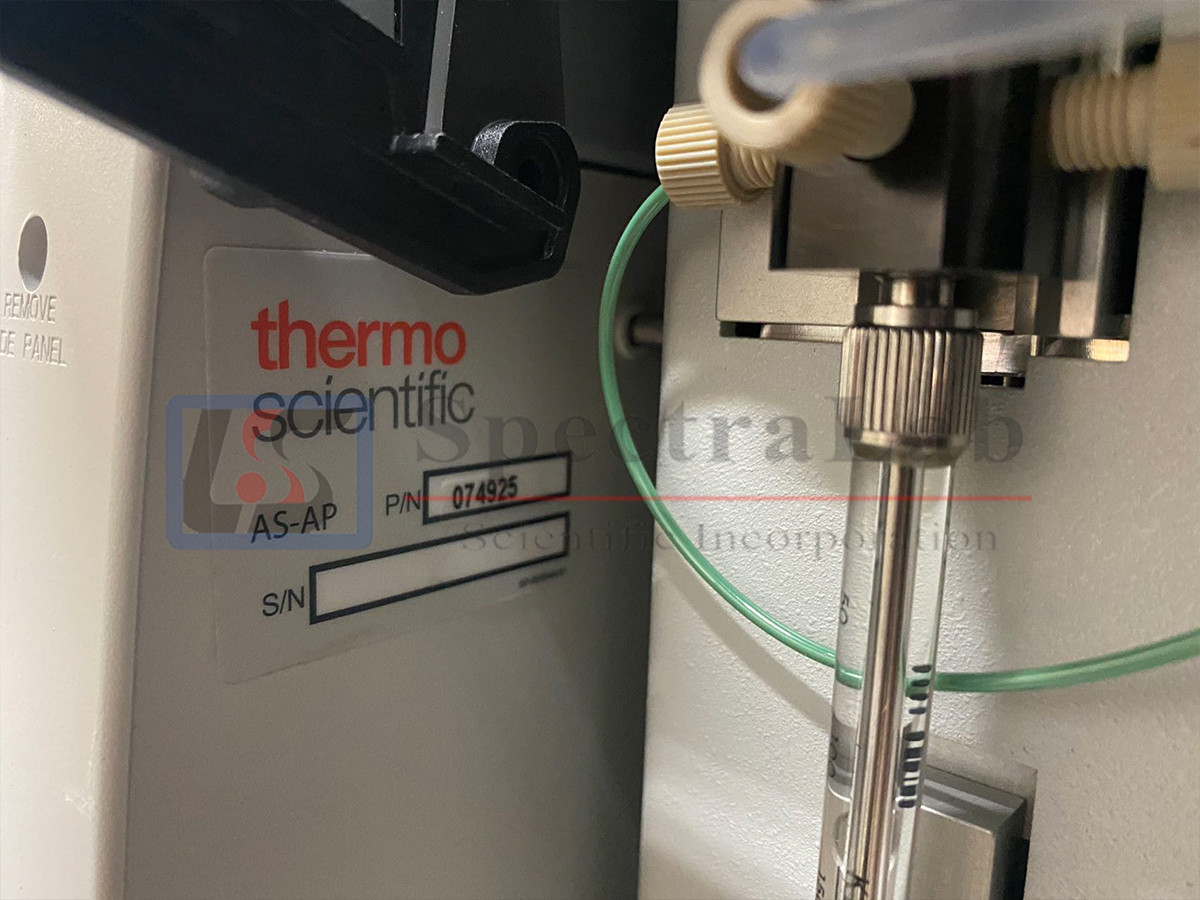

- AS-AP Autosampler
- data system
Description
The modular Thermo Scientific Dionex ICS-6000 HPIC system is a highly configurable ion chromatography (IC) system with capillary ion chromatography capabilities. It enables you to develop and run different methods for a single sample or for different samples simultaneously. The robust design of this system enables operation at up to 5000 psi and produces consistent, reliable results. As a top-of-the-line ion chromatography system, the Dionex ICS-6000 HPIC system is designed to adapt to the needs of users and push the boundaries of what is possible in ion analysis, offering both high pressure and capillary ion exchange chromatography capabilities.
System specifications
The table below provides a brief overview of the Dionex ICS-6000 HPIC system specifications. Not all specifications are listed. For a full list of the specifications, download the Dionex ICS-6000 HPIC system specifications sheet.
| Specification | Dionex ICS-6000 HPIC System |
|---|---|
| Pump | |
| Type | Dual-piston (in series), microprocessor controlled, constant 10 mm primary stroke length, variable speed Isokinetic Eluent Precompression |
| Construction | Chemically inert, metal-free PEEK pump heads and flow path; compatible with aqueous eluents of pH 0–14 and reversed-phase solvents |
| Pressure range | Analytical: 0–35 MPa (0–5000 psi) Capillary: 0–41 MPa (0–6000 psi) |
| Flow rate range | Analytical: 0.000–10.000 mL/min with settable flow increments at 0.001 mL/min, without changing pump heads. Optional heads allow flow up to 22.4 mL/min. Capillary: 0.001–0.100 mL/min flow rate and up to 3.000 mL/min for pump priming mL/min with settable flow increments at 0.0001 mL/min, typical working range of 5–30 µL/min |
| Flow rate precision (analytical & capillary) | < 0.1% |
| Flow accuracy | < 0.1% |
| Pressure ripple | < 1% at 1.0 mL/min/typical, < 0.2% (with damper) at 10 µL/min, < 1.0% (without damper) typical |
| Pressure | None required |
| Piston seal wash | Standard, automatic operation |
| Vacuum degasser (analytical & capillary) | Integrated, optional 1 channel for isocratic pump or 4 channels for quaternary pump |
| Gradient formation (analytical & capillary) | Quaternary low pressure (analytical only) or electrolytic eluent generation at high pressure |
| RFIC-EG gradients | Analytical: 0.1–100 mM Capillary: 0.1–200 mM |
| Gradient profiles | Any combination of an unlimited number of linear, convex, and concave positive and negative gradient profiles |
| Gradient proportioning accuracy and precision (analytical only) | ±0.5 at 2 mL/min |
| Gradient mixing (analytical only) | Passive mixers for 2 mm and 4 mm i.d. columns, optional |
| Eluent generation (analytical & capillary) | Optional eluent generation (RFIC-EG) |
| Eluent on/off valve | Electrically actuated, standard |
| Leak sensor | Optical, standard |
| System software | |
| Software | Chromeleon 7.2 CDS software, supports Microsoft® Windows® 7, operating systems |
| Automated procedure wizards | Standard feature |
| System smart startup and shutdown | Standard feature |
| Application templates | Standard feature |
| Automation support of 3rd party instruments | Fully controls over 300 different instruments from more than 30 manufacturers, including GC, HPLC, and MS |
| Customizable system control panels | Standard feature |
| Signal channels | Pump pressure |
| Data trending plots | All numerical device parameters |
| System status virtual channels | Standard feature |
| Power failure protection | Standard feature |
| System trigger commands and conditionals | Standard feature |
| Daily audit trail | Standard feature |
| Sample audit trail | Standard feature |
| System calibration storage | Factory, present and previous. Completely user selectable |
| Customized reporting | Standard feature with unlimited report sheets |
| GLP compliance | Optional |
| Physical specifications | |
| Dimensions (h × w × d) | 41 × 23 × 56 cm (16 × 8.75 × 21.5 in.) |
| Weight | SP: 20.4 kg (45 lb) — DP: 24.1 (55 lb) |
| Power requirements | 90–265 V ac, 47–63 Hz |
| Flow path | All polymeric (PEEK), anion or cation configuration |
