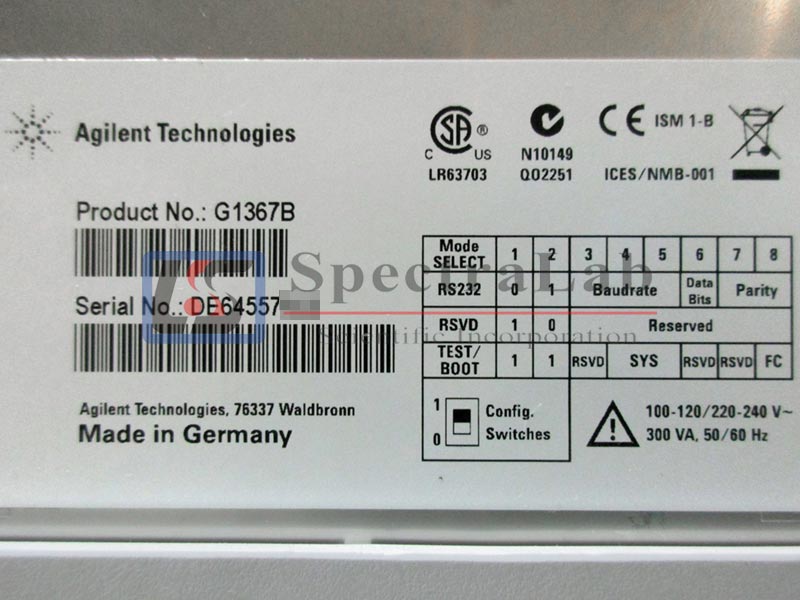

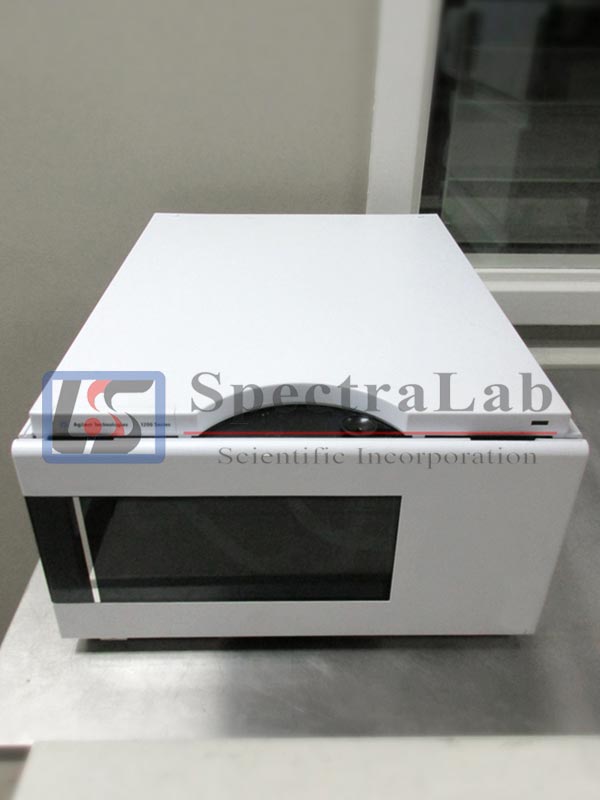

Agilent 1200 HPLC G1367B High Performance Autosampler DE64557XXX

Type

Specification

GLP features

Early maintenance feedback (EMF), electronic records of maintenance and errors

Communications

Controller-area network (CAN). RS232C, APG-remote standard, optional four external contact closures and BCD vial number output

Safety features

Leak detection and safe leak handling, low voltages in maintenance areas, error detection and display

Injection range

0.1 – 100 µl in 0.1 µl increments Up to 1500 µl with multiple draw (hardware modification required)

Precision

Typically < 0.25% RSD from 5 – 100 µl, Typically < 1% RSD from 1 – 5 µl variable volume

Pressure range

400 bar (5880 psi)

Sample viscosity range

0.2 – 5 cp

Sample capacity

2 × well plates (MTP) + 10 × 2 ml vials 108 x 2-mL vials in2 x 54 vial plate plus 10 additional 2 mL vials 30 x 6-mL vials in 2 x 15 vial plate plus 10 additional 2 mL vials54 Eppendorf tubes (0.5/1.5/2.0mL) in 2 x 27 Eppendorf tube plate

Also compatible with the Agilent 1200 Series sample capacity extension for further expansion of the sample capacity

Injection cycle time

Typically < 30 s using following standard conditions: Default draw speed: 200 µl/min Default eject speed: 200 µl/min Injection volume: 5 µl

Carry-over

Typically < 0.01% using the following conditions: Column: 125 x 4 mm Hypersil ODS, 5 µm Mobile phase: Water/Acetonitrile = 80/20 Flow rate: 1 ml/min Injection volume: 1 µl caffeine (1 mg/ml), 5 µl water to test carryover Outside wash of needle before injection: 20 sec with water using flush port
