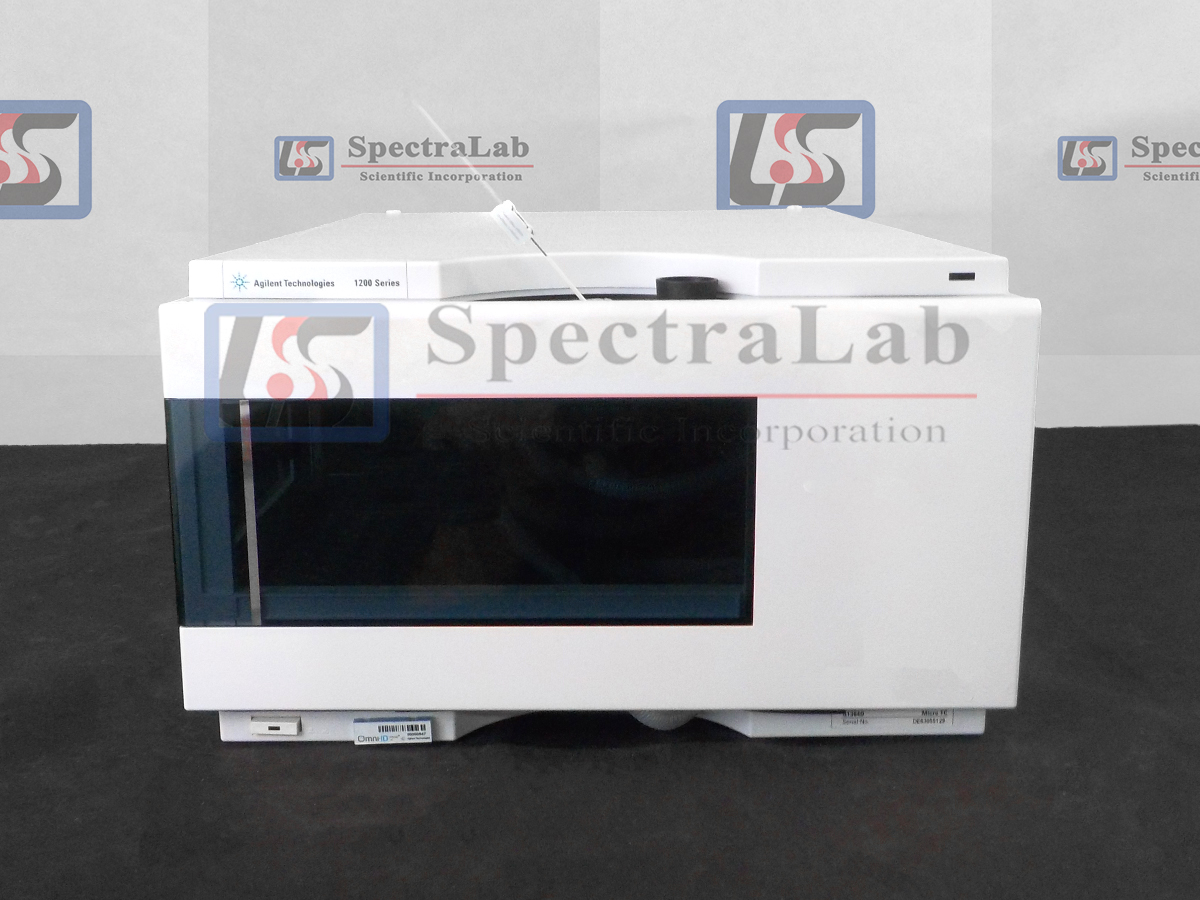

This Agilent 1200 Series G1364D HPLC Micro Fraction Collector is used for preparative scale applications. It has been tested at Spectralab and is in good shape.
S/N: DE63055129
Specifications:
| Type | Specifications |
|---|---|
| trigger modes | Time slices,
Peak (threshold, up- /downslope), Timetable (combination of time intervals and peak) and Agilent 1200 UV-Vis detectors DAD G1315A/B, MWD G1365 A/B are fully supported. Other detectors with appropriate delay volumes can be connected through UIB interface. |
| Operating modes | Above location

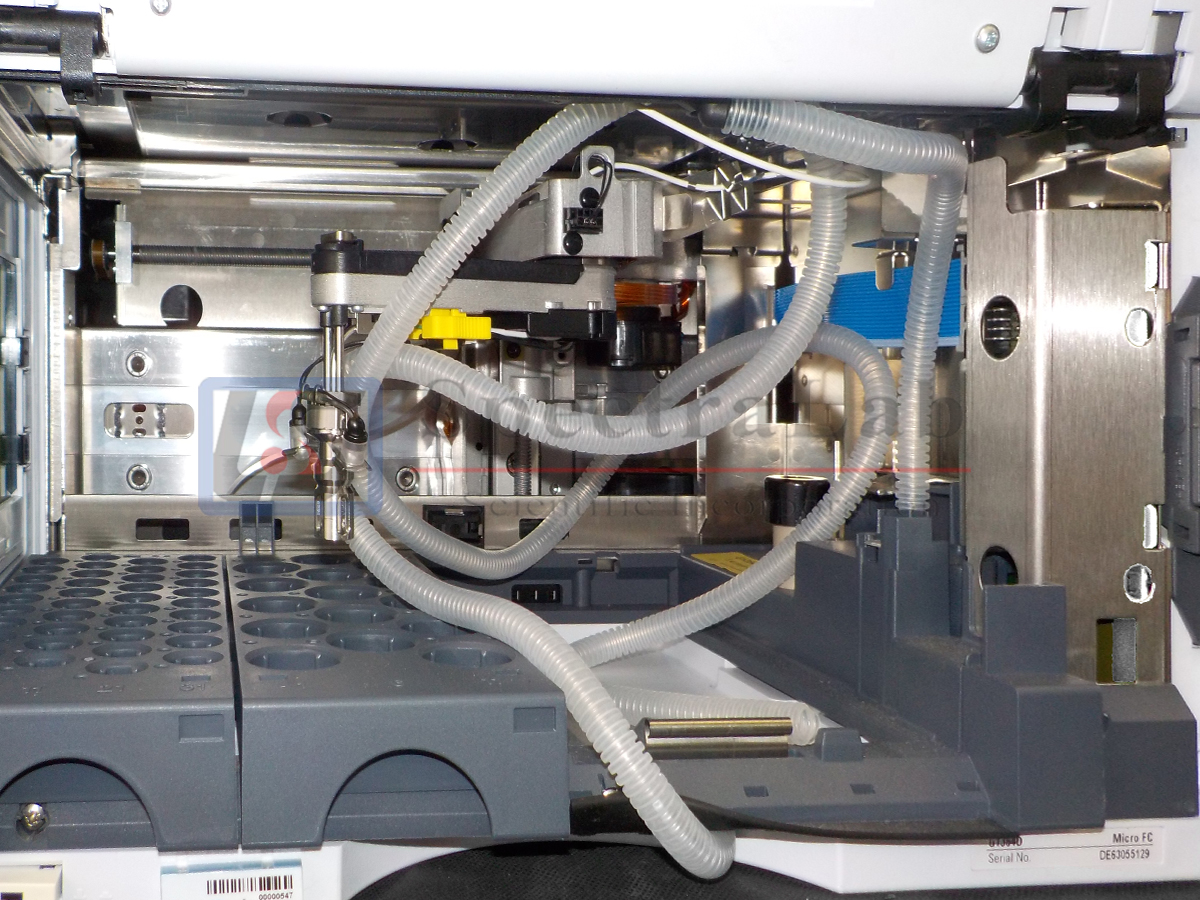

Into location Liquid Contact Control: The tip of the fraction collector capillary will initially move down to the bottom of the well. Then it will slowly move upwards while the fraction is collected. The contact control mode enables the micro collector/spotter to collect fractions down to 2μl in well plates or MALDI spots down to 100 nl |
| fraction vessel capacities and trays | •4 well-plates full tray (MTP)
with: 384 or 96-well plates (standard and conical shape) or 4 x 27, Eppendorf tubes (0.5, 1.5, 2.0 ml), MALDI Target Plates. •2 × well-plates std. tray (MTP) + 10 × 2 ml vials(+ 1 half tray) with: 384 or 96-well plates (standard and conical shape) or 2x 27 eppendorf tubes (0.5, 1.5, 2.0 ml) |
| MALDI Spotting plates(pre-configured) | •96 Agilent plate for AP-MALDI
•100 Applied Biosystems, 2×96 Applied Biosystems, 192 Applied Biosystems, 400 Perseptive Biosystems •Micromass 80/96 spots •Bruker Anchor Chips 384/1536 spots |
| MALDI Plate Capacity | 4 (3 for Bruker Anchor Chip 1536) |
| Minimum fraction volume | Typically 2μl (depending on the fraction collection container) |
| MALDI spot size | 100-5000 nl (depending on the MALDI plate) |
| Maximum spotting rate | 20 spots/min (1spot/3s) |
| Maximum flow rate | 100 μl/min |
| delay volumes [μl] | 25 μm ID fraction collector capillary: ~0.2550 μm ID fraction collector capillary: ~1100 μm ID fraction collector capillary: ~5 |
| Cooling | Recommended (with additional G1330B) |
| Maximum capacity | 2 micro collector/spotter connected via 2-Position, 6-Port micro valve (G1162A) |
| GLP features | Early maintenance feedback (EMF), electronic records of maintenance and errors |

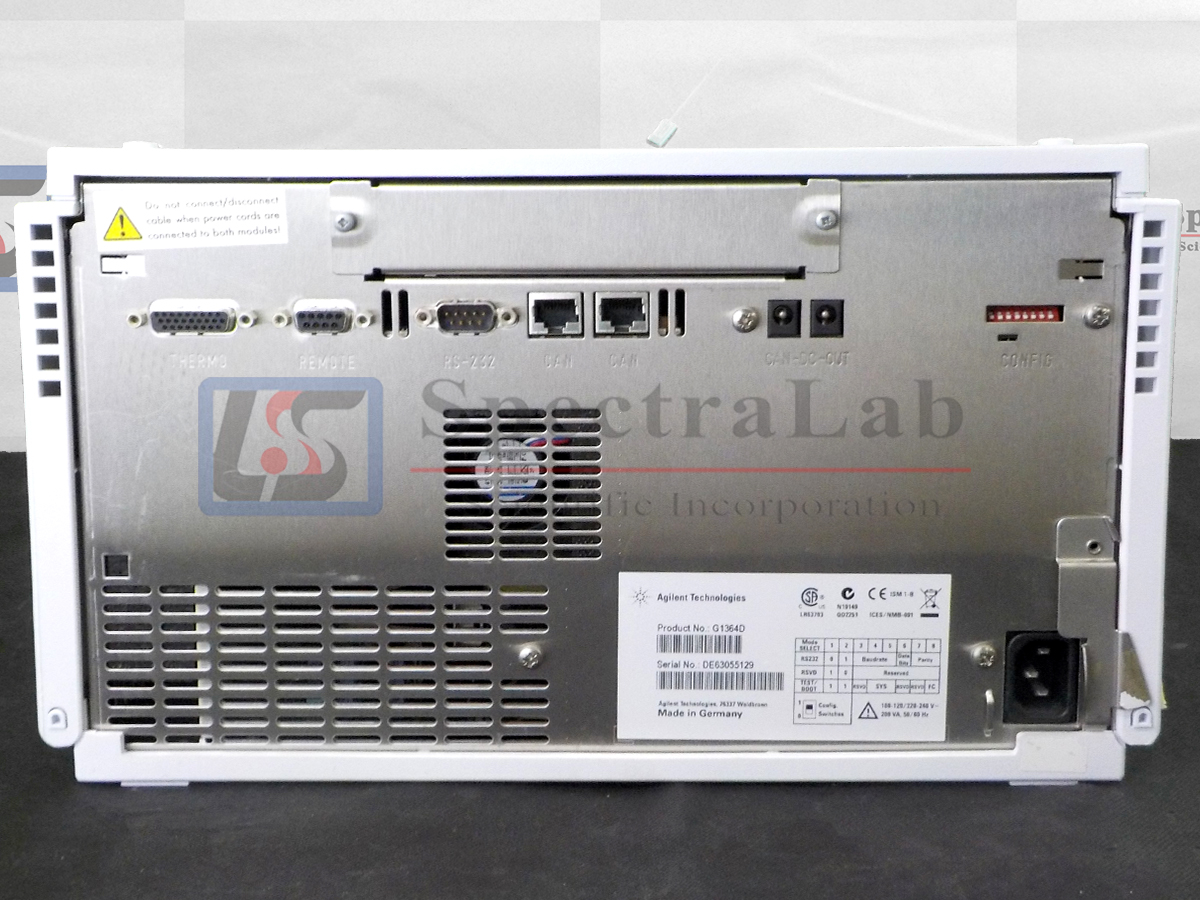

| Interfaces | – Controller-area network (CAN).
– optional; LAN or external contacts interface – RS232C, – APG-remote (for remote start / stop signals to / from other modules) – Interface to G1330A Thermostat – CAN-DC-out for operation of Agilent approved external devices like valves |
