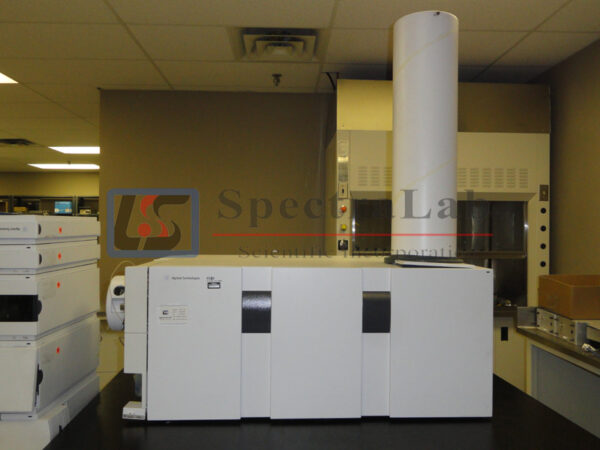

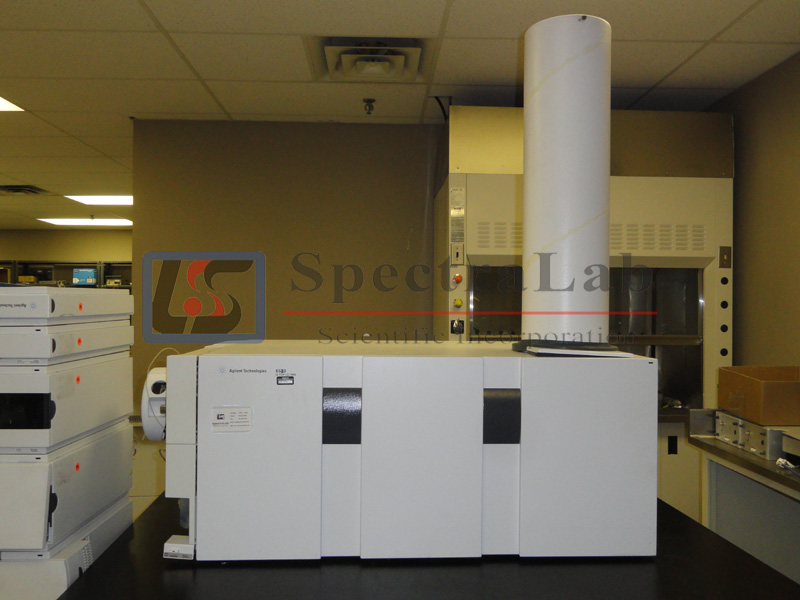

Agilent 6520 Accurate-Mass Q-TOF LC/MS G6520B

The Agilent 6520B Q-TOF LC/MS is a liquid chromatograph-quadrupole time-of-flight mass spectrometer that performs MS/MS using a quadrupole, a hexapole collision cell and a time-of-flight analyzer to produce spectra. The quadrupole selects precursor ions that are fragmented in the collision cell into product ions, which are then impelled to the detector, at an angle perpendicular to the original path.

The Agilent 6520 Q-TOF has industry-leading performance in the most important categories:

• Attomole sensitivity
• Better than 2-ppm MS mass accuracy — approaching FTMS mass accuracy
• Better than 5-ppm MS/MS mass accuracy — much better than FTMS mass accuracy at fast spectral acquisition rate
• Tenfold improvement in in-spectra dynamic range without loss of sensitivity
• Mass resolution to 20,000 — not dependent on spectral acquisition rate
• Fast data acquisition ( = 10 MS/MS spectra/sec) compatible with fast LC chromatography
• Broad mass range from m/z 25 to 20,000
