This set includes:

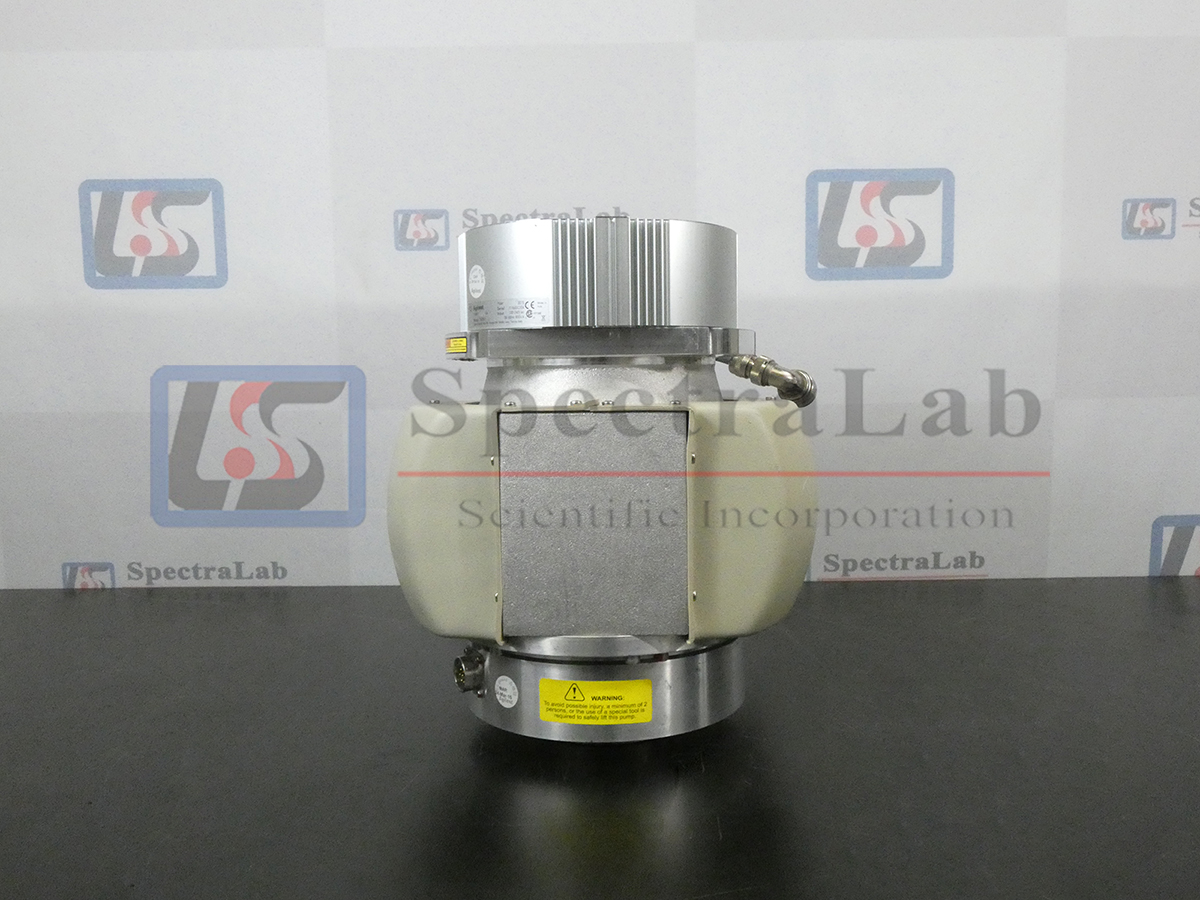

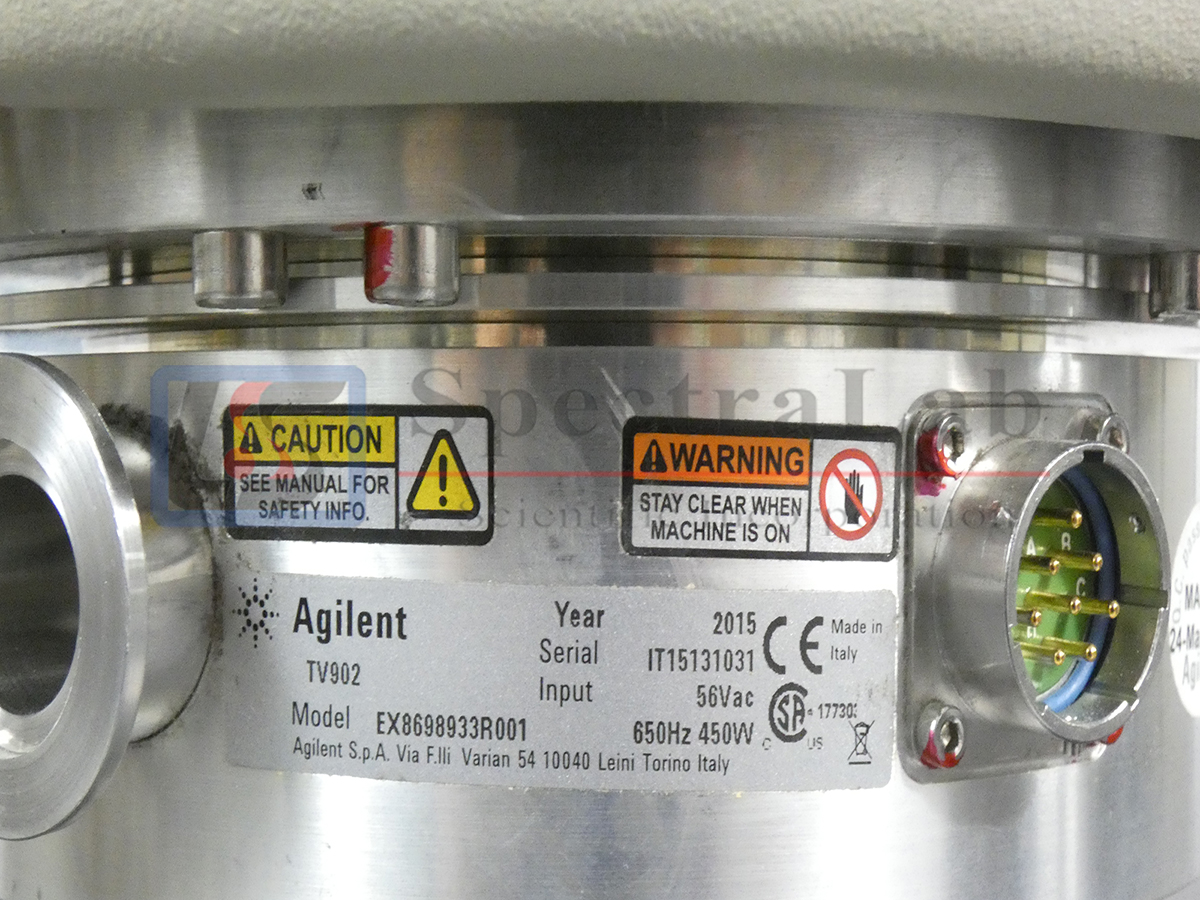

- (1) Agilent TV902 Turbo Vacuum Pump (Model No. EX8698933R001)

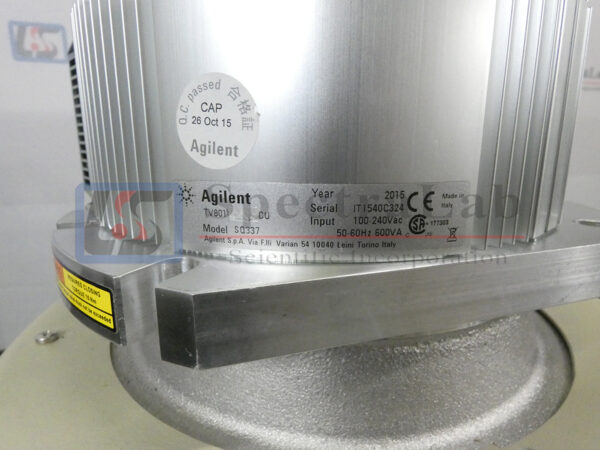

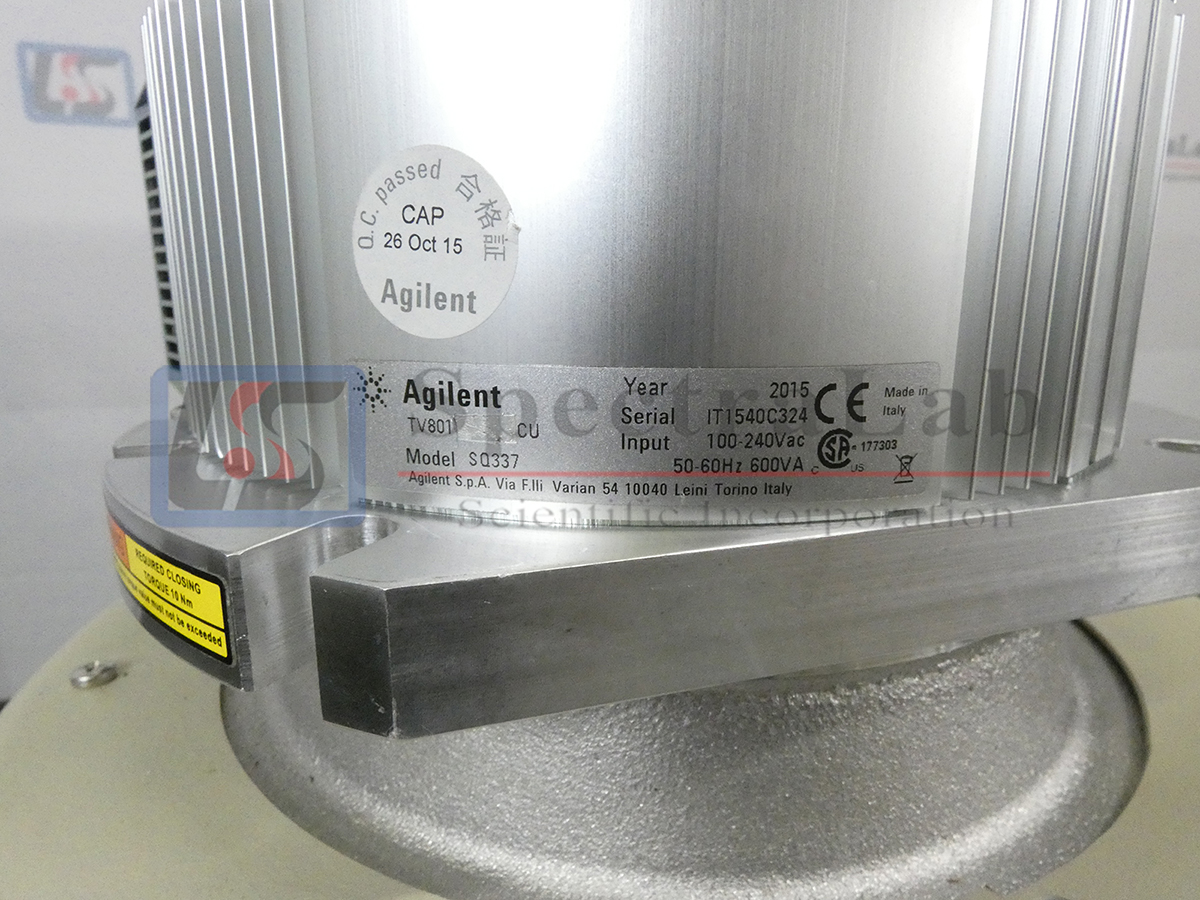

- (1) Agilent TV801 Control Unit (Model No. SQ337)

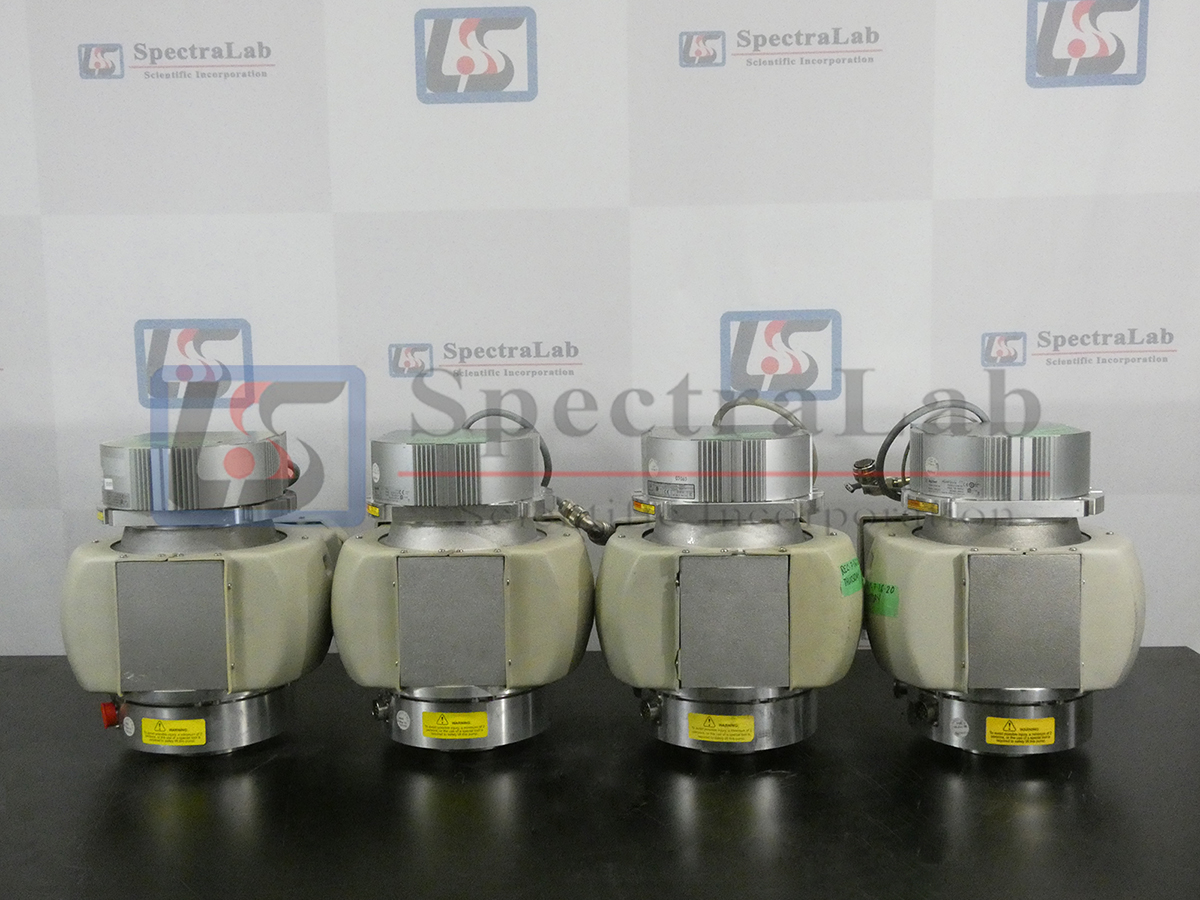

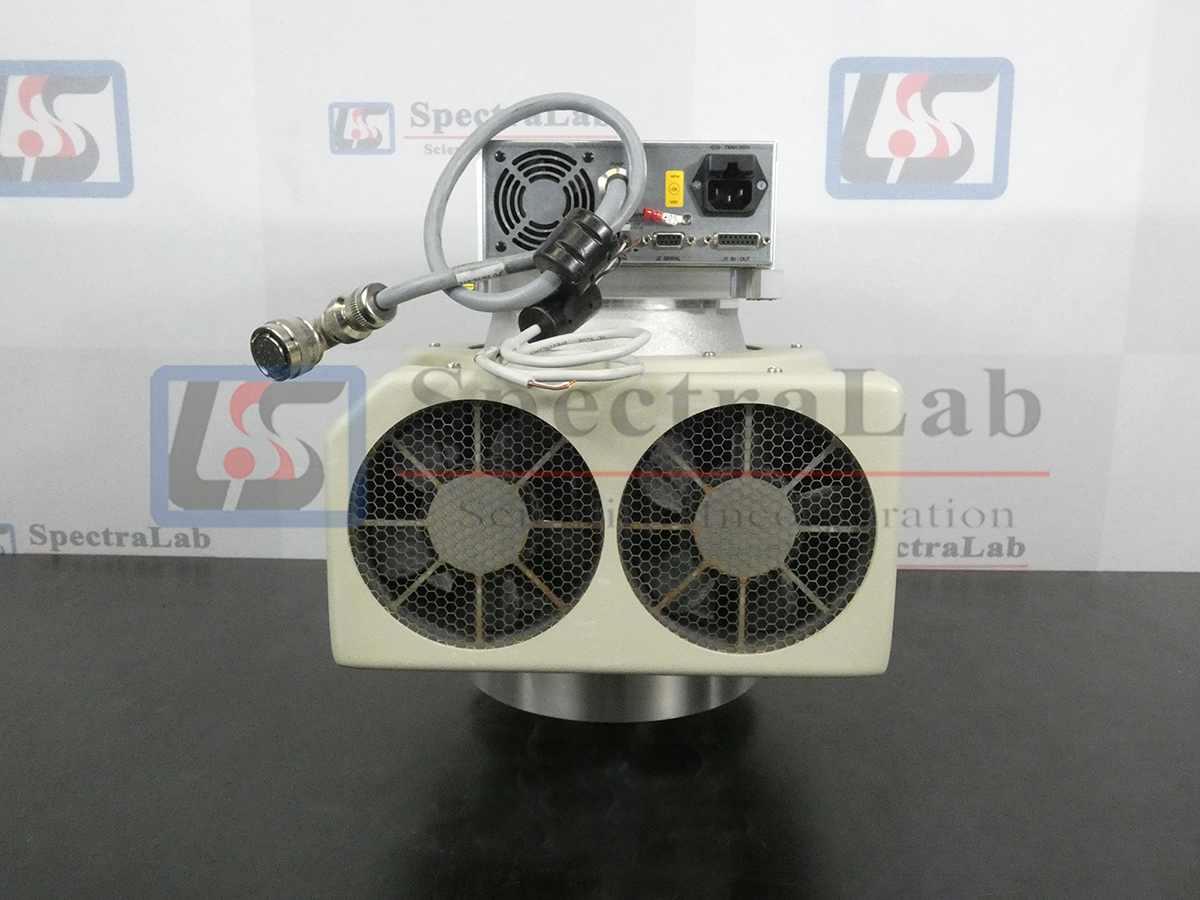

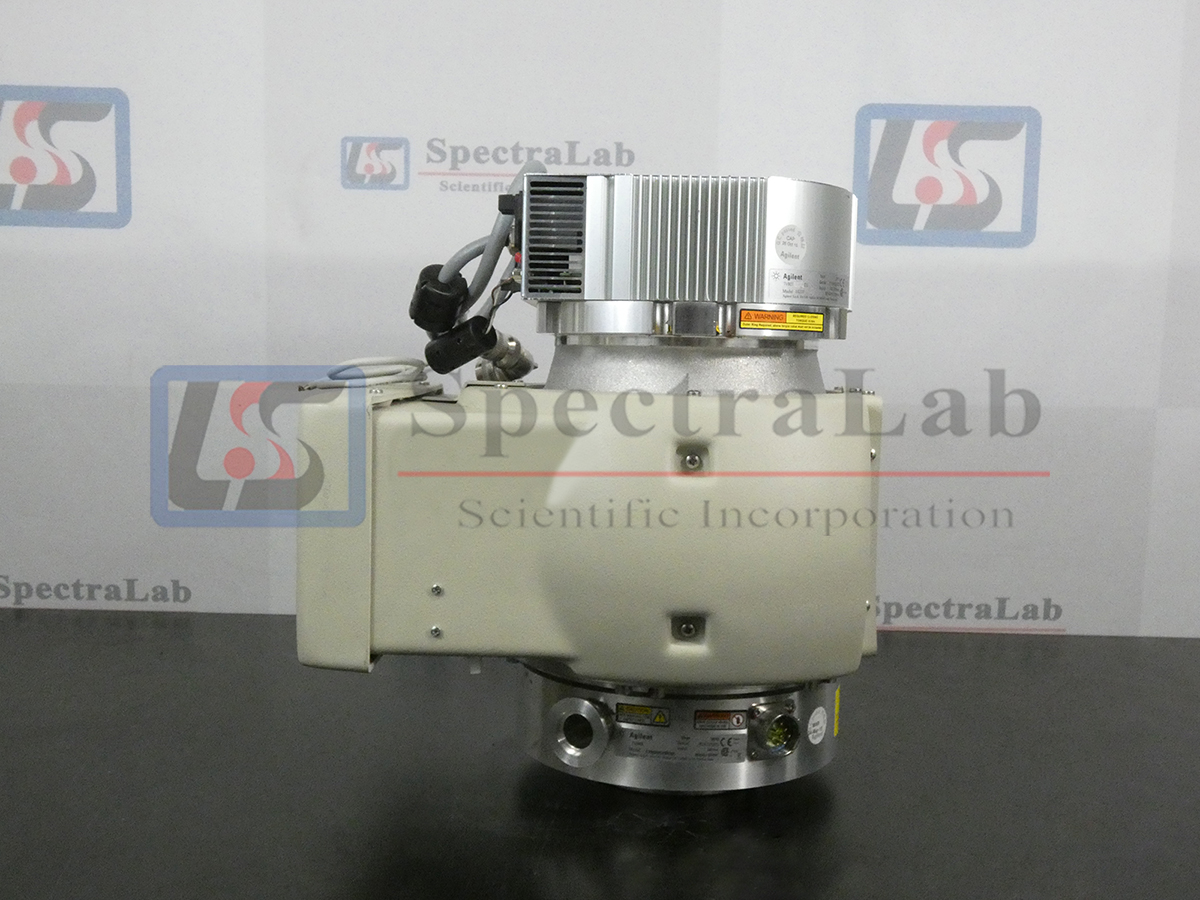

The Agilent TV 902 Navigator is composed by a pump (869-8933R001) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337). The pump is equipped with a custom ISO 160 F high vacuum flange. 4 pumps are available.
The Agilent TV902 Turbo Vacuum Pump is capable of operating at high foreline pressures because of the high speed to compression ratio. These pumps have silicon nitride, ceramic bearings.
Specifications:
| Pumping speed (l/s) | N2: 680 l/s, He: 810 l/s, H2: 850 l/s |
| Compression ratio | N2: > 1 x 108, He: 1 x 105, H2: 1 x 104 |
| Base pressure | < 1 x 10-9 mbar
w/ recommended diaphragm fore pump: (< 1 x 10-9 Torr) (According to standard DIN 28 428, the base pressure is that measured in a leak-free test dome, 48 hours after the completion of test dome bake-out, with a turbopump fitted with a conflat flange and using the recommended pre-vacuum pump) |
| Inlet flange | custom ISO-160F |
| Foreline flange | KF-25 |
| Rotational speed | 38,000 rpm |
| Start-up time | < 4 minutes |
| Recommended forepump | DS-402, TriScroll 300 |
| Operating position | Any |
| Cooling requirements | Forced air |
| Operating ambient temperature | + 10°C to + 35°C |
| Bakeout temperature | 120°C at inlet CF flange maximum 80°C with ISO flange |
| Vibration level (displacement) | < 0.01 μm at inlet flange |
| Lubricant | permanent lubrication |
| Noise level | < 55 dB(A) at 1 meter |
| Power supply
Input voltage Input freq. Max input power Stand-by power Max operating power |
100 – 240 VAC (± 10%)
50 – 60 Hz 600 VA 30 to 35 W 320 W with forced air |
| Protection fuse | 1 x 8 A |
| Compliance with | UNI EN 292-1
UNI EN 292-2 EN-CENELEC 55011 IEC 1000-4-2 (ex 801-2) IEC 1000-4-3 (ex 801-3) IEC 1000-4-4 (ex 801-4) EN 61010-1 (IEC 1010-1) EN 1012-2 |
| Power cable | w/ European or NEMA plug 3 meters long (optional) |
| Serial communication (Navigator kit) | RS 232 cable with a 9-pin D type male connector and a 9-pin D type female connector, and Navigator software (optional) |
| Installation category | II |
| Pollution degree | 2 |
| Storage temperature | – 20°C to + 70°C |
| Weight kg (lbs)
Pump Controller |
23.5 (51.8)
5.4 (12) |
