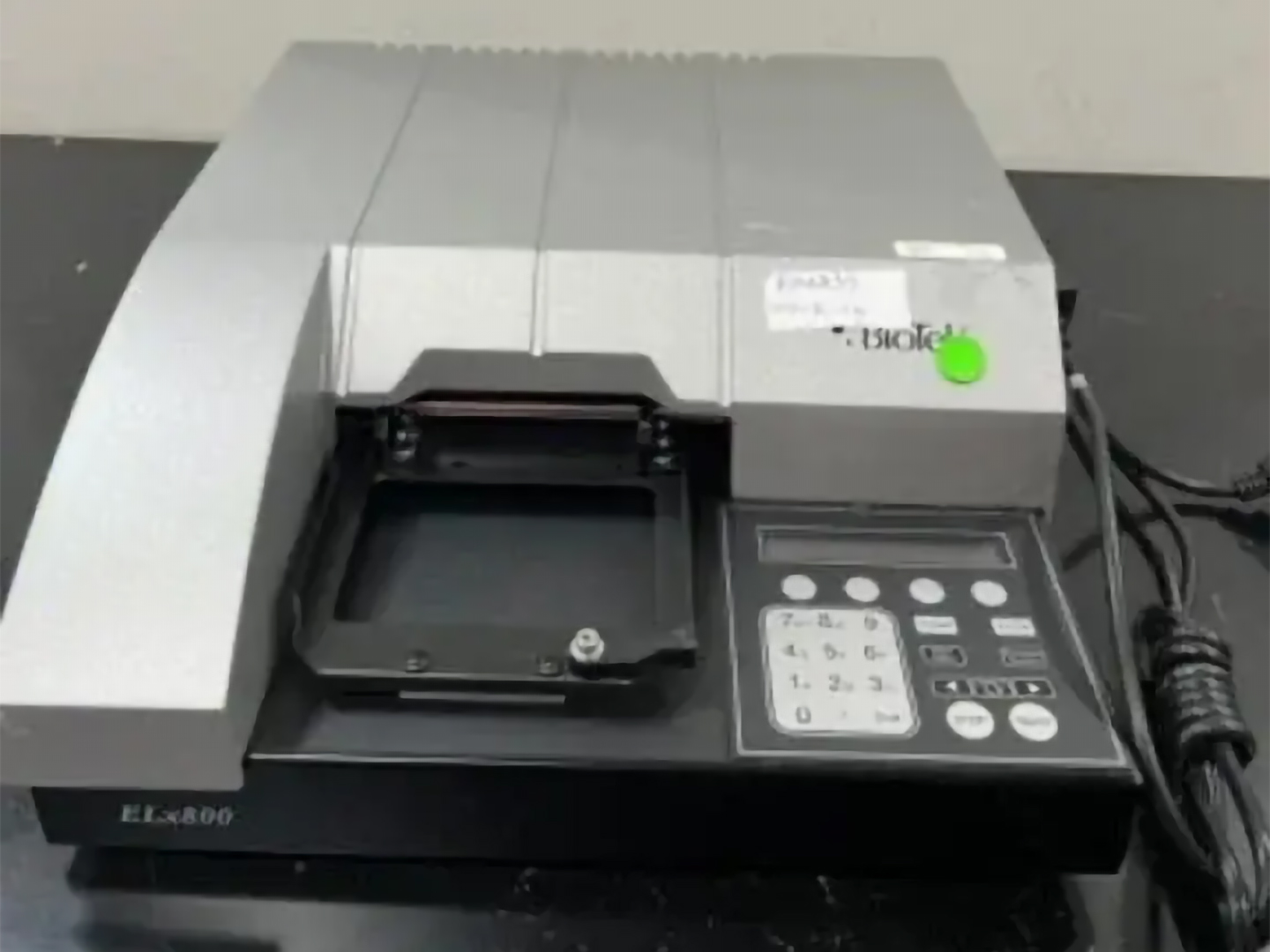

Bio-TEK ELX800 Microplate Reader

Bio-TEK ELX800 Microplate Reader

The ELX800 microplate readers feature on board data reduction and reporting. Reads 6-, 12-, 24–, 48-, and 96-well plate microplates. The model 13055-52 can read 384-well and 60-, 72- and 96-well Terasaki plates. Wavelength range from 400 to 750nm. Model 13055-54 optics to extend wavelength range down to 340nm.

Microplate readers feature a 2×24-character LCD and convenient soft-keys. Extensive curve fitting options include linear, cubic, quadratic, 4-p, log-logit, cubicspline, and point-to-point. Memory stores 25 standard curves and up to 8 microplate test results. Features auto or manual plate layout for blanks, controls, standards, and samples. Also offers control and assay validation, transformation and formula applications, and cutoff and call criteria.

Onboard software is easy to program to run sophisticated assays and analyzed without the need of computers. Additional software 13055-56 offers easy user interface with flexible data manipulation and curve fitting for basic endpoint, kinetic, multi-wavelength and spectral scan requirements. Software package includes software on CD, and three user licenses. What’s included: 340 (13055-54 only), 405, 450, 490, 630nm filters, dust cover, parallel printer cable (25-pin male and 36-pin male), serial cable (null modem, 9-pin female to 25-pin female), operator’s manual. Additional filters are available range from 304 to 750nm.
