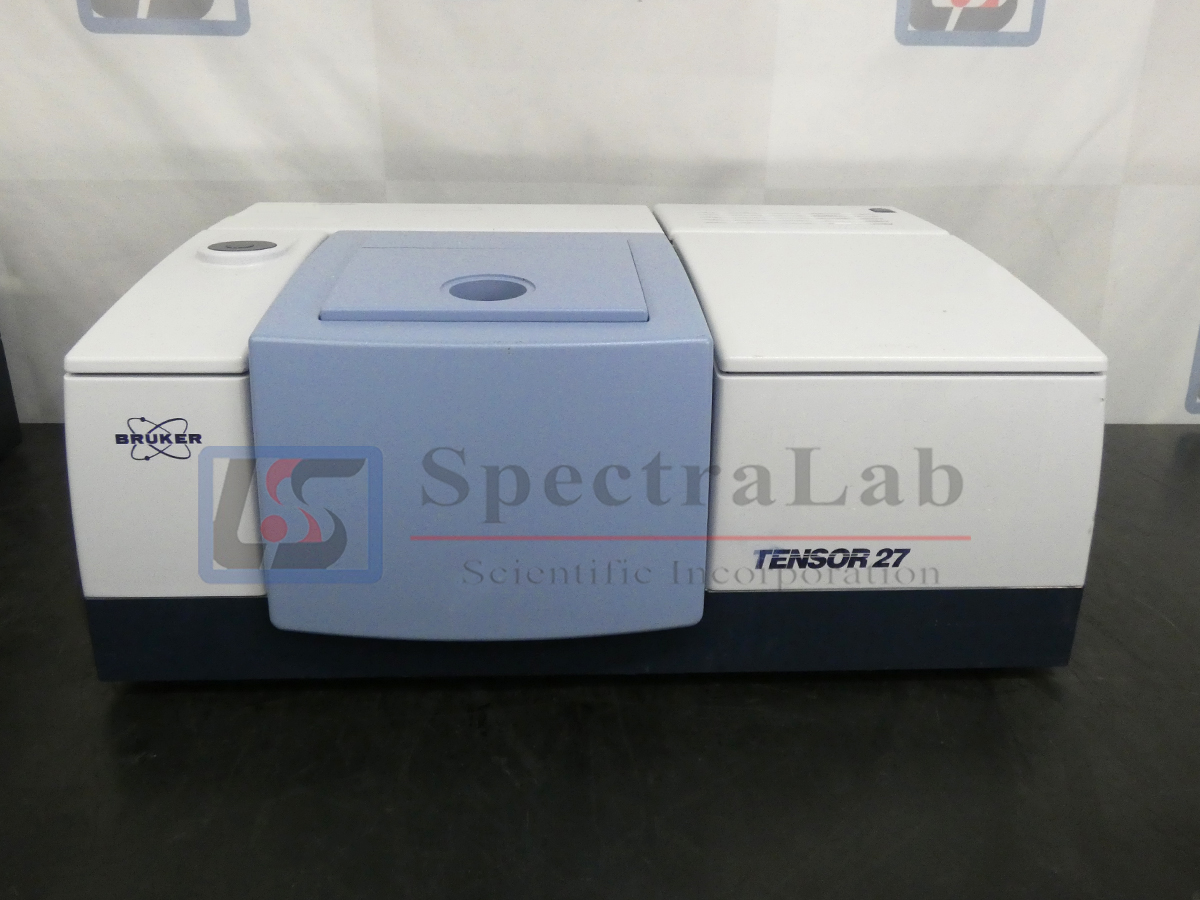

Bruker Tensor 27 FT-IR Spectrometer

If you need a FT-IR spectrometer that can rapidly identify, quantify and verify your routine samples, TENSOR is the right tool for you.

Specifications:

Spectral Range 7,500 to 370 cm-1 , with standard KBr beamsplitter

10,000 to 400 cm-1 , optional, with broadband KBr beamsplitter

5,000 to 200 cm-1 , optional with CsI optics

6,000 to 500 cm-1 , optional with “High Humidity” ZnSe optics

Resolution Better than 1 cm-1 (apodized), optional better than 0.5 cm-1 (apodized)

Wavenumber Accuracy Better than 0.01 cm-1 @ 2,000 cm-1

Photometric Accuracy Better than 0.1% T

Signal-to-Noise (Minimum) 5 Sec: >6,000:1 (= <7.2*10-5AU noise) peak-to-peak, 4 cm-1 resolution Signal-to-Noise (Achievable) 5 Sec: >8,000:1 (= <5.4*10-5AU noise) peak-to-peak, 4 cm-1 resolution1 Min: >45,000:1 (= <9.7*10-6AU noise) peak-to-peak, 4 cm-1 resolution

Interferometer RockSolid, Permanent aligned, high stability

Scan Speed 3 velocities, 2.2 – 20 kHz (1.4 – 12.7 mm/sec opd),

optional 4 velocities, 2.2 – 40 kHz (1.4 – 25.5 mm/sec opd)

Detector DigiTectTMdetector system, High sensitivity DLATGS,

optional LN2cooled MCT detector, easy exchange

A/D Converter 24 bit

Validation IVU internal validation unit

Spectrometer Size 66.5(W) x 43.4(D) x 28.1(H) cm

Sample Compartment Size 25.5(W) x 27(D) x 16(H) cm

Weight 37 Kg

Spectrometer Power 85 – 265 VAC, 45 – 67 Hz, 70 W

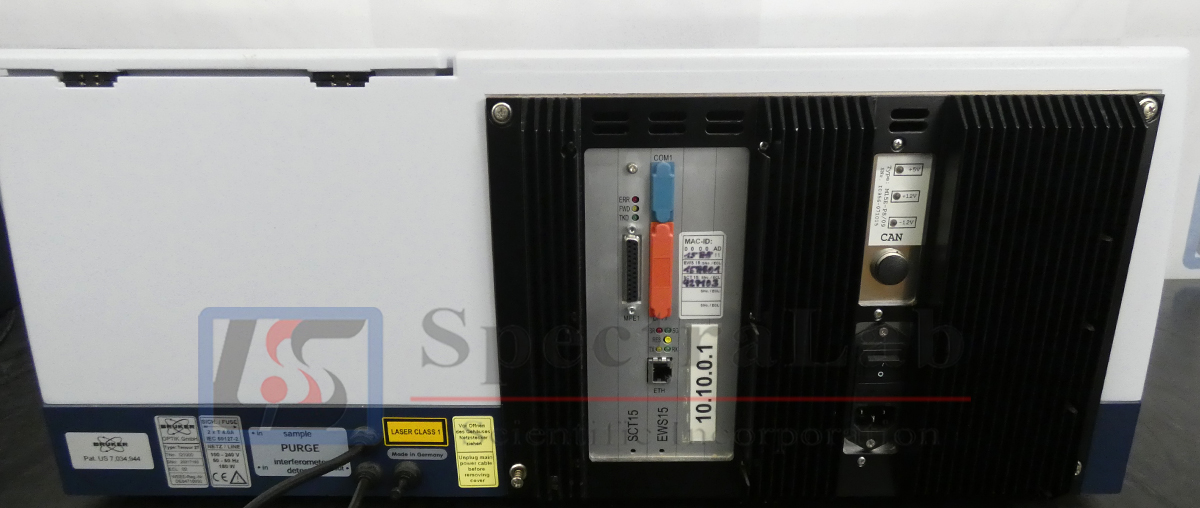

Computer Interface Ethernet connection

Spectroscopy Software OPUS: easy to use, full GLP compliant, full 21 CFR part 11 compliant
