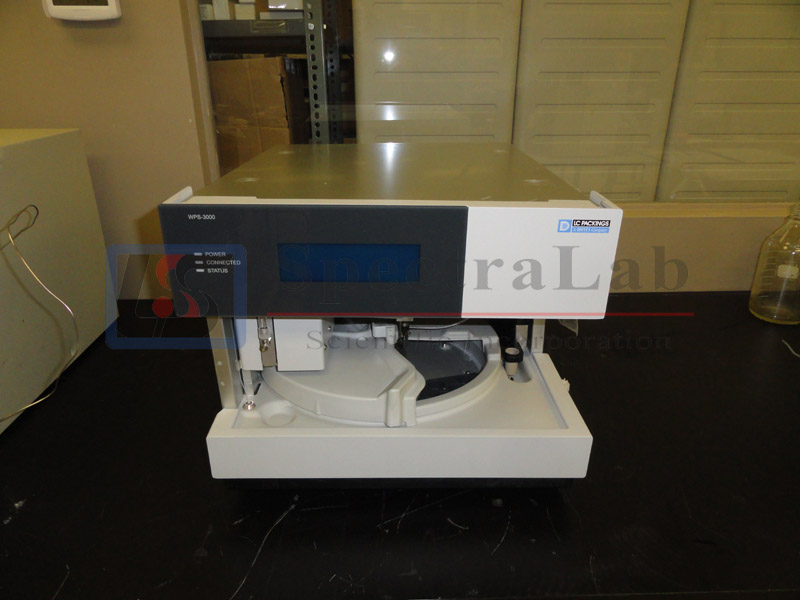

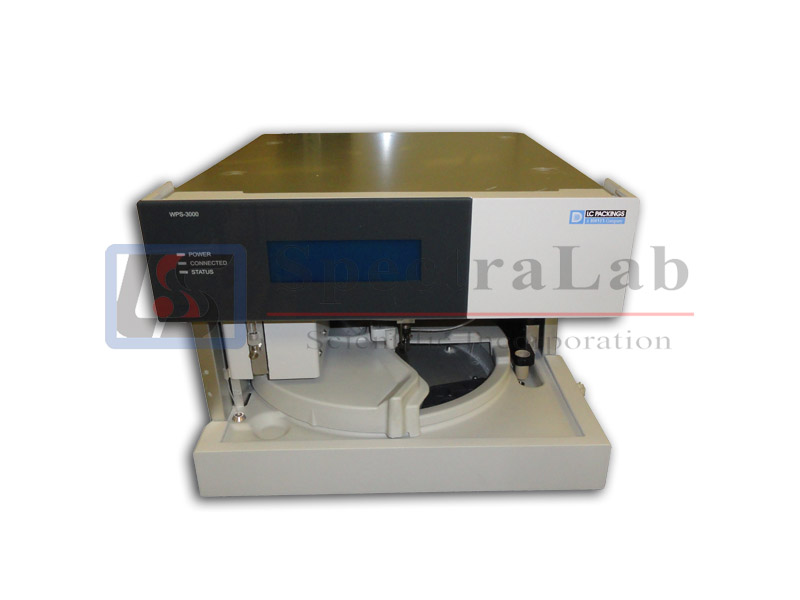

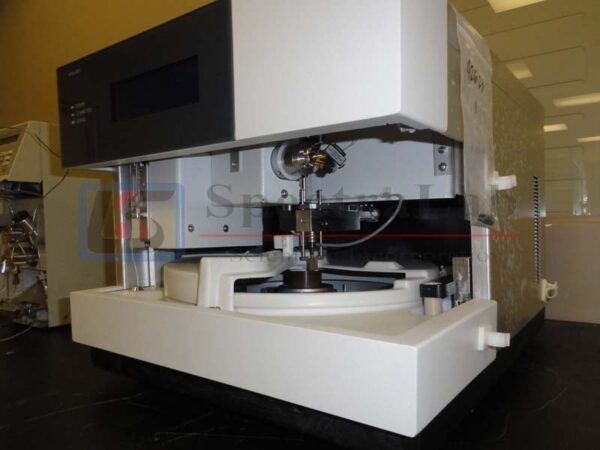

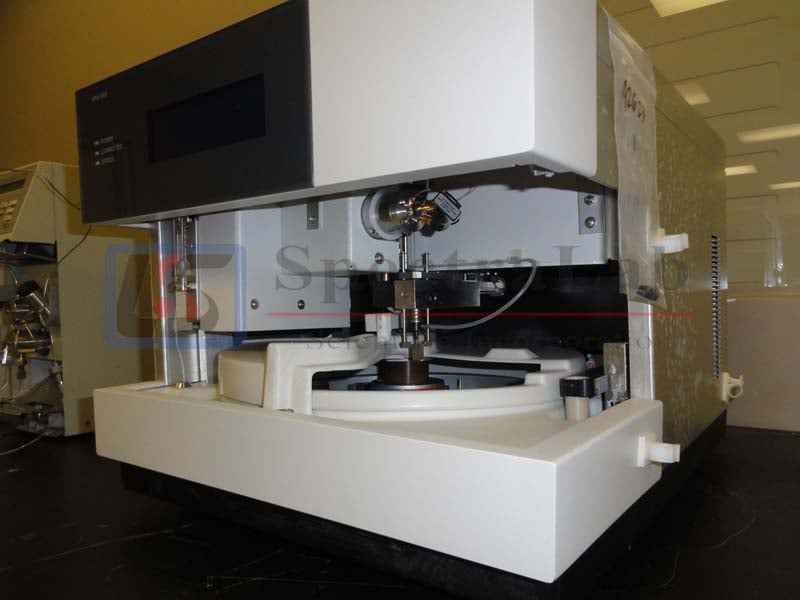

Dionex Ultimate 3000 Series Thermostatted Autosampler WPS-3000T

Analytical Autosampler Specifications

Sample capacity

216 × 0.3 mL vials,

120 × 1.1 mL conical vials,

216 × 1.2 mL vials,

120 × 1.8 mL/2.0 mL vials,

66 × 4 mL vials,

30 × 10 mL vials,

3 x 24 deep well plates, 96 and/or 384 normal or deep well plates,

3 x 40 0.5 mL and/or 1.5 mL Eppendorf tubes, and/or 3 x 384 low well PCR plates

+ 15 × 10 mL vials (depending on sample tray configuration)

Injection methods

Pull loop

Injection volume range

(recommended)

0.01–100 µL  (1–100 µL)

Optional: 0.2–25 µL, 1.5–250 µL, 1.5–500 µL

Injection volume accuracy

±0.5% at 50 and 90 µL

Minimum sample required

1 μL out of 5 μL (250 μL conical vial)

Injection volume precision

<0.25% RSD at 5 μL (typically < 0.15% RSD),

caffeine in water

Linearity

Corr. coeff. >0.9999, RSD <0.5% at 5–90 μL, caffeine in water

Needle wash

Active external needle wash

Carry over

<0.004% for caffeine at 75 bar with external wash

Injection cycle time

<15 s for 5 µL

Sample thermostatting

4–45 °C or 22 °C below ambient (thermostatted sampler version)

Sample temperature accuracy

±2 °C

Dimensions (h x w x d)

36 × 42 × 51 cm (14.2 x 16.5 x 20 in.)

Power requirements

100–120 V, 60 Hz

200–240 V, 50 Hz

PC connection

All functions controllable via USB;

integrated USB hub with 3 USB 1.1 ports

Weight

max. 23 kg (51 lbs) including cooling

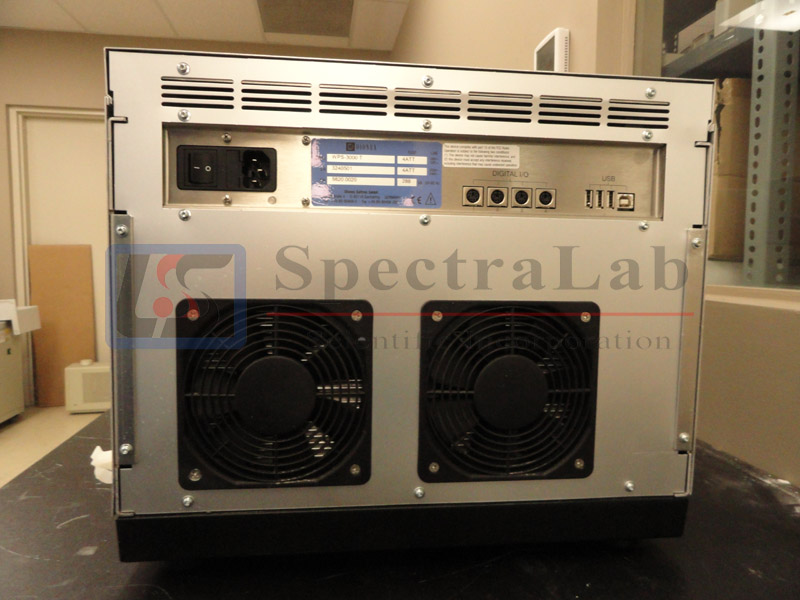

I/O interfaces

4 digital inputs, 4 relay outputs
