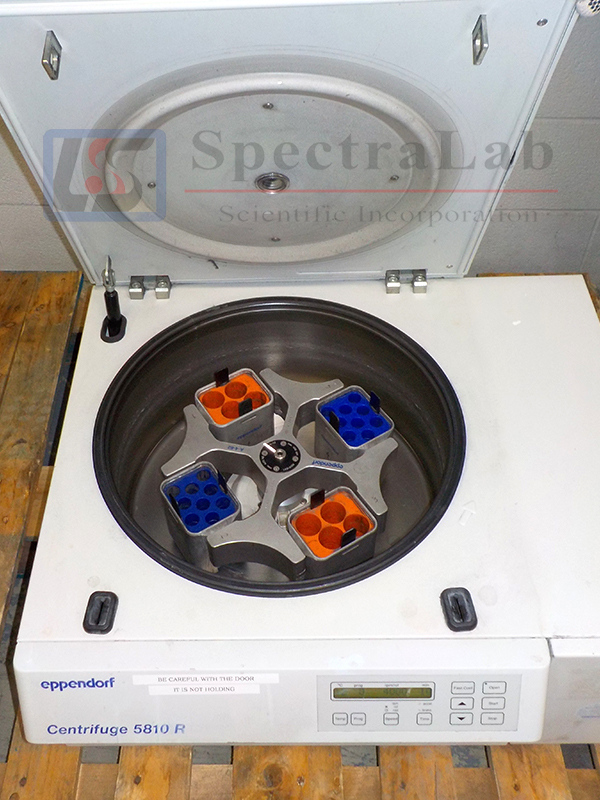

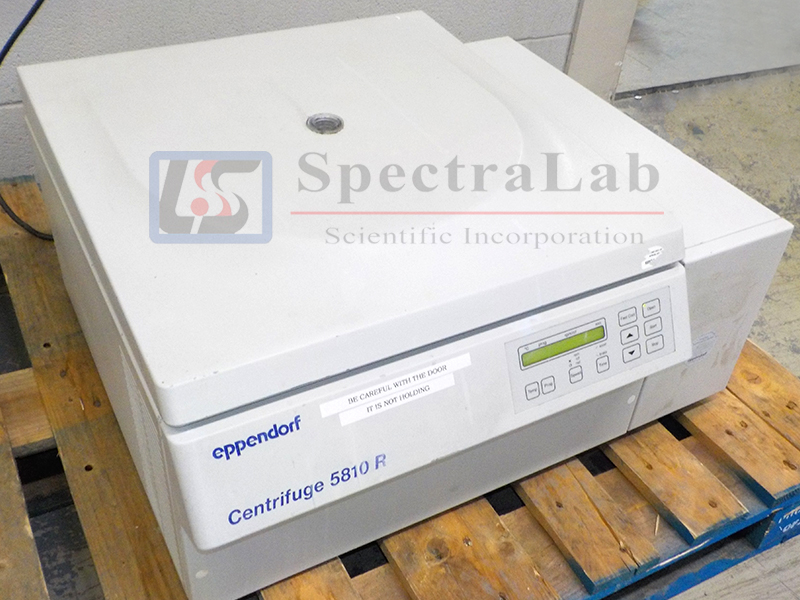

Eppendorf Centrifuge 5810R

This centrifuge is used for medium to high through-put applications. It’s also designed for cell culture and clinical applications, with high-speed for separating cell lysates and a microcentrifuge for nucleic acid purifications.

Features:

• Speed, rcf, and radius correction are all variable, for the user to set even during centrifugation
• Stores up to 35 programs
• Speed range: 220-14,000rpm (20,817xG)
• Adjustable short spin button for quick runs
• “at set rpm” for even more reproducible results
• 10 acceleration and 10 braking ramps for sensitive sample material
• Low-profile 11.2 in/28 cm access height for easy sample loading and unloading
• Automatic rotor recognition senses rotor type to set maximum allowable speed ensures safety—fast, simple programming of time, temperature (refrigerated models), speed/ g-force and radius value

Refrigeration:

• Temperature range: -9°C  to 40°C
• Standby cooling maintains temperature when not in use
• FastTemp function for fast pre-cooling in as little as 15 minutes and maximum temperature accuracy of the rotor
• ECO shut-off engages after 8 hours of non-use to reduce energy consumption and extend compressor life
• Built-in condensation drain eliminates water accumulation and prevents corrosion

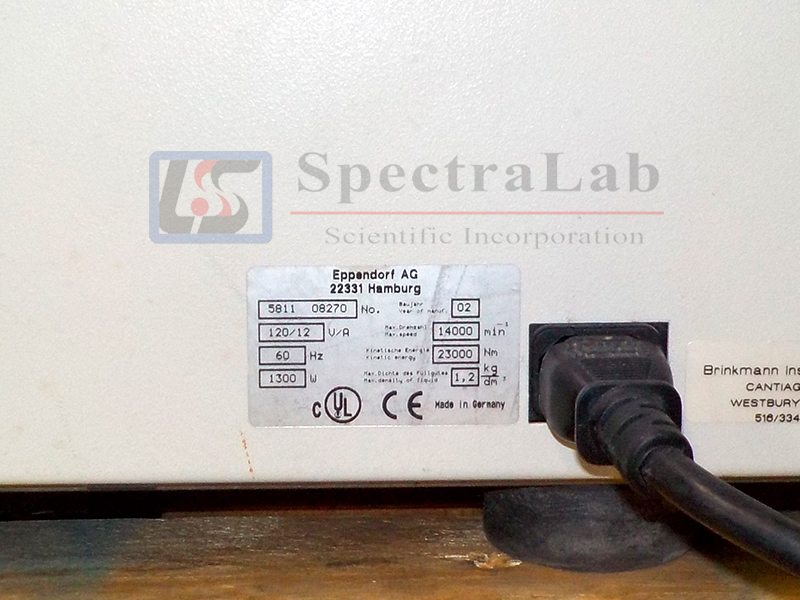

Max. power requirement: 1300W

Power supply: 120V 60Hz

Centrifuge 5804/5804 R/5810/5810 R Manual PDF
