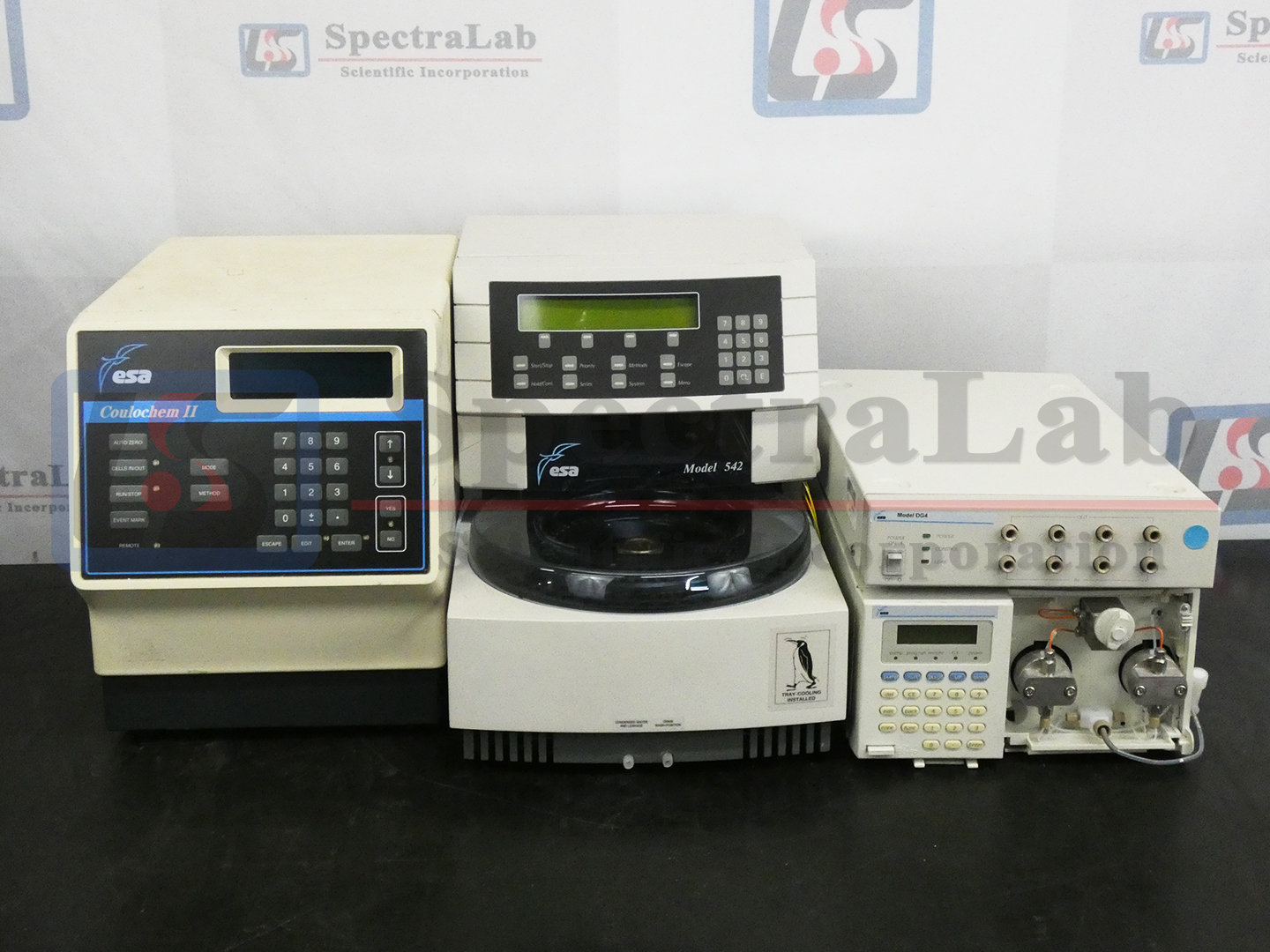

ESA 5200 Coulochem II HPLC System
Item ID:
Manufacturer
Condition
3-12 month warranty
Service options & contracts available
To sell, trade-in, or service your equipment
How do we Refurbish Lab Equipment?
Looking for further assistance? Contact Us
Request Quote/ Offer
Estimate Shipping Time
Canada & U.S.: 3-5 business days
International: 5-10 business days
Tariff-Free Shipping to the U.S.!
System includes:
- DG4 Degasser
- 2x 582 Solvent Delivery Module
- 542 Autosampler
- (optional) Column heater
- Coulochem II Electrochemical Detector
- PC with ESA software
The control module allows the digital acquisition from all detector cells both in the DC mode and the Pulse mode, use of the digital inputs and outputs and supports the use of the Thermal organizer compartment. The user can easily create the detector control method from the Method Setup – Acquisition dialog, set the operation mode of the detector cells or create timed events in the Event Table. All of these parameters are then saved as a part of the method and can be added as a part of the report. Actual signals of each detector cell can be monitored and partly controlled from the Device Monitor window.
This Coulochem II Electrochemical Detector (ECD) is in good condition.
ESA 582 Specifications:
| Specifications | ||
| Pump type | Dual Reciprocating Piston; Micro-volume | |
| Flow range | 0.001-5.000 mL/min (10-400 Kgf/cm2)
5.001-9.999 mL/min (10-200 Kgf/cm2) 0.001 mL/min step |
|
| Flow Precision | Within +0.3%
[0.1-5.0 mL/min; 10-400 Kgf/cm2, 20°C] |
|
| Flow Accuracy | +2% or +2 µL/min, whichever is larger | |
| Materials in Contact with Solvent | SUS316, Ruby, Sapphire, Teflon (PTFE) tempered with graphite, Hastelloy C, Polyetheretherketone (PEEK), Kalrez,Kel-F (PCTFE) | |
| Piston Displacement | 10 µL fixed | |
| Pressure Range (In Constant Pressure Delivery Mode) | 10-400 Kgf/cm2
(1 Kgf/cm2 step) |
|
| Pressure Accuracy (in constant Pressure Delivery Mode) | + 10% or +10 Kgf/cm2,whichever is larger | |
| Compressibility Compensation | Fine adjustment of pulsation compensation; user settable | |
| Gradient Formation | Low pressure quaternary gradient mixing with FCV-10AL or high pressure gradient mixing with multiple pumps | |
| Composition Range | 0-100% in 0.1 increments | |
| Program Time | Pump: 0.01-999.99 min. 10 files; 320 steps |
