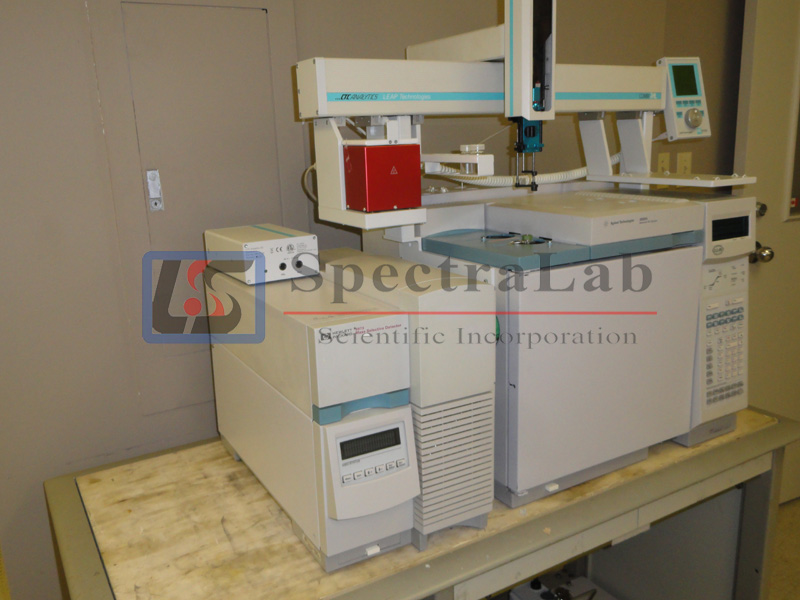

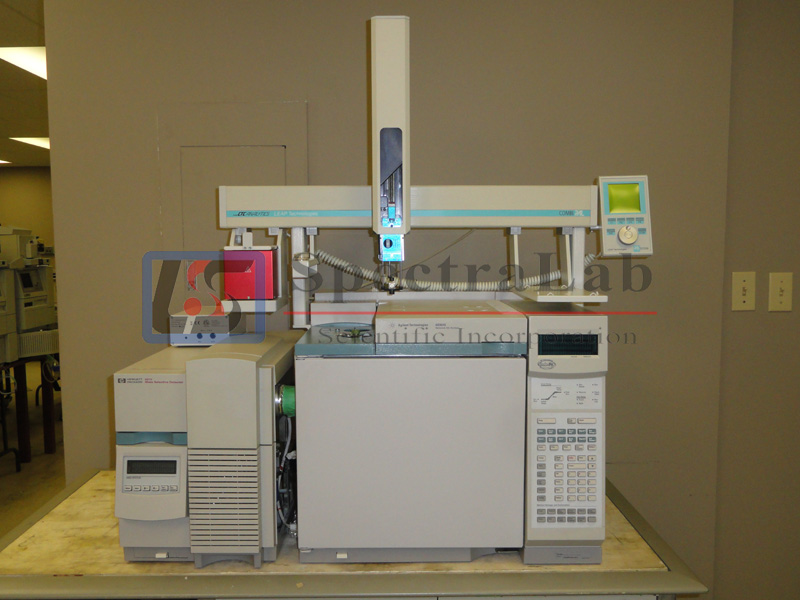

HP 5973 EI/CI MSD G1099A with 6890 Plus GC & CTC Analytics Combi PAL Autosampler

System Includes:

• 5973 EI/CI MSD with turbo pump G1099A
• 6890NPlus GC
• CTC Analytics Combi PAL Liquid and Headspace autosampler
• Rough pump
• PC with ChemStation

The Agilent 5973 MSD is a stand-alone capillary GC detector. The Agilent 5973 Mass Selective Detector (MSD) is designed for use with the Agilent 6890 Series Gas Chromatograph. The Agilent 5973 MSD features:

• Either a 90 L/sec vapor-diffusion or a 250 L/sec turbomolecular high vacuum pump
• Rotary vane foreline pump
• Independently heated electron-ionization ion source
• Independently heated hyperbolic quadrupole mass filter
• High-energy dynode (HED) electron multiplier detector
• Independently heated GC/MSD interface
• Power supplies and instrument control electronics

The Agilent 6890 Plus GC is designed to replace its older version HP 5890 GC. The Agilent 6890 Series gas chromatograph system delivers high levels of performance. The Agilent 6890 series GC features electronic pneumatics control of all gas pressures and flows. On-board sensors automatically compensate for ambient temperature changes and barometric pressure differences to routinely achieve more accurate and reproducible results. By providing stable results, EPC reduces recalibration frequency and improves laboratory productivity.

The Agilent 6890 Plus GC is considered as one of the best (GC) gas chromatograph systems today, producing excellent performance for many applications. Overall thermal performance of the Agilent 6890 GC, it provides optimal chromatography including retention time repeatability, peak symmetry, and retention index accuracy, while allowing for fast GC results. The accurate temperature together with its precise pneumatic control leads to outstanding retention time repeatability, the basis for all chromatographic measurement.

Agilent 6890 Plus GC Capabilities:

• Dual channel design supports two inlets and two detectors.
• Full range digital data output enables the smallest and largest peaks to be quantitated in a single run.
• Full EPC is available for all inlets and detectors. Control range and resolution are optimized for the specific inlet or detector module.
• EPC with capillary columns provides four column flow control modes: constant pressure, ramped pressure (3 ramps), constant flow, or ramped flow (3 ramps). Column average linear velocity is calculated.
• Atmospheric pressure and temperature compensation is standard, so results do not change, even when the laboratory environment does.
• Automatic Liquid Sampling is fully integrated into mainframe control.
• Set point and automation control can be done from the local keyboard or via a networked data system. Clock-time programming can be initiated from the front panel to initiate events (on/off, method start, etc) at a future date and time.
• A run time deviation log is created for each analysis to ensure that all method parameters were achieved and maintained.
• Display of all GC and automatic liquid sampler (ALS) set points at the GC or data system.

The Agilent 6890 Plus GC is a state-of-the-art gas chromatograph that provides superior performance for all applications. The Agilent 6890 Plus GC key applications include the following:

• Biodiesel
• Chemical Analysis
• Drug Screening
• Environmental
• Food Safety
• Hydrocarbon Processing
• Law Enforcement
• Pesticide Determination
• Research Laboratories
• Toxicology

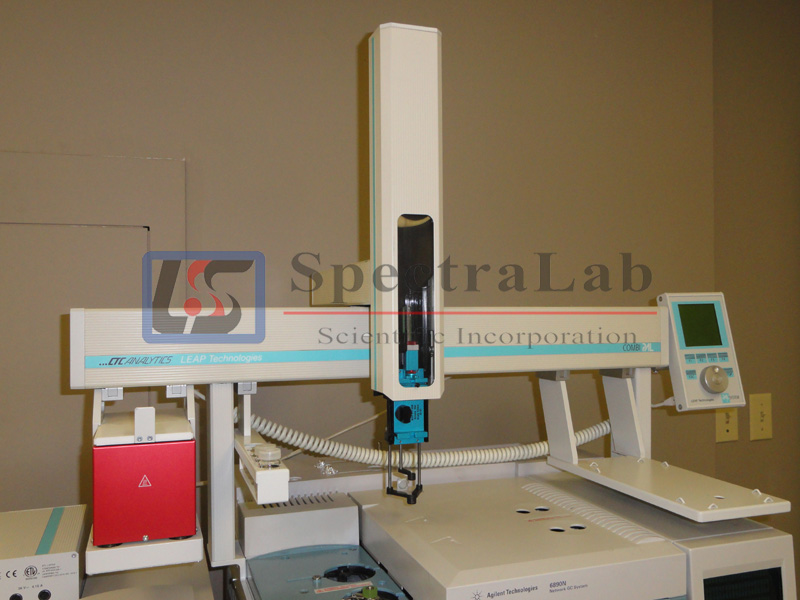

CTC Combi Pal features:

• Static Headspace and Liquid Injection combined in one single instrument with optional SPME
• Liquid injection volume up to 500µl for LVI applications
• Syringe only concept, no sample loops, transfer lines or valves
• Injects into 4 different Injectors without hardware modifications
• Top mounted, saves bench
• Uncompromising precision and sample capacity
• Interfaces with any major GC and GC/MS system

Includes Edwards Turbomolecular Pump HP G1946-80001, code B740-04-000.

This refurbished HP 5973 Mass Selective Detector MSD, Agilent 6890 Plus GC with SSI & CTC Combi Pal features a headspace autosampler, liquid inejction, PC with Suitable Software, rough pump and all necessary cables required for complete operation. It is in great shape, and has been tested at SpectraLab Scientific.

Warranty is included.
