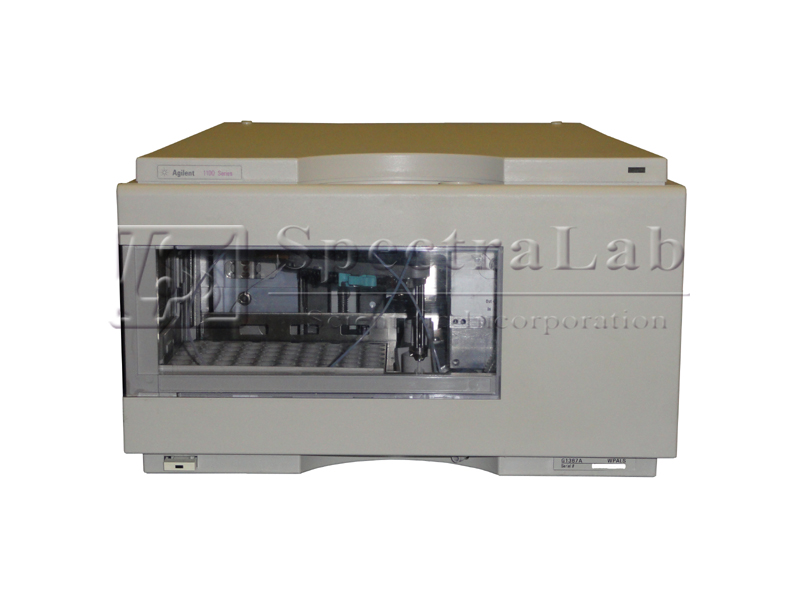

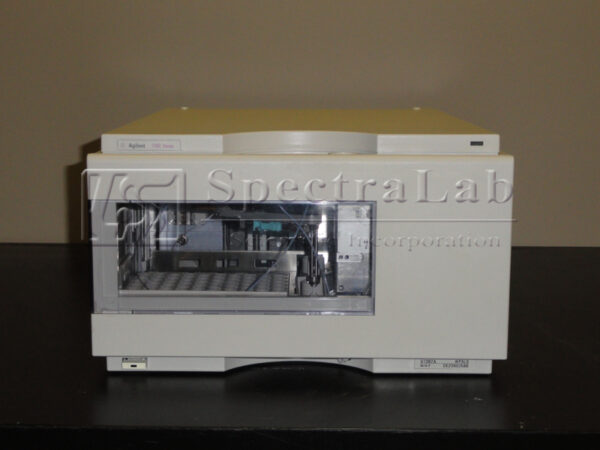

HP Agilent 1100 Series G1367A WPALS AutoSampler

Type

Specification

GLP features

Early maintenance feedback (EMF), electronic records of maintenance and errors

Communications

Communications Controller-area network (CAN). RS232C, APG-remote standard, optional four external contact closures and BCD vial number output

Safety features

Leak detection and safe leak handling, low voltages in maintenance areas, error detection and display

Injection range

0.1 – 100 µl in 0.1 µl increments Up to 1500 µl with multiple draw (hardware modification required)

Precision

Typically < 0.5% RSD from 5 – 100 µl, Typically < 1% RSD from 1 – 5 µl variable volume

Sample viscosity range

0.2 – 5 cp

Sample capacity

2 × well plates (MTP) + 10 × 2 ml vials 100 x 2-ml in one tray
40 x 2-ml in half tray

Injection cycle time

Typically < 30 s using following standard conditions: Default draw speed: 200 µl/min Default eject speed: 200 µl/min Injection volume: 5 µl

Carry-over

Typically < 0.01% using the following conditions: Column: 125 x 4 mm

Hypersil ODS, 5 µm
Mobile phase: Water/Acetonitrile = 80/20 Flow

rate: 1 ml/min

Injection volume: 1 µl caffeine (1 mg/ml), 5 µl water to test carryover Outside wash of needle before injection: 20 sec with water using flush port
