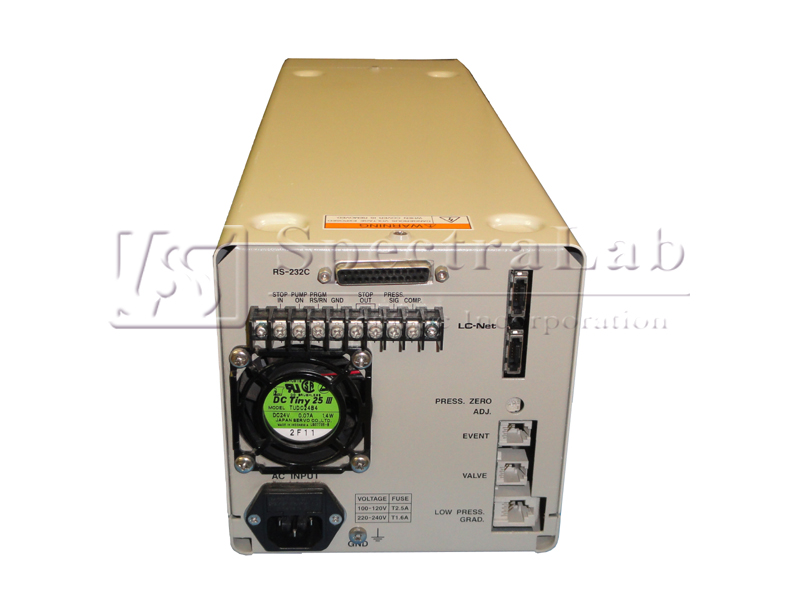

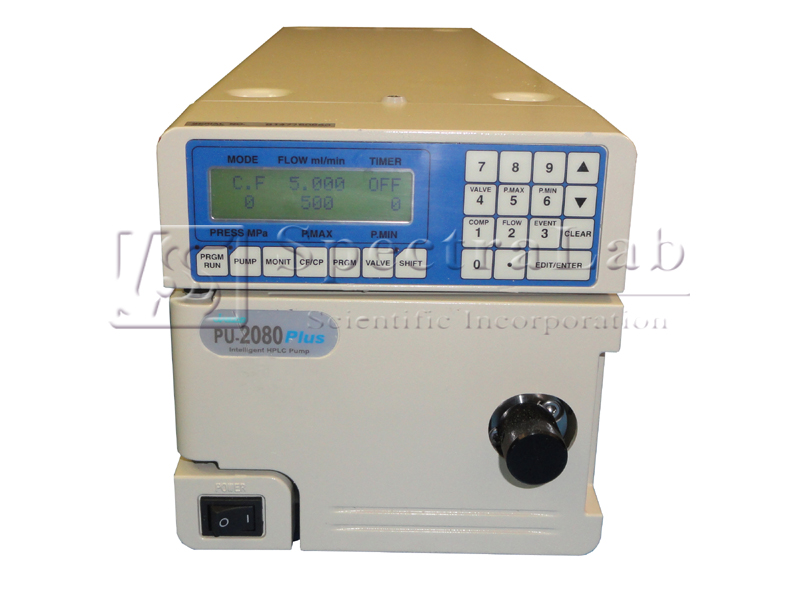

Jasco Pu-2080 Plus Intelligent HPLC Pump

Specification

Type of pump

SSQD (slow suction-quick delivery)

Delivery mode

Constant flow/constant pressure, selectable

Flow rate range

1 µL/min to 10.0 mL/min

Flow rate setting

1 µL/min to 10.0 mL/min with 1 µL steps by Ten keys operations

Flow rate precision

Less than 0.1% (relative standard deviation) at 0.2-5.0 mL/min

Flow rate accuracy

+1% of setting or +2 µL/min whichever is greater at 0.2-5.0 mL/min, 0 -35 MPa

Max pressure

50 MPa (less than 5 mL/min)
35 MPa (more than 5 mL/min)

Pressure range

3 – 50 MPa (less than 5 mL/min)
3 – 35 MPa (more than 5 mL/min)

Pressure setting operation

Adjustable in 0.1 MPa increments by Ten key

Pressure limit increments

Settable max, and min pressure limit in 0.1 MPa

Maximum pressure

0 – 50 MPa

Minimum pressure

0 – 50 MPa

Pressure sensor

Flow through type strain-gauge transducer
