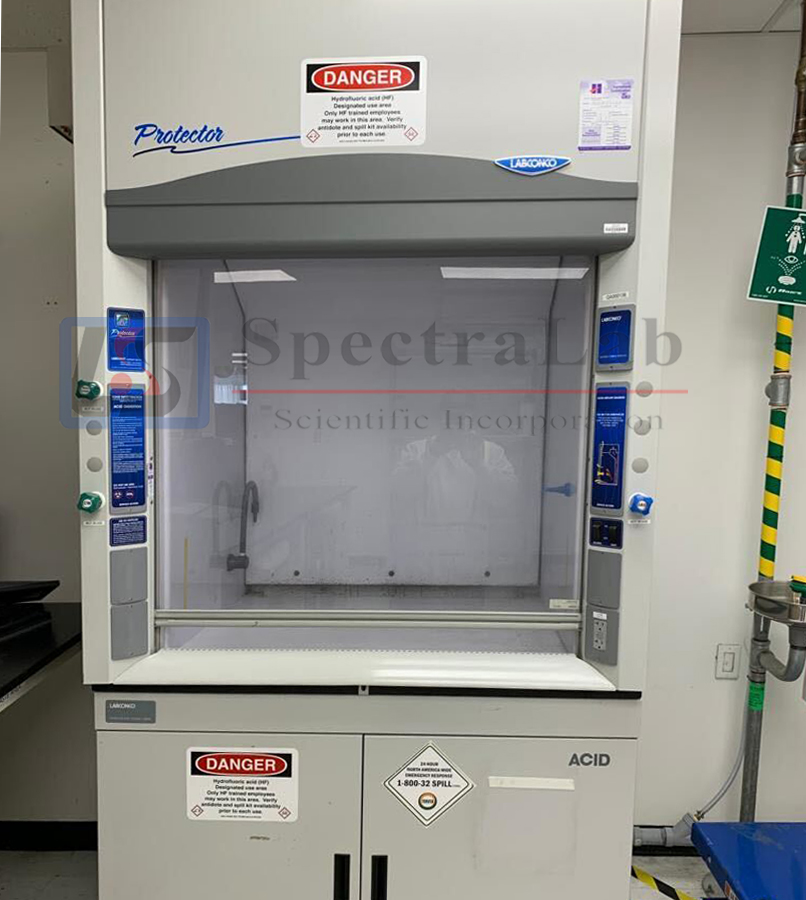

Labconco Protector Laboratory 4′ Fume Hood 141410002

This Labconco Fume Hood was taken from a working lab. Itcan be purchased with or without the overhead enclosing and the safety cabinets.

Description

• Heat-welded unplasticized PVC interior with integral work surface and drainage trough

• 0.19 in. thick tempered safety glass vertical-rising sash with frame of epoxy-coated aluminum and PVC

• 0.25 in. thick Lexan™ sashes with frame of epoxy-coated aluminum and PVC to prevent etching caused by hydrofluoric acid fumes

• Built-in washdown system with internal piping and spray nozzles and remote control fixture on upper left side

• Washdown port for connection to external wash rings (not included)

• Curved ergonomic air foil with aerodynamic Clean-Sweep™ airflow openings

• Two pre-plumbed service fixtures: one for gas and one with rigid gooseneck faucet for cold water

• Black enamel-coated hardboard support surface to support integral work surface

• Glacier white, dry powder epoxy-coated steel exterior

• Removable front and side panels and front access panels for access to plumbing and electrical wiring

• 12.75 in. I.D. exhaust connection(s)

• T8 fluorescent lighting

Air usage/static pressure with sash full open (at 100fpm)

• 4 ft. Model: 725cfm at 0.17 in.
