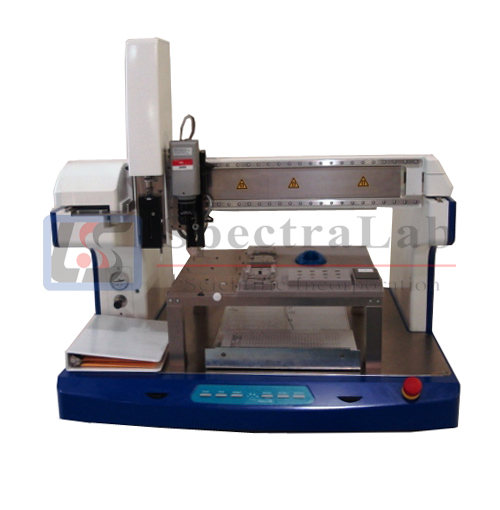

LEAP Technologies TMiD Tissue MALDI Spotting System

TM iD
Tissue MALDI Vision Enhanced Matrix Spotting System

• Imaging Mass Spectrometry
• Biomarker Discovery
• Protein Profi ling
• Diagnostic Pathology
• DMPK/ADME – Toxicology
• Non-Contact Nano Dispensing
• See and Spot™ Technology
• Industrial Quality Robotics
• Reproducible Automated Sample Prep
• Process Data Integration

Specifications:
ROBOTIC PLATFORM:
Distributed FireWire (IEEE-1394) control for motion (X,Y, head axes),analog and digital I/O,and vision
SYSTEM ACCURACY:
Linear Motor control with encoder. X/Y positioning resolution of 2-4 microns(10-6m)
IMAGING SYSTEM:
Color or black/white FireWire CCD camera can be used. The image optics can be used down to 5 microns/pixel
CCD CAMERA:
1024×768 square pixels, progressive scan, 10 bits,size 44x33x116 mm, 250 grams, 8-30 VDC, power 3.5 Watt (12 VDC)
DISPENSING HEAD:
Non-contact printing with solenoid valve controlled volume setting, 500Hz (dispensing speed), volume down to 2 nls.
DISPENSING CONFIGURATION:
Single or array pattern dispensing with adjustable pitch-pitch spacing, multiple dispensing with same matrix material or multiple matrix dispensing capability
DISPENSING NOZZLE WASHING:
On-board ultrasonic bath with multiple washing option ULTRASONIC BATH:7W, 4 ml capacity, 1 additional vial (0.6 ml) position
AIR PUMP:
110-120 V, 50 Hz, 7.5 W, 6-7 psi pressure

This LEAP Technologies TM iD™Tissue MALDI Spotting System is in a great shape.
