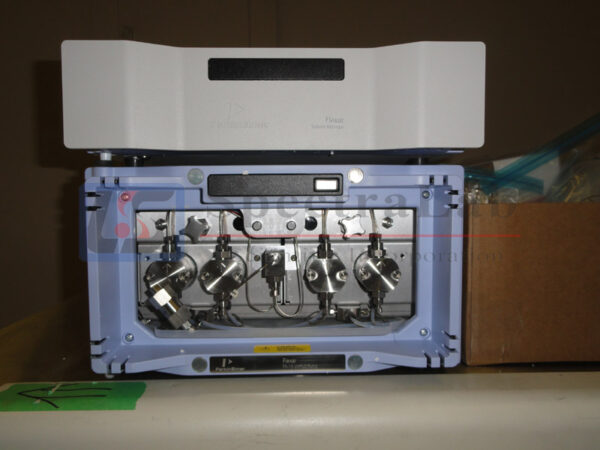

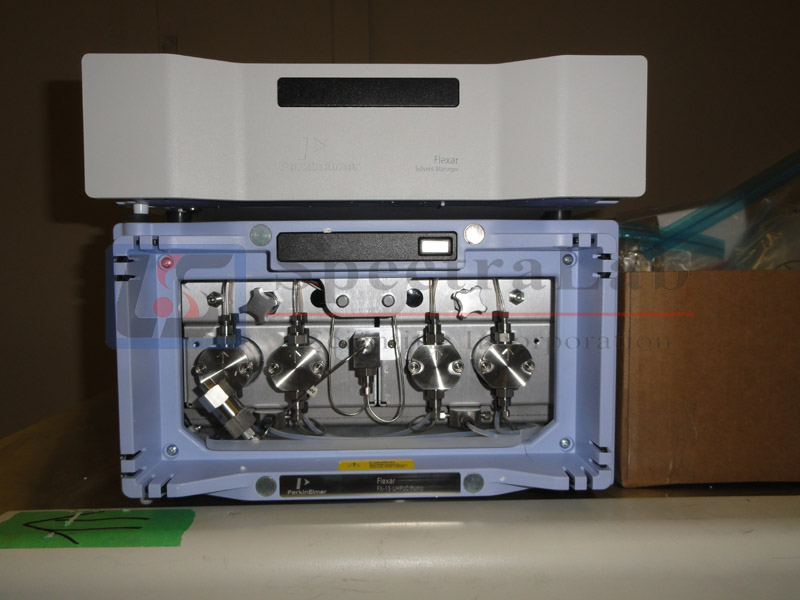

PerkinElmer Flexar FX-15 UHPLC Pump with Degasser

This refurbished Perkin Elmer Flexar LC pump FX-15 is like new. It includes Flexar Solvent Manager 3-CH Degasser. It has been tested at SpectraLab Scientific.

Features

• Dual-reciprocating piston 18,000 psi pump provides as much as 10x or more improvement in productivity
• Integrated piston wash function keeps pump pistons clean, even with buffers
• Synchronized Injection for ultimate precision. High-speed FXUV/Vis (100 pt/sec) with high-efficiency 2.4 μL flow cell
• View pump pressure profiles real-time with Chromera CDS
• Analyst versions supported: version 1.4.2 and higher
• Supports 21 CFR Part 11 Compliance
• Up to 181 gradient profiles, including step, linear and both convex and concave curves
• Up to 19 gradient steps plus an equilibration step
• Two independent timed events, including a third timed event that triggers both simultaneously
• Soft Ramp option for automatically ramping the flow rate when starting and stopping the pump, placing less stress on
• UHPLC systems and prolonging column life
• FX-15 supports GradientLock, timing each injection with the pump’s piston position, driving improved retention time repeatability

Flexar Solvent Manager 3-CH Degasser specification

Specification

Description

Channels

3-channel version or 5-channel version

Degassing Process

Gas permeation through a fluoropolymer membrane

Maximum Recommended Flow Rate

3.0 mL/min.

Pressure Drop

1.37 mm Hg/mL/min.

 Degassing Capacity

 ~25% dissolved gases remaining in 60:40 MeOH/Water mixture at 1 mL/min.

Dead Volume

~480 microliters per channel for standard channel

Materials contacting solvents

PEEK, Glass-filled PTFE, Teflon AF

Power:

Power requirement

100 to 240 VAC (±10%), 1A, 47 to 63 Hz

Power Supply Adapter Plugs

4 supplied with power supply, interchangeable: North America/Japan, U.K., Continental Europe, Australia

Installation Over-Voltage Category

II

Validation Output:

Signal

5 mVDC / 1 mm Hg absolute from 20 to 800 mm Hg (0.100 VDC at 20 mm Hg; 4.000 VDC at 800 mm Hg)

Accuracy

±1.0% of reading ±0.010 VDC from 20 to 800 mm Hg

Operating Conditions:

Ambient Temperature

10 to 35 ºC

Ambient Relative Humidity (RH)

20 to 80 % RH (without condensation)

Altitude

0 to 2000 Meters

Indoor vs. Outdoor Use

Indoor

Pollution Degree

2

Storage Conditions:

Ambient temperature

-20 to +60 ºC

Ambient Relative Humidity

20 to 80% RH (without condensation)

Altitude

0 to 12000 M

A 90 day warranty is included.
