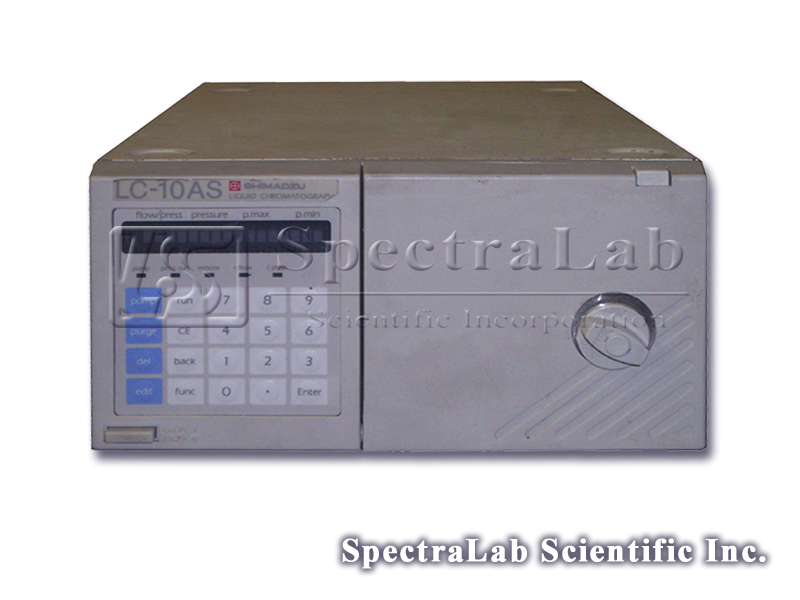

Shimadzu LC-10AS Pump

Pump type

Single Piston; Constant Displacement w/ Quick Return (CDQR)

Flow range

0.001-5.000 mL/min (10-400 Kgf/cm2)
5.001-9.999 mL/min (10-200 Kgf/cm2)
0.001 mL/min step

Flow Precision

Within +0.3%
[0.1-5.0 mL/min; 10-400 Kgf/cm2, 20°C]

Flow Accuracy

+2% or +10 µL/min, whichever is larger

Materials in Contact with Solvent

SUS316, Ultra High molecular wgt. Polyethylene (UHMW-PE), Elgiloy, Kalrez, Polyetheretherketone (PEEK), Tefzel (ETFE), Kel-F (PCTFE), Teflon (PTFE)

Piston Displacement

100 µL fixed

Pressure Range (In Constant Pressure Delivery Mode)

10-400 Kgf/cm²
(1 Kgf/cm² step)

Pressure Accuracy (in constant Pressure Delivery Mode)

+ 10% or +10 Kgf/cm²,whichever is larger

Compressibility Compensation

Fine adjustment of pulsation compensation; user settable

Gradient Formation

Step or linear binary high pressure gradient available viaLC-10AS control; Step, linear, or exponential binary or ternary high pressuregradient available via SCL-10A control

Composition Range

0-100% in 0.1 increments

Program Time
