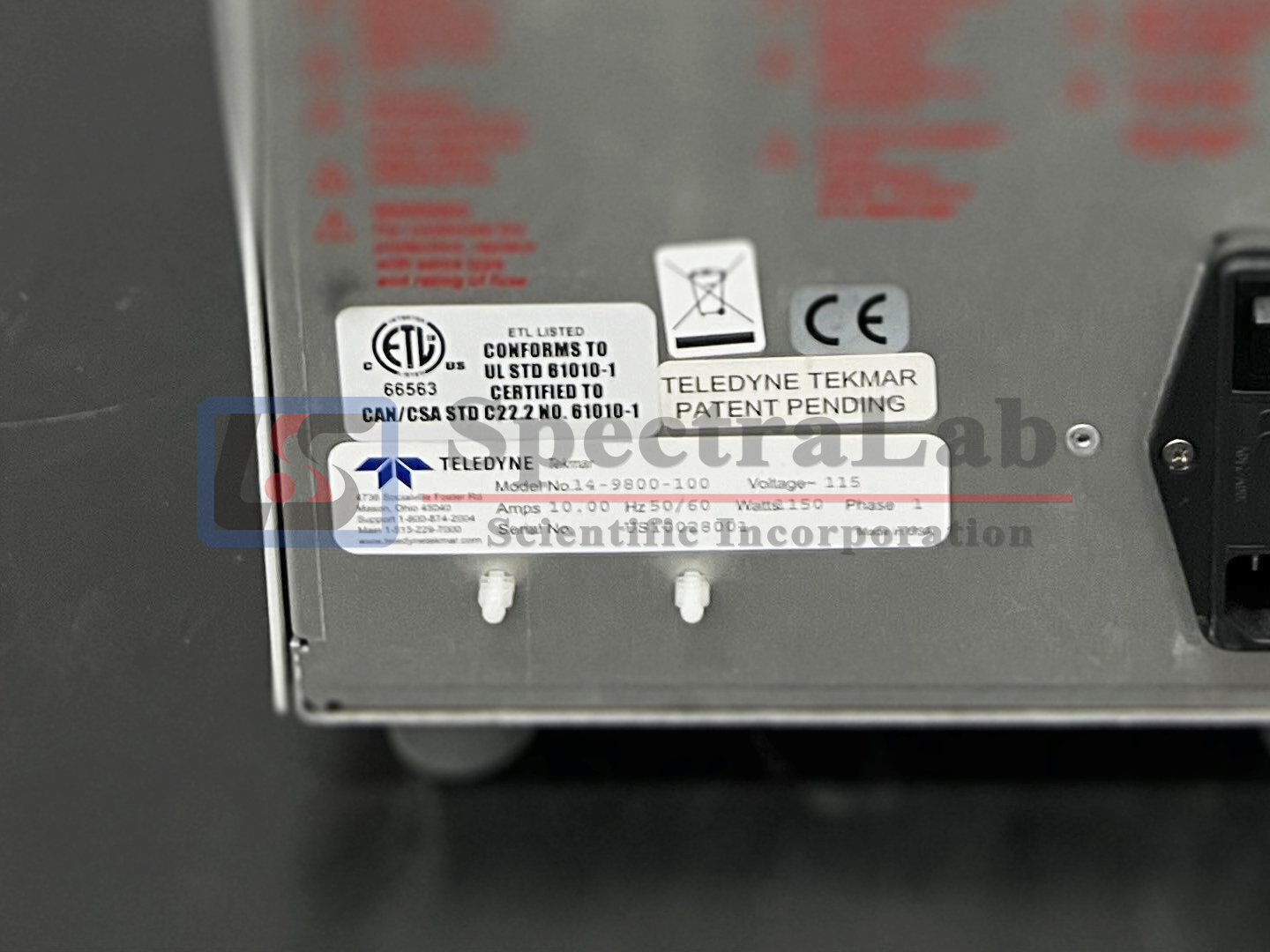

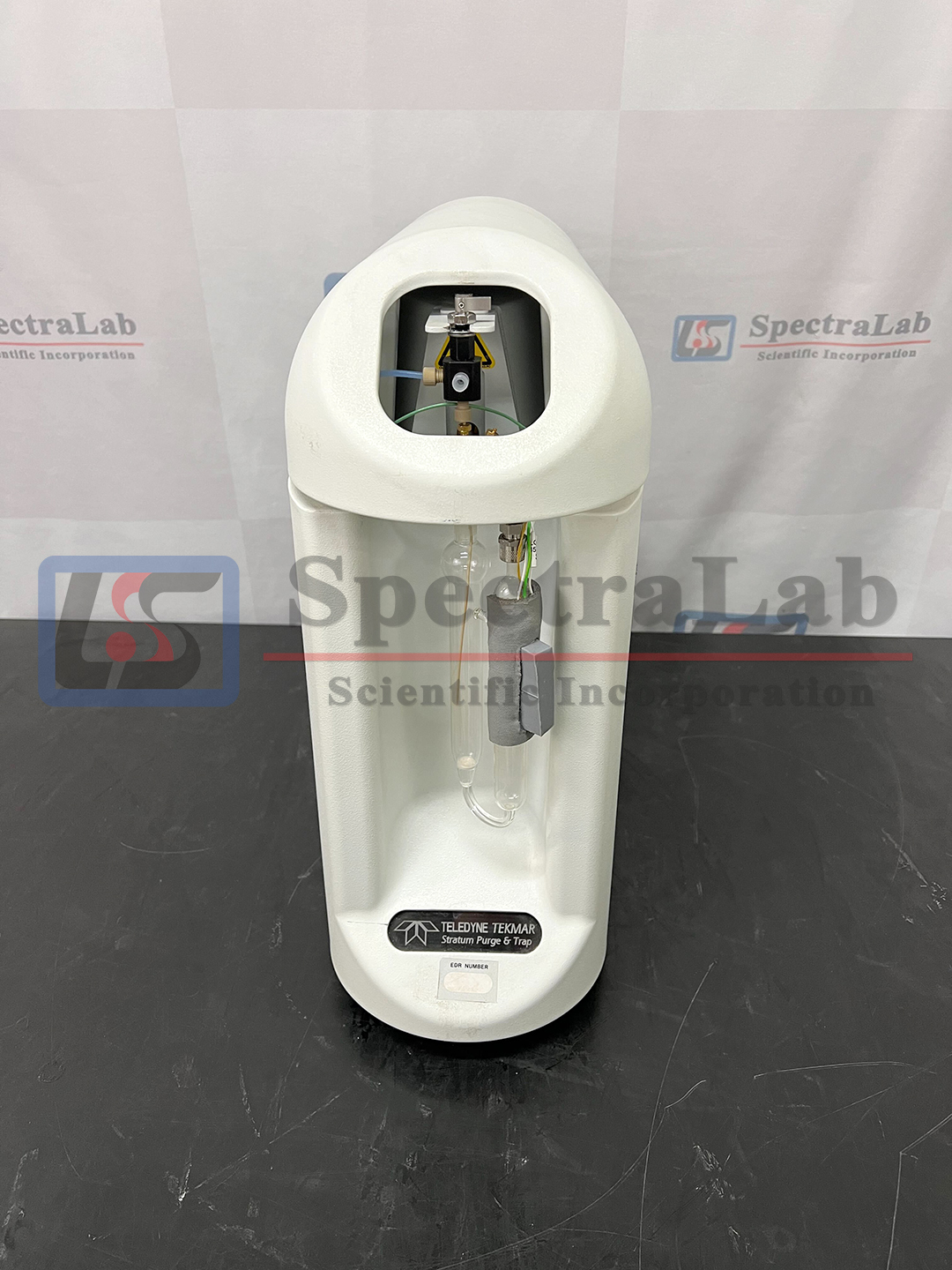

Teledyne Tekmar Stratum Purge & Trap Concentrator Model 14-9800-100
Item ID:
Manufacturer
Condition
3-12 month warranty
Service options & contracts available
To sell, trade-in, or service your equipment
How do we Refurbish Lab Equipment?
Looking for further assistance? Contact Us
Request Quote/ Offer
Estimate Shipping Time
Canada & U.S.: 3-5 business days
International: 5-10 business days
Tariff-Free Shipping to the U.S.!
The Stratum Purge and Trap Concentrator (PTC) is a sample preparation instrument used to remove Volatile Organic Compounds (VOCs) out of aqueous and solid sample types using Helium or Nitrogen. The VOCs are deposited onto a sorbent trap which is then heated thus releasing the VOCs into a Gas Chromatograph (GC) system. This technique is standard for many EPA Methodologies as well as analytical options where concentration of VOCs is required. Teledyne Tekmar has been the leader in this technology since its first PTC was released in the 1980s. Tekmar has continued to improve on this technique through eight generations of systems including the Stratum PTC to meet the ever increasing analytical challenges faced by laboratories.
Stratum Specifications
Automation
| Cycle Time: | The cycle time for the unit is 17 minutes when using an 11-minute purge time. This time also includes desorb, bake, and cool down for the Stratum PTC only and assumes ambient lab temperature. (20-22 °C). |
| Trap Furnace: | Ambient to 350 °C cools from 250 °C to 40 °C in 90 seconds or less at ambient lab temperatures (20-22 °C). |
| 6-port switching valve | Ambient to 300 °C actuated at 24 Volts (D.C.). |
| External Transfer Line | Ambient to 300 °C. |
| Sample Mount | Ambient to 100 °C. |
| Condenser | Ambient to 250 °C. |
| Sample Heater (optional) | Ambient to 90 °C. |
| Sample Pathway | All tubing has an Inertium coating and related fittings are SilcoNert 2000. |
| Gas Requirements | 99.999% Helium or Nitrogen |
| Electronic Mass Flow Controller | Device is capable of controlling flow rates between 5 mL/min to 500 mL/min. Each mode is independently controlled. Device also capable of recording pressures for sample logging and automatic leak checking. |
| Unit Dimensions | Height: 19.75 inches (50.17 cm)
Width: 8 inches (20.32 cm) Depth 18.5 inches (46.99 cm) |
| Operating System | PC using Windows® XP or greater |
| Software | VOC TekLink interfaced via an RS-232 connection. |
| Operating Conditions | The system is capable of operating in Lab Temperatures between 10-30 °C and humidity levels between 10-90%. |
| Corrosion | The front cover is corrosion resistant to waters within a pH range of 1-10. |
| Voltages | 100/115VAC 50/60Hz 10 amps, 1150 watts
220/240VAC 50/60Hz, 5 amps, 1150 watts |
| Weight | 32 lbs (14.5 cm) |
System Control
| Instrument Control: | VOC TekLink™ software in a Windows® XP or greater environment. Via RS-232 or USB converter (optional). |
| Method Scheduling: | All method types can be run from any position in the sample sequence. Up to three standards can be added to any user-specified position. Multiple runs can be made from the same vial (not recommended). |
| System History: | The system records a complete history of all sample, schedule and method information. |
| 21 CFR Part 11 Compliance Tools: | VOC TekLink™ can be configured to allow for full 21 CFR Part 11 compliance tools to be available to the end user. |
