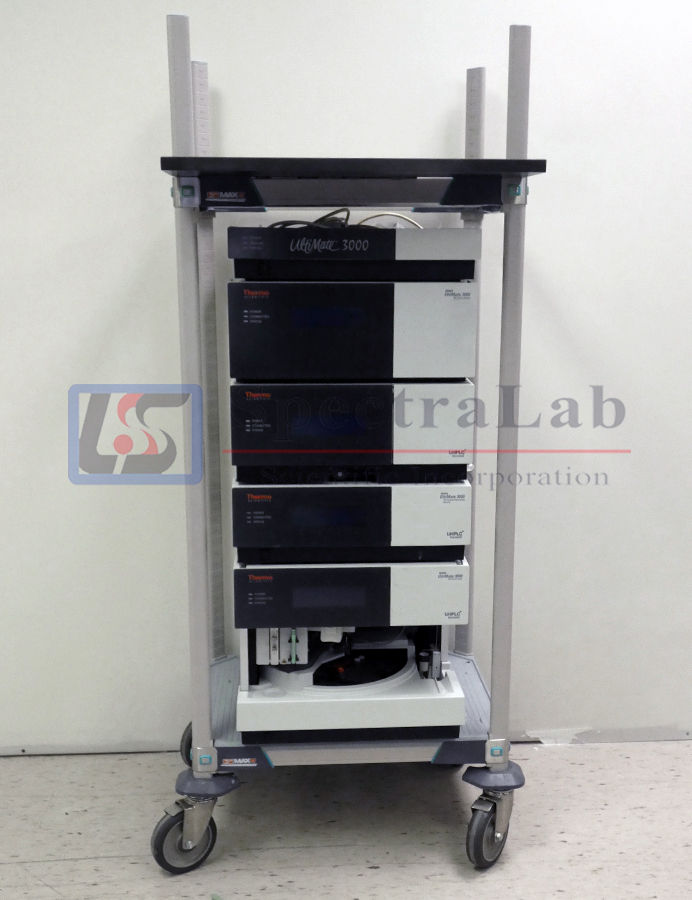

Thermo Dionex UltiMate 3000 RSLC Cap System

System includes:

• Solvent tray
• NCS-3500RS Nano/Cap Flow Pump
• WPS-3000TPL RS Nano/Cap Flow Autosampler
• VWD-3400RS or DAD-3000RS
• PC with data

UHPLC system for Cap range. 20 nL/min – 50 µL/min up to 800 bar. Continuous direct flow. New standard in retention time precision. Snap-in valves.

The Dionex UltiMate 3000 RSLC Nano/Cap system provides ultrafast, ultrahigh-resolution separations using a powerful nano LC pump that can deliver up to 800 bar pressure. The thoughtfully engineered system design makes this system easy-to-use, allowing operators to set up advanced solutions in minutes. This system is ideally suited for coupling to mass spectrometry, both with ESI and MALDI interfaces.

The NCS-3500RS is the “heart” of the UltiMate 3000 RSLC System. It performs equally well as flexible and reliable modules for routine analysis and sophisticated research tasks in nano LC and capillary LC, and can be used in numerous laboratory environments. The NCS-3500RS combines a binary high-pressure gradient pump (NC pump), and a ternary low-pressure micro pump as loading pump, and a column compartment in one enclosure.

System Features

• Continuous direct flow
• Small gradient delay volume of only 25 nL
• Flow delivery from 20 nL/min up to 50 μL/min at a maximum pressure of 800 bar
• Unparalleled gradient precision
• Fully biocompatible pump system
• Integrated ternary gradient pump, 10–2500 μL/min
• Up to two low-dispersion 2-position switching valves
• Nano, capillary, and micro LC applications
• Can perform multidimensional separations
• Easy coupling to ESI and MALDI MS
• UHPLC-compatible fingertight connections
• High-resolution columns
• Zero-sample-loss injection
• High-precision sample injections down to 10 nL
• Sample fractionation and automated reinjection
• Sample cooling down to 4 ̊C
• UV detector for nano LC using a 3 nL flow cell
• Data collection rate of 200 Hz
