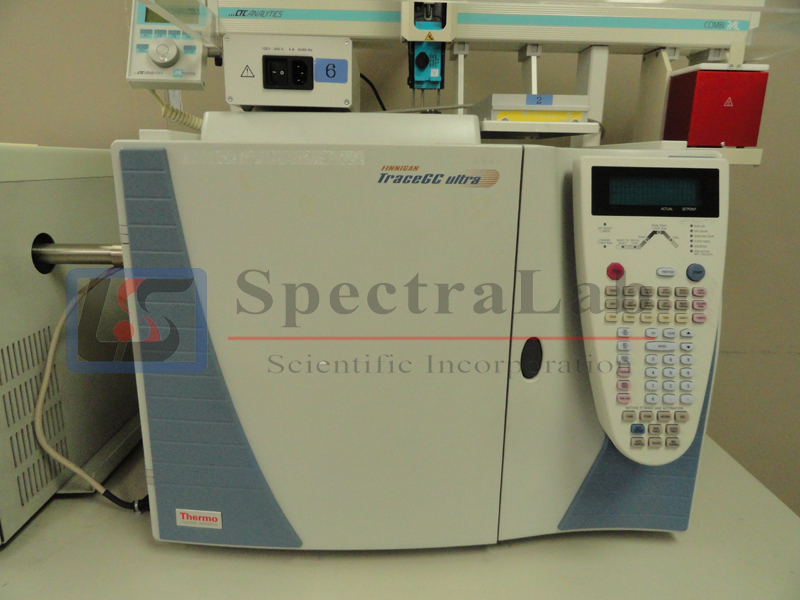

Thermo DSQ GC/MS with CTC Combi PAL and Caliper life Sciences Autotrace Spe Workstation

Simple, rugged hardware Internal LAN interfacing capability Range of Large Volume techniques overcomes sensitivity boundaries of conventional GC

Linear heating rate up to 1200°C/min. reduces sample run times for crude oils, pesticides and hydrocarbons determination as well as food and flavor characterizations. High temperature programming up to 20°C/s and fast cooling times of approximately one minute. Precise retention time control and the utmost stability in both retention time repeatability and reproducibility. A full spectrum of automatic sampling systems makes this GC able to meet the highest workload requirements and operate unattended, around-the-clock. The highest accuracy and precision in carrier gas control. Large Volume split/splitless technique using standard splitless injector extends sample injection volume of conventional GC methods without additional investment, training or revalidation of methods. A comprehensive range of injectors supported, including BEST PTV, cold on-column inlets and detector solutions for conventional GC and GC/MS. Easily configured with up to two injectors and three detectors (in-series, staked or parallel configurations featuring different selectivity).

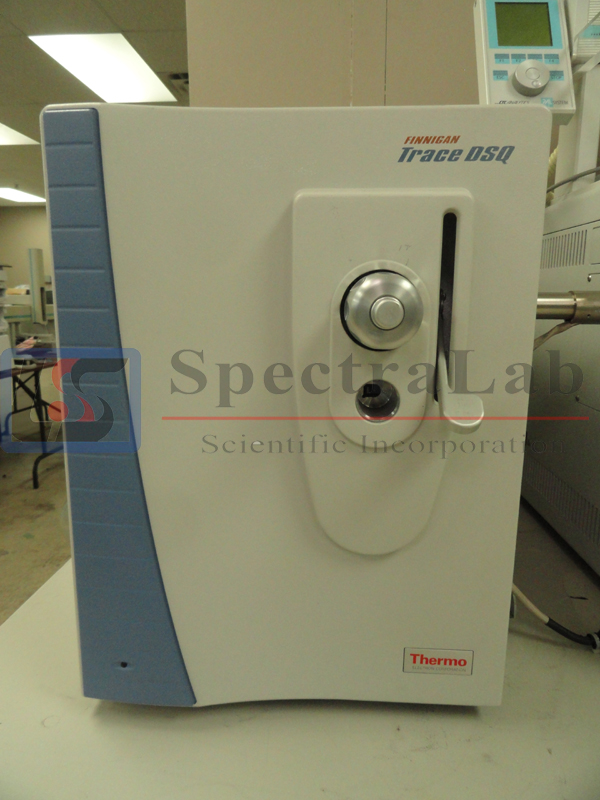

Thermo Trace DSQ Features:

• Mass range of 1 – 1050 amu
• Scan speeds up to 10,000 amu/sec (profile and centroid)
• Curved pre-filter for noise reduction
• ± 10 kV conversion dynode for better performance
• Wide spectral/quantitative dynamic range
• Removable ion volumes for EI and CI
• Combination ion volume for automated EI/CI operation
• Powerful Xcalibur data system

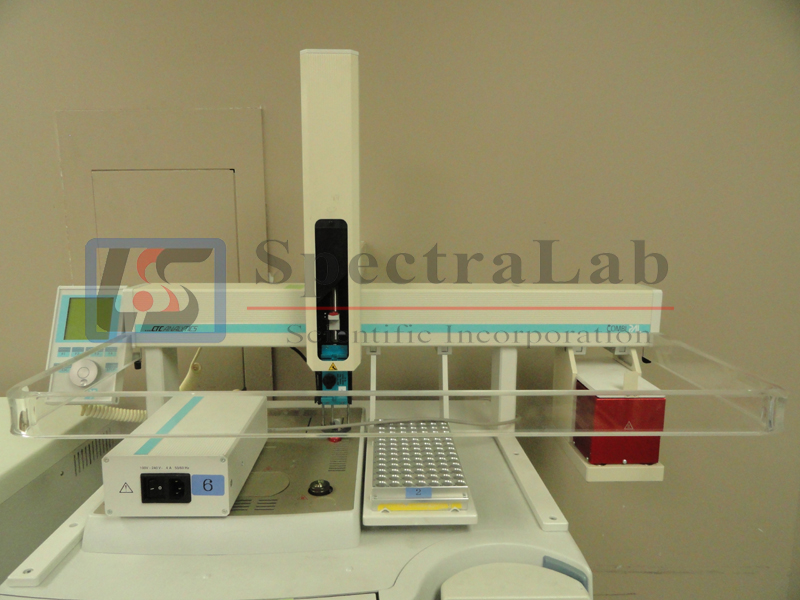

CTC Analytics GmbH Combi PAL Autosampler Highlights

• Static Headspace, SPME, In-Tube Extraction and Liquid Injection combined in one single instrument
• Liquid injection volume up to 500µl for LVI applications
• Syringe only concept, no sample loops, transfer lines or valves
• Injects into 4 different Injectors without hardware modifications
• Top mounted, saves bench
• Uncompromising precision and sample capacity
• Interfaces with any major GC/GC MS system

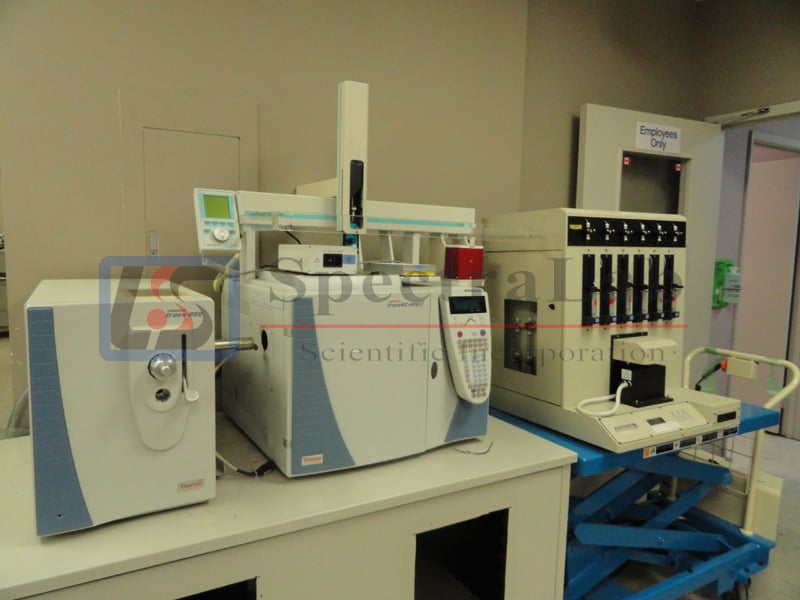

This Thermo Finnigan Trace Ultra DSQ GC/MS with CTC Analytics Autosampler and Caliper life Sciences Autotrace Spe Workstation system is in a great shape. It has been tested at SpectraLab Scientific.

A 90 day warranty is included.
