Thermo Nicolet 6700 FT-IR Spectrometer with Smart Orbit ATR Module

The ThermoFisher Scientific Nicolet 6700 FT-IR spectrometer is a fully upgradeable, routine and advanced research FT-IR spectrometer focused on power and flexibility. The Nicolet 6700 FT-IR spectrometer has the power to handle both research and routine analysis experiments. Every facet of the Nicolet 6700 FT-IR spectrometer has been engineered to facilitate sample handling, provide options for integration in the laboratory, and increase laboratory throughput. With a huge installed base worldwide, a superior service team and the flexibility for many applications, the Nicolet 6700 is an excellent laboratory investment for both the present and future. The Thermo Scientific Nicolet 6700 spectrometer is the industry standard for performance and sampling options, making it a powerful component of any laboratory. The base systems are optimized for mid-IR performance; many options provide superb performance from the far-IR to near-IR and visible ranges.

The Nicolet 6700 incorporates extensive capabilities for handling optical filters, polarizers and mirrors for specific applications through the OMNIC Software suite. The Nicolet 6700 can perform time-based studies, rapid scans and low-light level measurements by proper selection of components. This opens a huge range of applications oriented solutions.

This FT-IR has the XT-KBR detector installed (11000-375cm^-1). It can be purchased with our without the ATR.

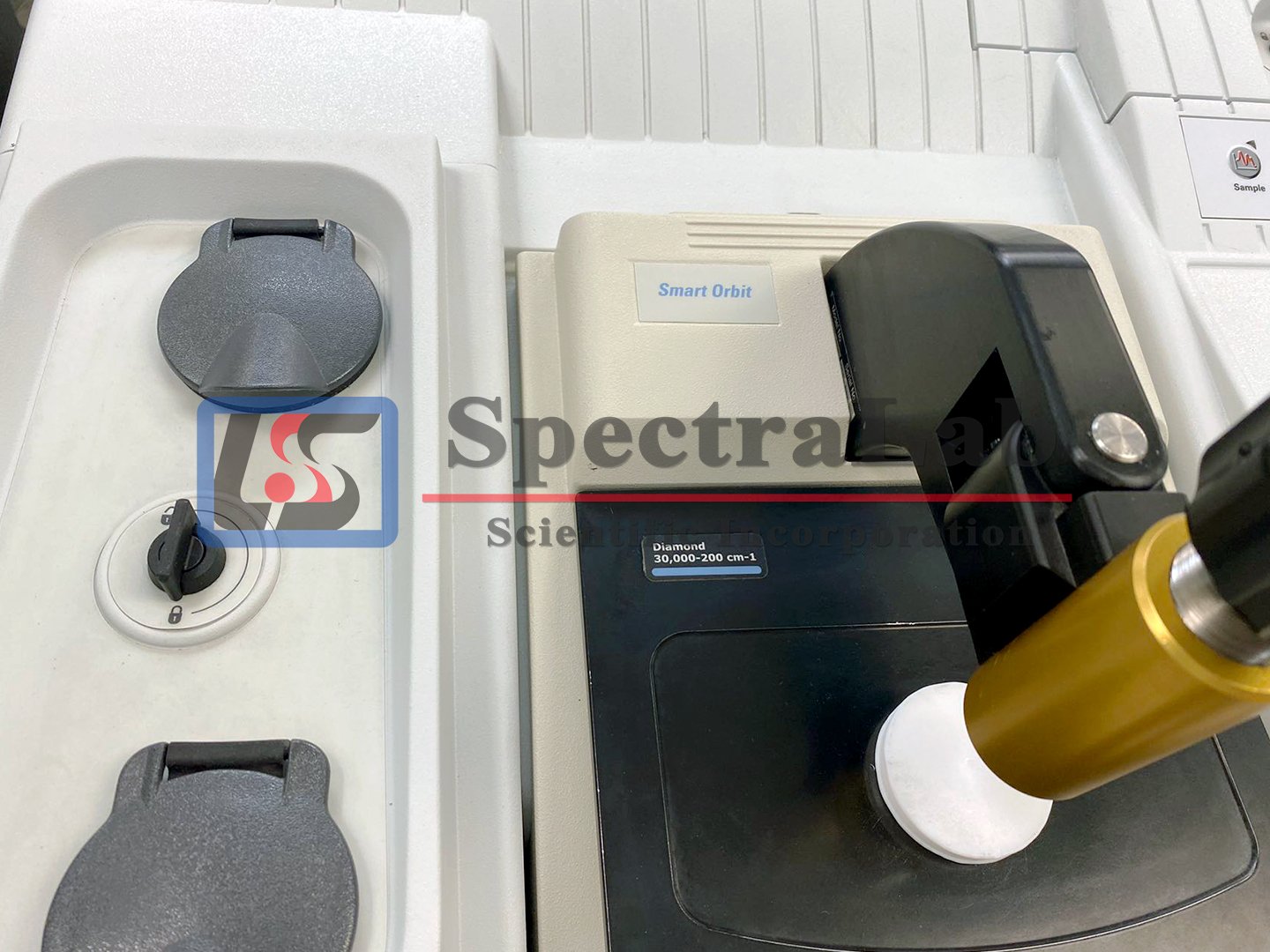

The Smart Orbit is a high-performance diamond single bounce ATR accessory. Diamond ATR is ideal for analysis of hard, abrasive, reactive, caustic or corrosive materials because it is both inert and extremely strong. Diamond also has a wide spectral range and good depth of penetration, which makes it a great choice for more common samples. The Smart Orbit offers additional sampling flexibility by offering optional germanium and silicon crystal plates and a 45 degree specular reflectance option. A flow cell can be added to facilitate the introduction of liquid samples to the ATR crystal element. Four different sample tips are included with the adjustable pressure tower: one short and one long pointed tip to apply high pressure to solid samples; a concave tip – for spherical solid samples; and a Teflon coated tip for powders and delicate samples such as combinatorial beads. The Lightning Viewer provides an 8X magnified view of the sample, ideal for ensuring sample placement upon the ATR crystal.
