Thermo Nicolet 6700 FT-IR with Specac Golden Gate ATR, Auxiliary Experiment Module and TGA Interface

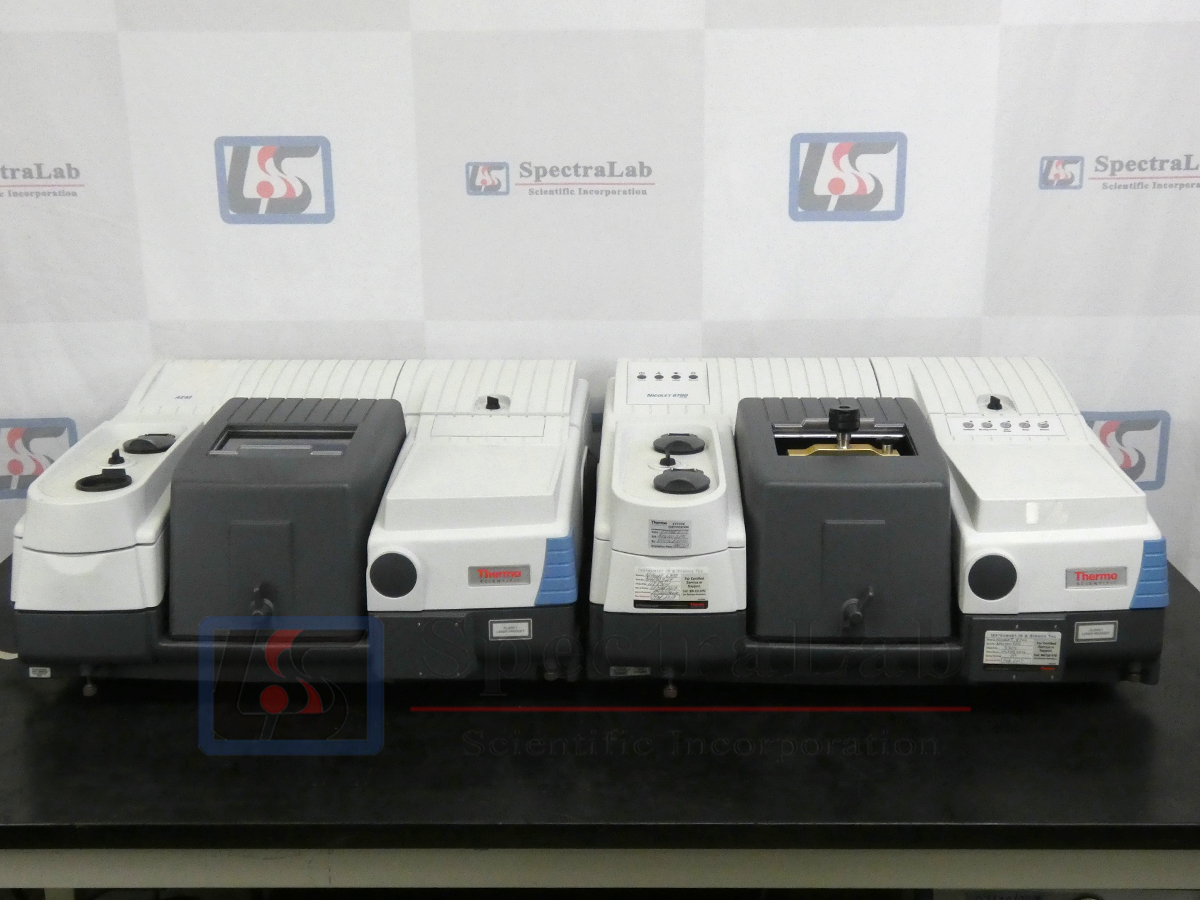

The ThermoFisher Scientific Nicolet 6700 FT-IR spectrometer is a fully upgradeable, routine and advanced research FT-IR spectrometer focused on power and flexibility. The Nicolet 6700 FT-IR spectrometer has the power to handle both research and routine analysis experiments. Every facet of the Nicolet 6700 FT-IR spectrometer has been engineered to facilitate sample handling, provide options for integration in the laboratory, and increase laboratory throughput. With a huge installed base worldwide, a superior service team and the flexibility for many applications, the Nicolet 6700 is an excellent laboratory investment for both the present and future. The Thermo Scientific Nicolet 6700 spectrometer is the industry standard for performance and sampling options, making it a powerful component of any laboratory. The base systems are optimized for mid-IR performance; many options provide superb performance from the far-IR to near-IR and visible ranges.

The Nicolet 6700 incorporates extensive capabilities for handling optical filters, polarizers and mirrors for specific applications through the OMNIC Software suite. The Nicolet 6700 can perform time-based studies, rapid scans and low-light level measurements by proper selection of components. This opens a huge range of applications oriented solutions.

This FT-IR has the XT-KBR beamsplitter installed (11000-375cm^-1).

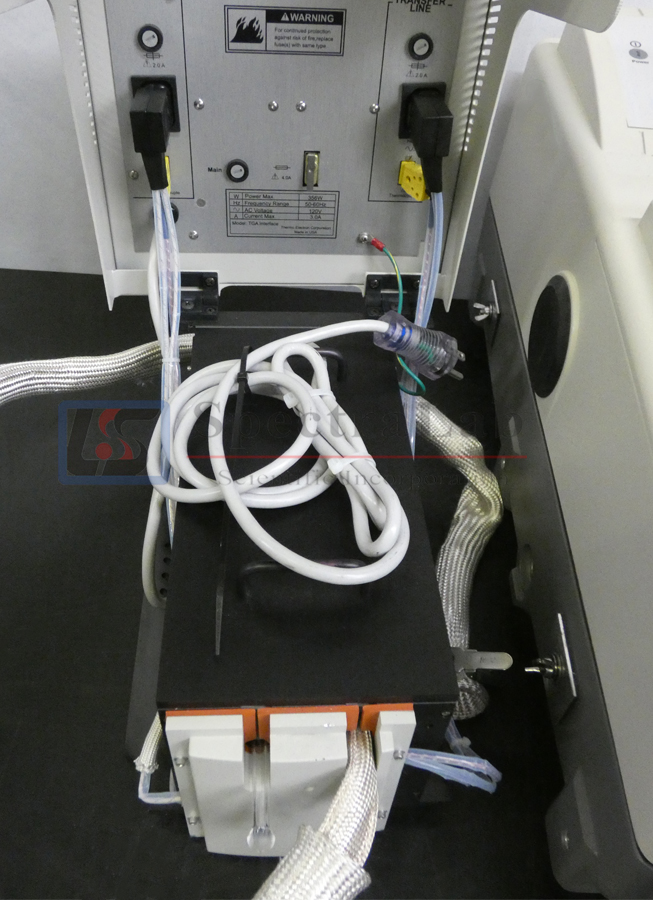

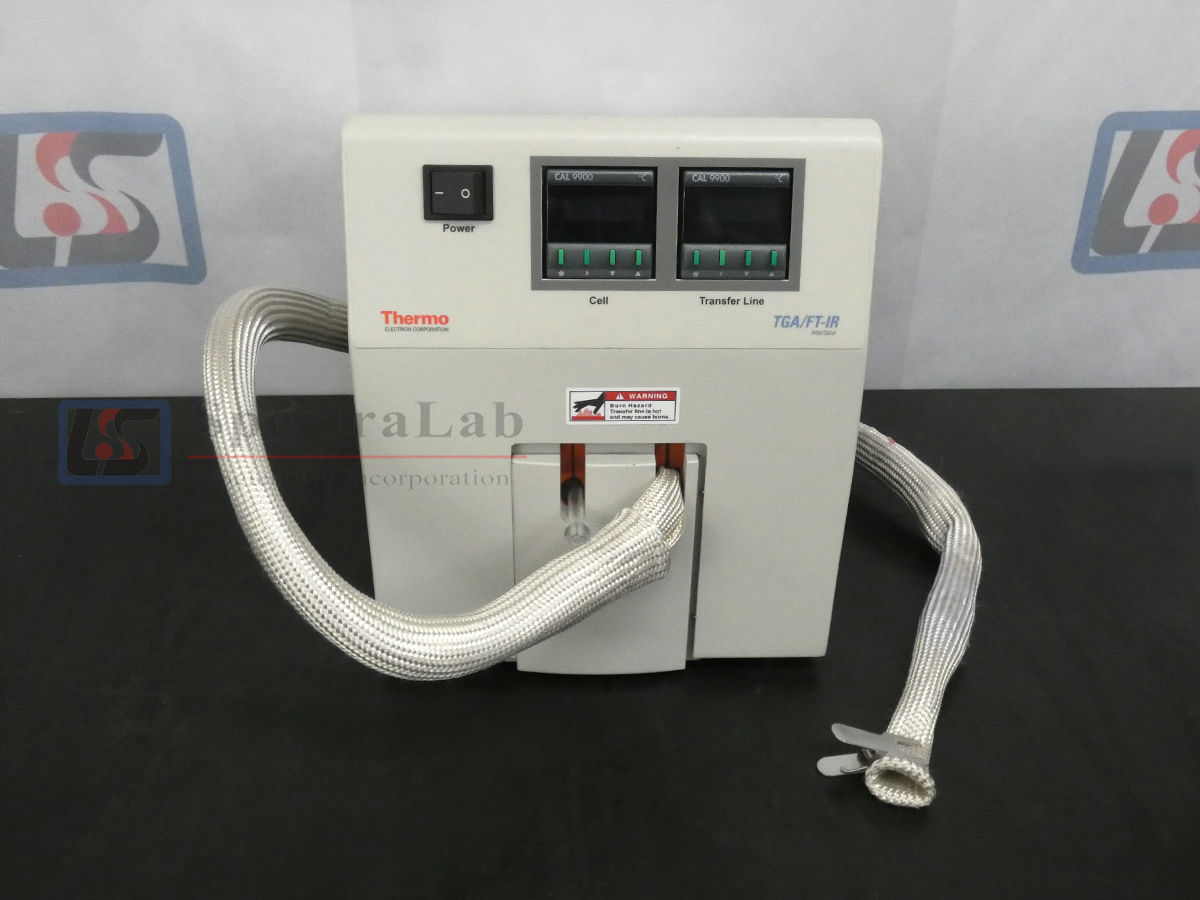

The TGA interface/module is equipped with a built-in, temperature-controlled flow cell and must be connected to a thermogravimetric analysis (TGA) furnace. You can analyze the evolved gases from TGA experiments using the OMNIC Series software. The TGA interface is usually mounted in the sample compartment of an AEM; the TGA module is usually installed on the side of the spectrometer, leaving the AEM or spectrometer sample compartment free for other experiments and accessories.

Features

• ETC EverGlo source for long life
• Dynamic Alignment ensuring exceptional high-resolution lineshapes
• USB 2.0 interface
• Pinned-in-place components ensuring stability, and user swappable components.
• Full integration with the OMNIC software, allowing the user to focus on their studies.
• Configurable for multiple spectral ranges (far-IR to UV-Vis)
• Five external beam options
• Wide selection of detectors

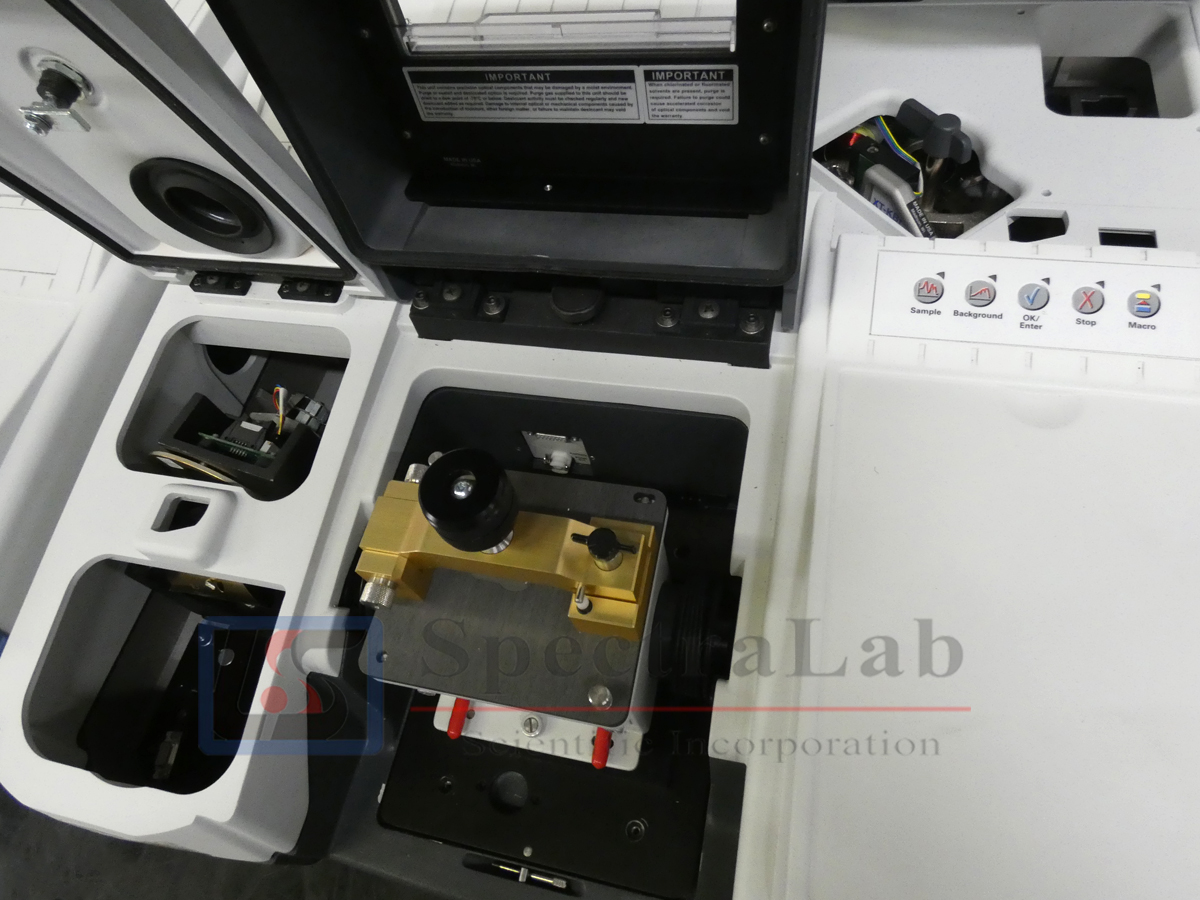

The Golden Gate has proven to be the world’s most robust and versatile Single Reflection Diamond ATR accessory for analytical sampling under extreme conditions. It is the only Diamond ATR accessory that is precision designed and engineered to perform at cryogenic temperatures down to -150°C and at elevated temperatures up to 300°C with added feature of supercritical fluid pressures up to 6000 psi using the appropriate top plates.

The standard unit is provided with a 2 x 2mm 45 degree single reflection Type IIIa Diamond brazed within a Tungsten Carbide sample mount. The optical path directs the energy to an active sample area of 0.60mm in diameter. The accessory includes a novel swing bridge with a mounted Sapphire anvil for controllable and reproducible high pressure contact up to 180 lbs. The anvil has a clear working distance of 6mm for macro samples and is mounted into a non-rotating clamp to avoid sample shear and heating by friction. ZnSe is provided as the standard infrared transmitting focusing element with KRS-5 available for extended spectral performance.
