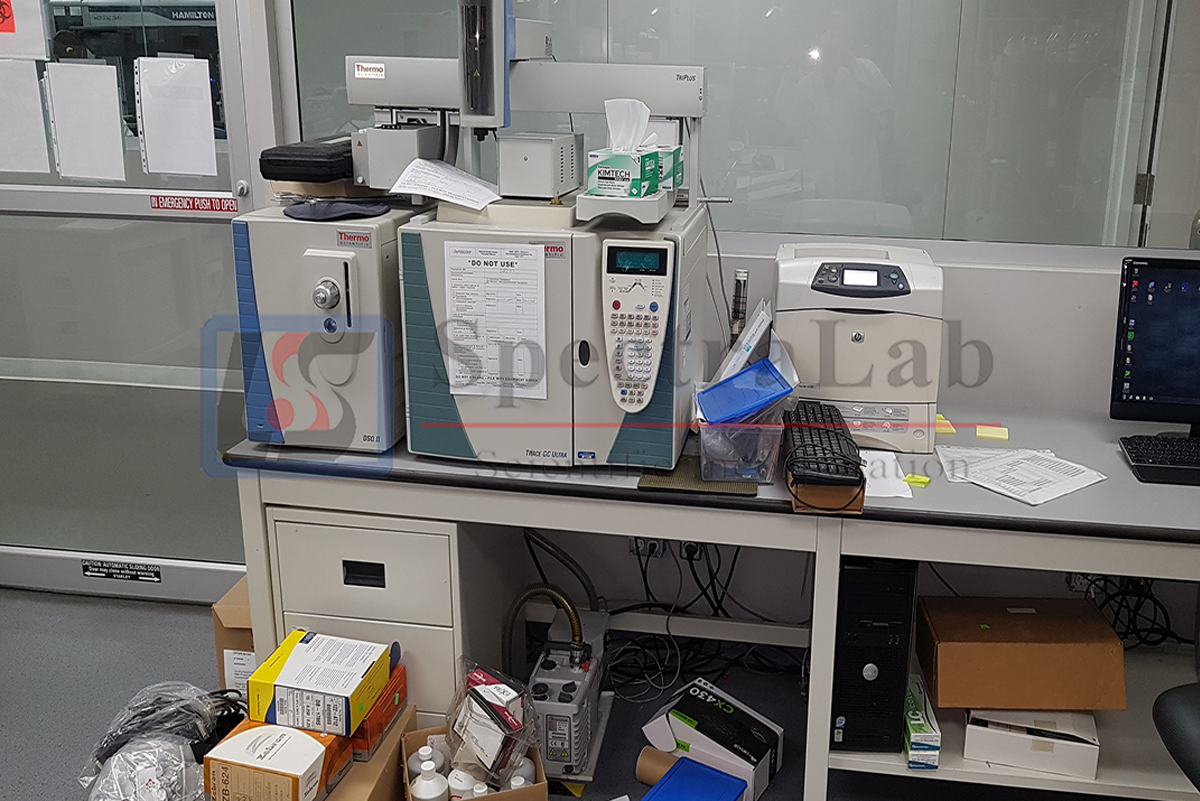

Thermo Scientific Trace GC Ultra with DSQ II GC/MS
3-12 month warranty
Service options & contracts available
To sell, trade-in, or service your equipment
How do we Refurbish Lab Equipment?
Looking for further assistance? Contact Us
Request Quote/ Offer
Estimate Shipping Time
Canada & U.S.: 3-5 business days
International: 5-10 business days
Tariff-Free Shipping to the U.S.!
This system includes:
- (1) Thermo Scientific Trace GC Ultra
- (1) Thermo Scientific DSQ II Single Quadrupole GC/MS
- (1) Thermo Scientific TriPlus Autosampler
- Rough Pump
- PC with data
The Thermo Scientific TRACE GC Ultra multi-channel gas chromatograph was developed for the evolving requirements of modern laboratories. With the most complete range of proprietary inlets, sensitive detection systems, smart accessories, and ancillary devices, the Ultra platform features unique technologies that raise the standards of speed, sensitivity and separation in gas chromatography.
Features:
- Independently heated valve housing able to accommodate up to 4 heated/2 unheated gas valves, 8 pressure regulators, 8 needle valves, In/out ports, packed and capillary columns
- Range of Large Volume techniques overcomes sensitivity boundaries of conventional GC
- Linear heating rate up to 1200°C/min. reduces sample run times for crude oils, pesticides and hydrocarbons determination as well as food and flavor characterizations
- High temperature programming up to 20°C/s and fast cooling times of approximately one minute
- Precise retention time control
- Large Volume split/splitless technique using standard splitless injector extends sample injection volume of conventional GC methods without additional investment, training or revalidation of methods
The DSQ II has the industry’s fastest scanning capability by a single quadrupole system with scan speeds greater than 11,000 amu/sec. The DSQ II comes standard with advanced mixed scan mode capabilities for sequential selected ion monitoring (SIM) and full scan analysis. This feature offers the enhanced sensitivity of SIM with the added confidence of full-scan fingerprints. Powerful Xcalibur software provides complete control of the GC/MS system, while application-specific software such as EnviroLab Forms 2.0, ToxLab Forms 2.0, and ToxLab 2.0 provide processing, data control and work flow functions for today’s busy laboratories.
Features:
- Multiple level temperature program with 7 ramps and 8 levels from .1-120 C/min
- Eight independent, heated zones for individual control of injectors and detectors plus auxiliary zones
- Superior oven cool-down for inc sample throughput (450 to 50 in under 250 seconds)
- Capillary Split/Splitless injectors with digital pressure and flow control, inc gas saver
- Max oven temp 450 C
- Xcalibur Data System
- Mass range of 1 – 1,050 amu
Expand automated capabilities beyond liquid, headspace, and solid phase microextraction (SPME) injections. The advanced, built-in robotics of the Thermo Scientific TriPlus Autosampler deliver exceptional precision, unprecedented sample handling flexibility, and reliable unattended operation. Accurate and repeatable sample preparation and introduction are essential to achieving the highest quality GC/GC-MS results. Automate the entire workflow, from standard dilution to injection, and improve the precision and reproducibility of your data, and your lab productivity.
Specifications:
| For Use With (Equipment) | For Liquid Injection with Standard X-Axis Length |
|---|---|
| Type | TriPlus RSH Autosampler for Liquid Injection with Standard X-Axis Length |
| Sample Capacity | 4608 Well Plates, 840 × 0.5 mL or 0.7 mL Vials, 648 × 2 mL Sample Vials, 240 × 10 mL or 20 mL Vials |
| Injection Mode | 8 Fully Customizable Method-Specific Injection Mode Presets |
| Injection Speed | Selectable from 0.1 μL/sec. to 2000 μL/sec. |
| Injection Volume | 0.1 to 10,000 μL |
