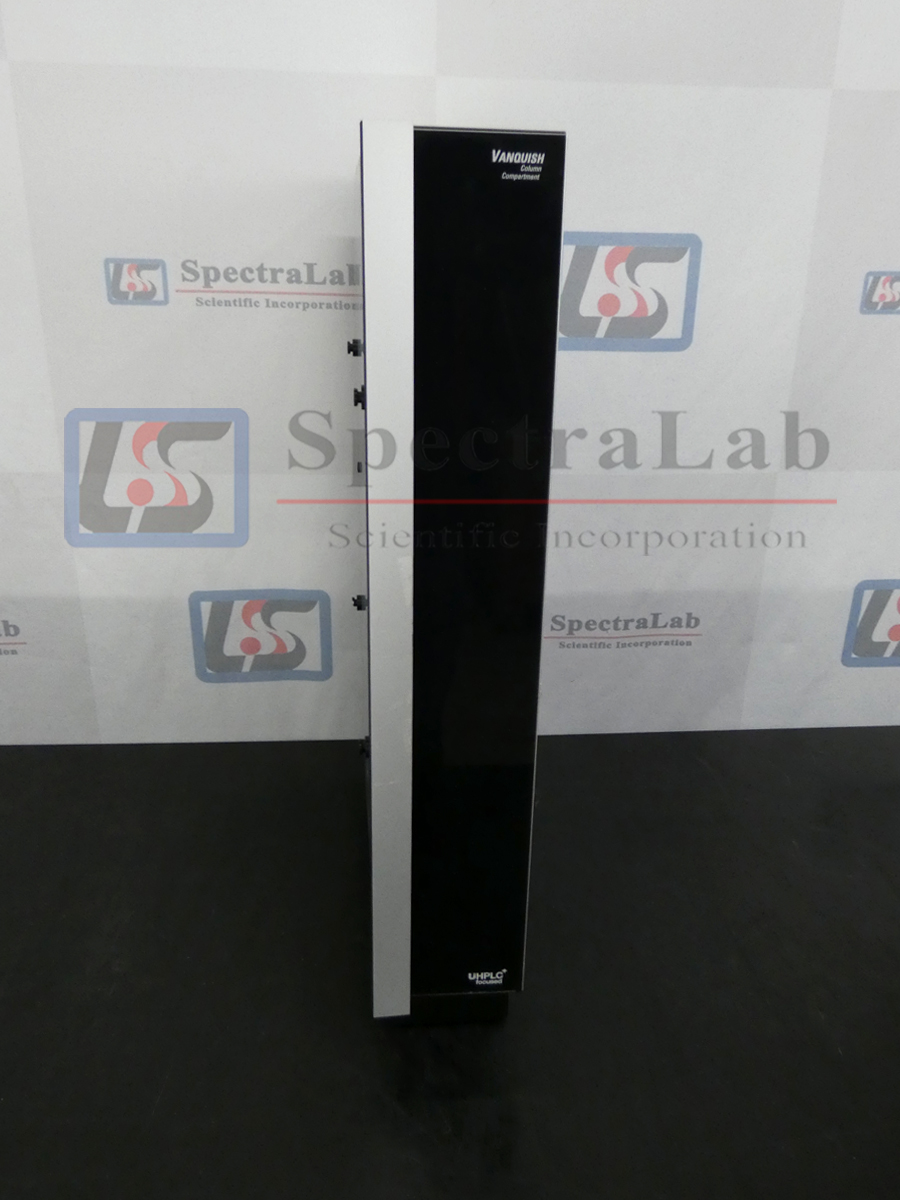

Thermo Scientific Vanquish Horizon Column Compartment H
3-12 month warranty
Service options & contracts available
To sell, trade-in, or service your equipment
How do we Refurbish Lab Equipment?
Looking for further assistance? Contact Us
Request Quote/ Offer
Estimate Shipping Time
Canada & U.S.: 3-5 business days
International: 5-10 business days
Tariff-Free Shipping to the U.S.!
The Thermo Scientific Vanquish Horizon Column Compartment H model VH-C10-A includes the following main features:
- Column thermostatting in a temperature range from +5 °C to 85 °C(VC-C10) or +5 °C to 120 °C (VH-C10)•Column cooling by a maximum of 18 °C from the ambient temperature, with the lower temperature limit being +5 °C
- Support of still air and forced air thermostatting modes

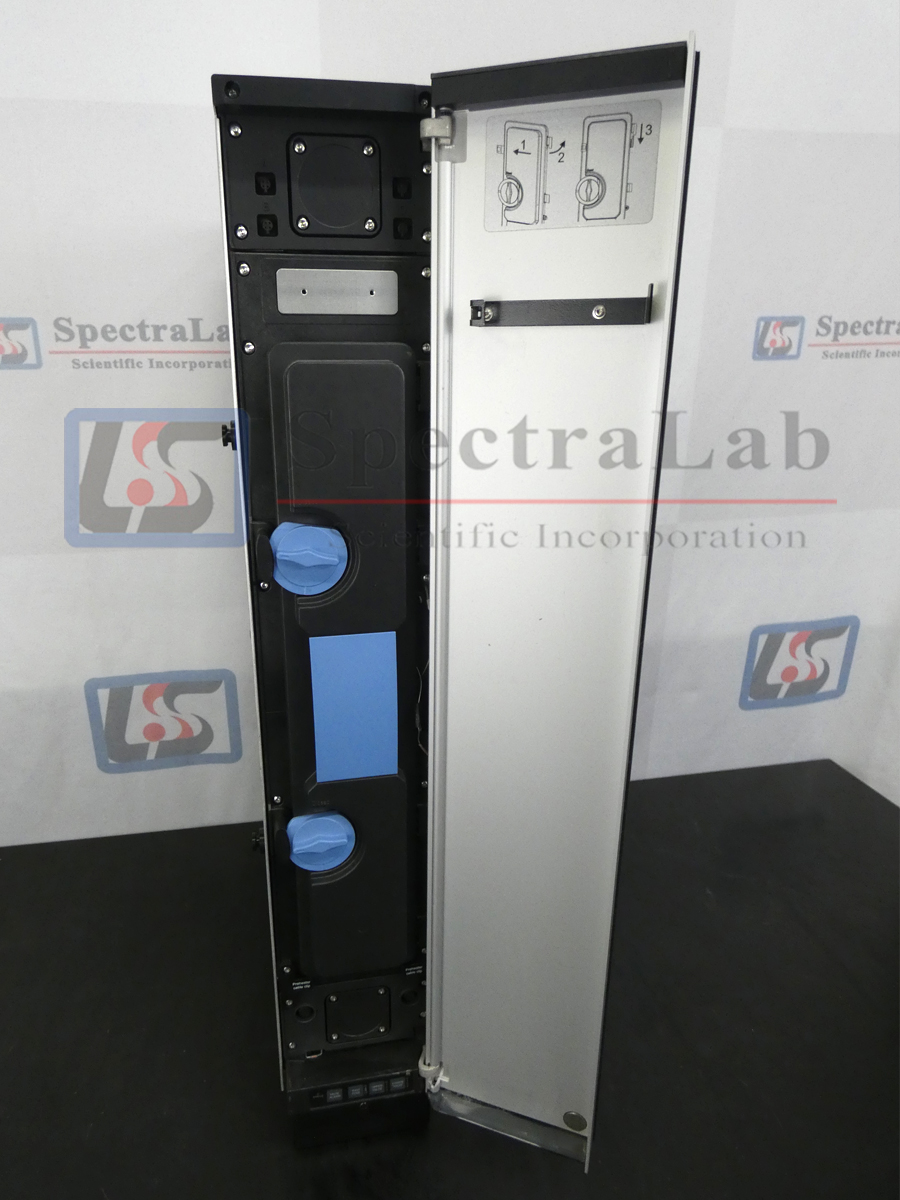

- Column chamber providing room for two columns, with pre-heaterand pre-column as required by the application
Maximum possible length of the entire assembly: 387 mm
- Column identification for Good Laboratory Practice (GLP) compliant documentation of the column type and major column properties
- As an option, the column compartment can also hold:
- Column switching valves to quickly change between different columns ̈
- Passive pre-heater for thermostatting of the eluent before it enters the column ̈
- Active pre-heater with proper temperature control for warming up the eluent to a settable temperature before it enters the column
- Post-column cooler to cool down the eluate before it flows into the detector
Specifications:
| Capacity | 2 column slots |
| Pressure range | VC-C10: 2 – 70 MPa (20 – 700 bar, 290 – 10100 psi)
VH-C10: 5 – 151 MPa (50 – 1517 bar, 700 – 22002 psi) |
| Temperature range (column chamber) | VC‑C10: 5 °C – 85 °C, max. 18 °C below ambient
VH‑C10: 5 °C – 120 °C, max. 18 °C below ambient |
| Temperature accuracy (column chamber) | ±0.5 °C (up to 80 °C) |
| Temperature stability (columnchamber) | ±0.05 °C |
| Temperature precision (column chamber) | ±0.1 °C |
| Heat up time (column chamber) | from 20 °C to 50 °C in less than 15 minutes ±1 °C
from 25 °C to 40 °C in 5 minutes (typically) ±1 °C |
| Cool down time (column chamber) | from 50 °C to 20 °C in less than 15 minutes ±1 °C |
| Column switching valves | 2-position-6-port valve
6-position-7-port multi-position valve |

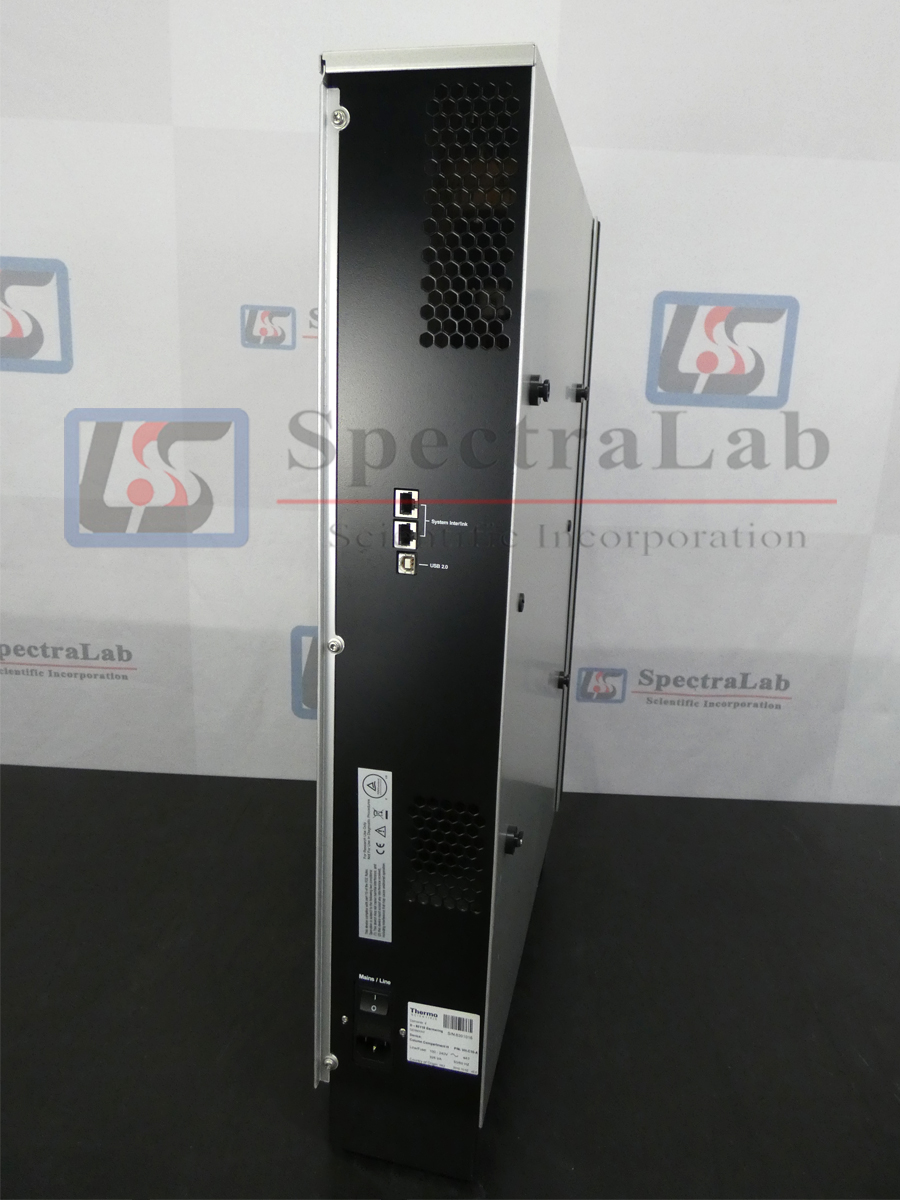

| Communication | 1 USB port (USB 2.0, “B” type connector) |
| System Interlink | 2 system interlink ports (RJ45-8 connectors) |
| Control | Chromeleon 7
The device can be operated also with other data systems. For details, contact the Thermo Fisher Scientific sales organization. Keypad with 4 buttons for performing certain functions directly from the device. |
| Materials in the flow path | Valve: ceramic/titanium; capillaries: MP35N or stainless steel (for details, see the pre-heater and post-column cooler specifications)
NOTICE For information about the chemical resistance of materialsrefer to the technical literature. |
| Safety features | VH-C10-A-03, VC-C10-A-03: Liquid leak sensor
VH-C10-A/-02: Liquid leak sensor; Gas leak sensor |
| Good Laboratory Practice (GLP)features | Predictive Performance functions for scheduling maintenance procedures based on the actual operating and usage conditions of the device.
All system parameters logged in the Chromeleon Audit Trail. |
Active pre-heater:
| Temperature range | 40 °C to upper temperature limit of column chamber
5 °C above environment and / or eluent temperature at active pre-heater input |
| Wetted parts | MP35N |
| Biocompatible | yes |
| Heating performance | 80 °C at 2.5 mL/min
120 °C at 1 mL/min |
| Temperature accuracy | ± 2 °C (up to 80 °C) |
| Temperature stability | ± 0.5 °C |
| Temperature precision | ± 1 °C |
Passive pre-heaters:
| Temperature range | Same as column chamber |
| Wetted parts | MP35N |
| Biocompatible | Yes |
| Temperature range | Same as column chamber |
| Wetted parts | Stainless Steel |
| Biocompatible | No |
Post-column cooler:
| Temperature range | 40 °C to 80 °C |
| Wetted parts | MP35N |
| Biocompatible | yes |
| Cooling performance | down to 50 °C at 2 mL/min and 120 °C compartment temperature |
| Temperature accuracy | ± 2 °C (up to 80 °C) |
| Temperature stability | ± 0.5 °C |
| Temperature precision | ± 1 °C |
