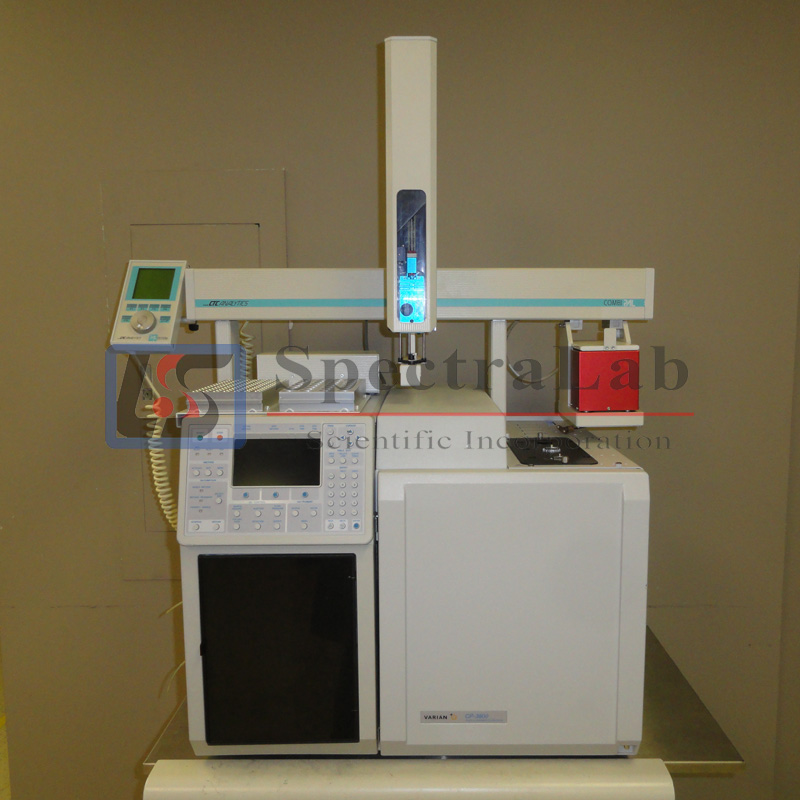

Varian CP-3800 GC System with FID, TSD and CTC Combi PAL

This Varian CP-3800 GC System comes with:

*Thermionic Specific Detector (TSD)

*Flame Ionization Detector (FID)

*CTC Combi Pal

*PC with Suitable software and all essential cables required for full operation

They are all in excellent condition. They have been tested at SpectraLab Scientific.

A 90 day warranty is included.

Specifications

Dimensions and Weights

-Size: 53 cm (h) x 66 cm (w) x 56 cm (d)

– Weight: 43 kg

Environmental Conditions

-Operating temperatures: 10°C to 40°C

-Operating humidity (relative): 5% to 95%

-Line voltage requirements: 101V, 120V, 230V (±10% nominal)

Column Oven

-Dimensions: 28 cm (w) x 20 cm (d) x 28 cm (h)

-Temperature range: ambient +4 °C to 450 °C

-With liquid N₂: -99 °C to 450 °C

-With liquid CO₂: -65 °C to 450 °C

-Temperature program ramps/holds: 7/8

-Maximum temperature ramp rate: 100 °C/min for all voltages

-Cool down rate: 400 °C to 50 °C in 4.5minutes

-Temperature set-point resolution: 1 °C

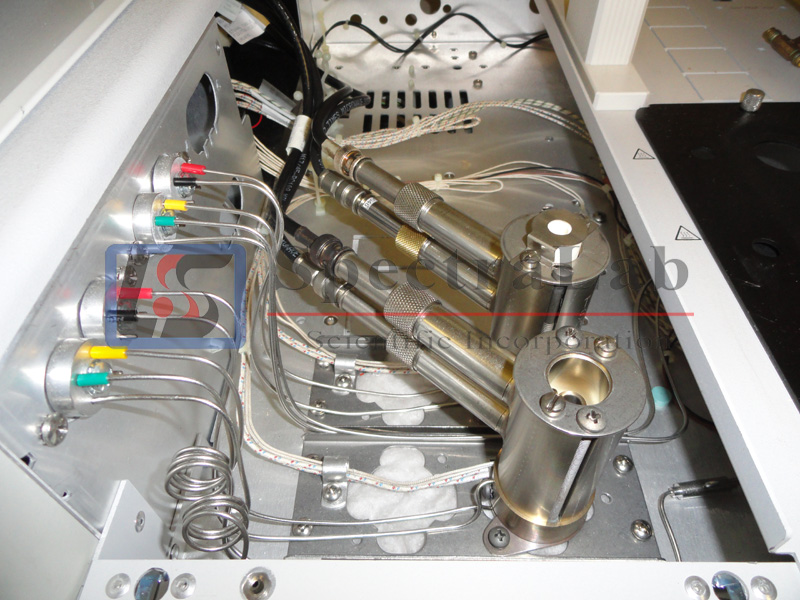

Injector Options

-Maximum injectors: three operating concurrently

-Pneumatics: manual or electronic flow control (EFC)

-Columns: capillary columns standard with optional packed column adapter

-Injectors

-CP-1177Split/Splitless

-1079 Programmable Temperature Vaporizing (PTV)

-1061 Flash Megabore/Packed

-1041On-Column Megabore/Packed

CP-1177 Split/Splitless

-Pressure range: 0-100 psi

-Total flow: 500 rrillrnin at 10 psi

-Maximum temperature: 450 °C

-Split range: 1-10,000 (column dependent)

1079 Programmable Temperature Vaporizing (PTV)

-Pressure range: 0-100 psi

-Total flow: 500 mL/min at 10 psi

-Temperature range

–99 °C to 450°C liquid N₂

–65 °C to 450°C liquid CO₂

-Maximum temperature ramp rate: 180 °C/min

-Temperature ramps: 4

-Split range: 1-10,000 (column dependent)

-Operational modes

-Temperature ramped splitless

-Coldon-column

-Large Volurne Injection

-Split and splitless

-ChromatoProbe solid sample introduction:

optional

1061 Flash Megabore/Packed

-Pressure range: 0-100 psi

-Total Flow:50 mL/min (Type 3 EFC)

500mL/min (Type 4 EFC)

-Maximum temperature: 450 °C

1041 On-Column Megabore/Packed

-Pressure range: 0-100 psi

-Total Flow:50 mL/min (Type 3 EFC)

500mL/min (Type 4 EFC)

-Maximum temperature: 450 °C

FID

-Maximum temperature: 450 °C

-Detectivity:2 pg C/see

-Linear dynamic range: 10⁷

-Patented ceramic -Flame tip: standard

-Flame-out detection/auto re-ignition: standard

TSD

-Maximum temperature: 450 °C

-Detectivity:

N: 100 fg N/sec (Azobenzene)

P: 100 fg P/sec (Malathion)

-Maximum temperature: 450 °C

-Linear dynamic range:

N: 10⁵

P: 10⁴

-Self-aligning bead: standard

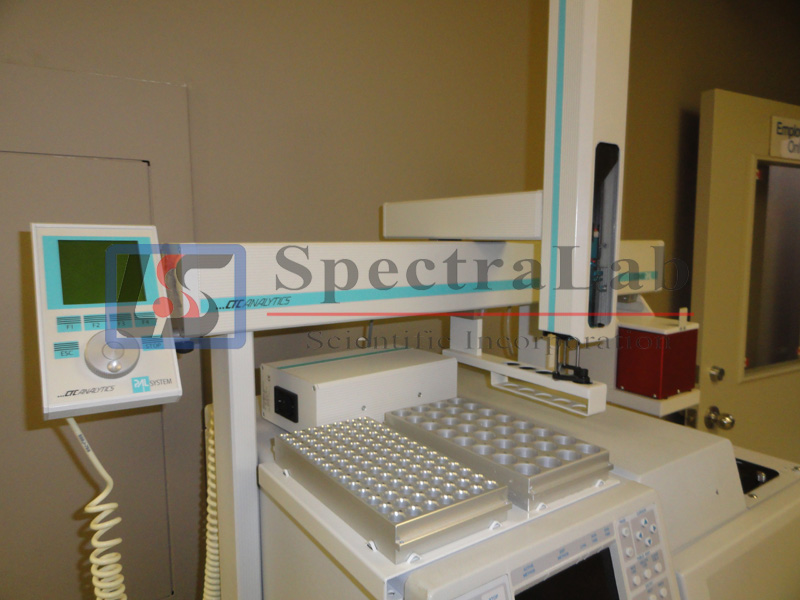

Combi PAL AutoSampler

-Sample trays: two standard and expandable to four

-Tray types: 98 x 2mL vials; 200 x 1 mL vials;

32 x 10 m 1120 mL vials; and 96-well plates

-Dual and duplicate mode: standard

-Internal standard: standard

-Modes of Operation: liquid, standard; heated headspace, optional;and SPME, optional

-Sample heating and cooling: standard

-Optional modules:additional sample trays, micro-well plate holders, wach station, SPME fiberbake-out station, dilutor, barcode readers, and flowcell
