Waters AutoPurification System with Waters 2996 PDA
3-12 month warranty
Service options & contracts available
To sell, trade-in, or service your equipment
How do we Refurbish Lab Equipment?
Looking for further assistance? Contact Us
Request Quote/ Offer
Estimate Shipping Time
Canada & U.S.: 3-5 business days
International: 5-10 business days
Tariff-Free Shipping to the U.S.!
Features:
- Take the complexity out of purification with our versatile solutions that are capable of purifying micrograms to multi-gram quantities.
- Automatically process hundreds of samples – or just a few.
- Robust and reliable systems improve your ability to manage increasing workload demands, including unattended instrument operation.
- Flexible configurations enable easy scale-up from analytical to preparative chromatography.
- FractionLynx Application Manager automates the collection of detected fractions, tracks samples and fractions, and then presents the data in an easy-to-view format. The software can trigger collection using a variety of detector signals including UV/Visible, Evaporative Light Scattering (ELS), MS,and analog.
- User-friendly console and software features help you manage solvents and samples, whether you do manual or automated injections.
- Proprietary Optimum Bed Density (OBD) Column design offers the highest sample loading and unmatched column stability.
- Easy-to-upgrade systems help you bring the latest technologies to your lab.

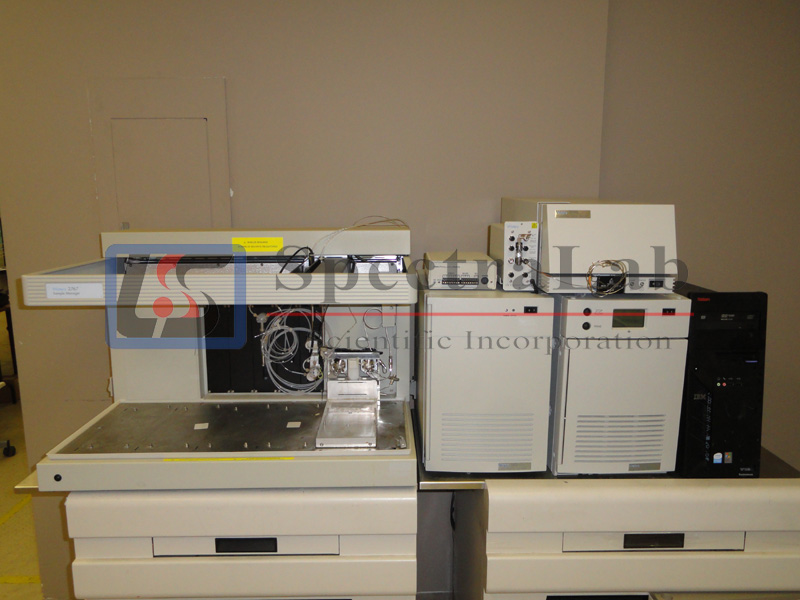

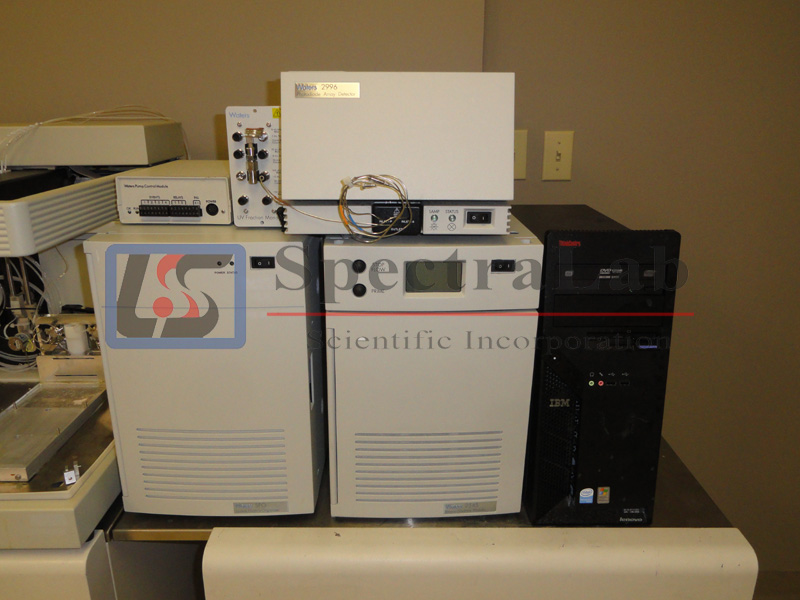

This Waters AutoPurification System with the 2996 PDA comes with:
- Waters 2767 Sample Manager
- Waters Pump control Module
- Waters 2545 Binary Gradient Module
- Waters SFO system Fluidics Organizer
- Waters 2996 Photodiode Array Detector
- Waters UV Fraction Manager
- PC with Suitable software and all essential cables required for full operation
They are all in good condition and They have been tested at SpectraLab Scientific.
A 90 day warranty is included.
|
Item |
Specification
|
|
Wavelength range |
190 to 800 nm |
|
Light source |
Prealigned, Deuterium lamp |
|
Spectral Resolution/Optical Bandpass |
1.2 nm per photodiode with a total of 512 photodiodes, digital and optical (3D-mode) |
|
Digital Resolution |
1.2 nm – 600 nm (2D mode) |
|
Wavelength accuracy |
±1 nm |
|
Linearity range |
5% at 2.0 AU, propylparaben, at 256 nm |
|
Spectral resolution |
1.2 nm |
|
Baseline noise |
±1.5 × 10–5 AU peak-to-peak, dry, at 254 nm |
|
Drift |
1 × 10–3 AU/hour at 254 nm (after warm-up) ∆T ≤ 1°C per hour |
|
Operation temperature |
4 to 40 °C (39 to 104 °F), not to vary more than 1 °C per hour (to prevent drift) |
|
Relative humidity |
20 to 80%, noncondensing |
|
Power |
Grounded ac, 100 to 240 Vac |
|
Power requirements |
100-230 VAC |
|
Frequency range |
50 to 60 Hz |
|
Path Length |
10 mm (standard analytical cell) |
|
Cell volume |
8 µl (standard analytical cell) |
|
Pressure Limit |
1000 psi (standard analytical cell) |
|
Wetted materials |
316 stainless steel, fused silica Tefzel |
|
Dimensions |
Width: 11.5 in. (29 cm) Depth: 24 in. (61 cm) Height: 8.5 in. (22 cm) |
|
Weight |
31.5 lbs (14.3 kg) |
