Waters Sample AutoPurification System with Waters 3100 Mass Detector

System including:

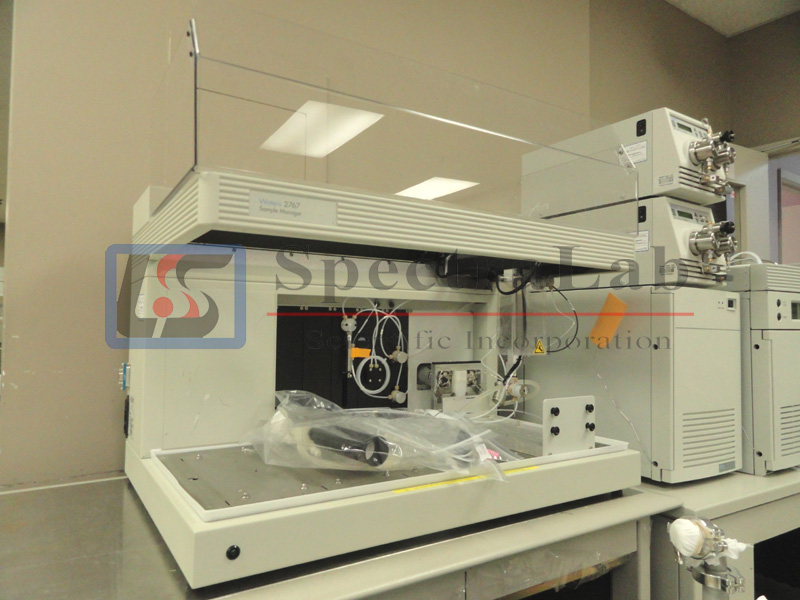

Waters 2767 Sampler Manager

• Optional sample formats for injection and collection; microtiter plates (up to 15), test tubes (up to 580), scintillation vials or conventional autosampler vials
• Collection of sample fractions sequentially or with one-to-one mapping of sample and fraction
• Self-venting probes that perform accurate sample injections from tightly covered containers
• High velocity wash pump (>30 mL/minute flow) to rapidly and efficiently flush the sampling needle and tubing while maintaining high sample throughput
• Optional fume hood for ventilation of hazardous vapours

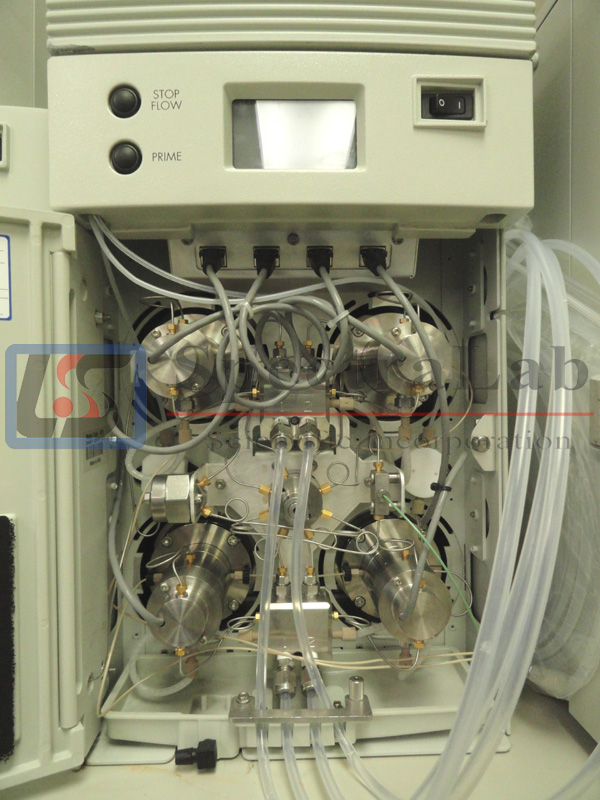

Waters 2545 Binary Gradient Module

• Operates at analytical and preparative scales
• Performs between flow rates of 0.50 to 150.00 mL/min with a pressure up to 6000 psi
• Integrates solvent selection valves on each solvent delivery channel to allow for rapid solvent changeovers and system purges
• Streamlines the purification process via MassLynx™ Software control using FractionLynx™ Application Manager

Waters System Fluidics Organizer SFO

The system fluidics organizer (SFO or FO) houses the columns, the pump control module, and either the primary fraction flow splitter for MS-directed systems or a UV fraction manager for UV-directed systems. An Ethernet switch in the system fluidics organizer serves as a connection point for the networked modules.

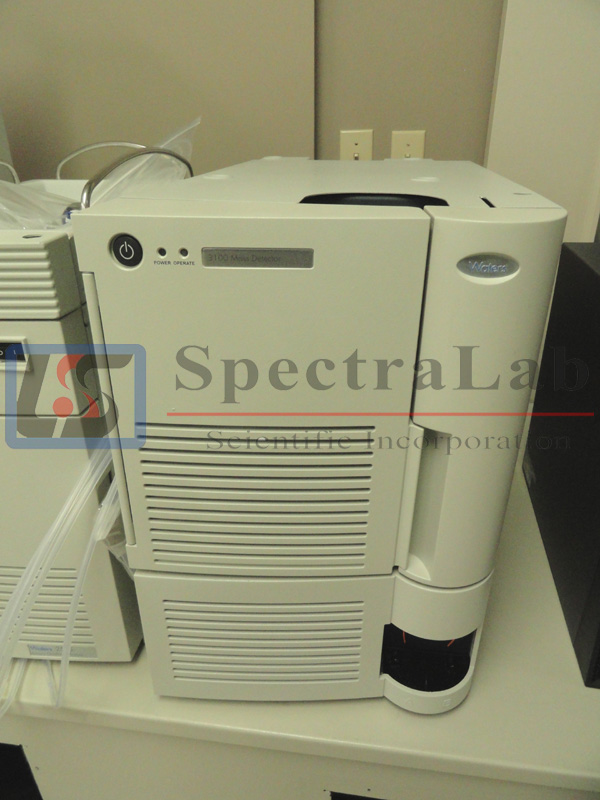

Waters 3100 Mass Detector

The Waters 3100 Detector is a single-quadrupole, atmospheric pressure ionization (API) mass spectrometer. Designed for routine UPLC®/MS analyses, it can scan at speeds up to 10,000 Da/s. Waters provides these ion sources with the instrument as standard equipment:

• ZSpray™ (dual orthogonal sampling) interface.
• Multi-mode ESCi® ionization switching for atmospheric pressure chemical ionization (APCI) and electrospray ionization (ESI).

Optional ionization modes are IonSABRE™ APCI and APPI (atmospheric pressure photoionization).

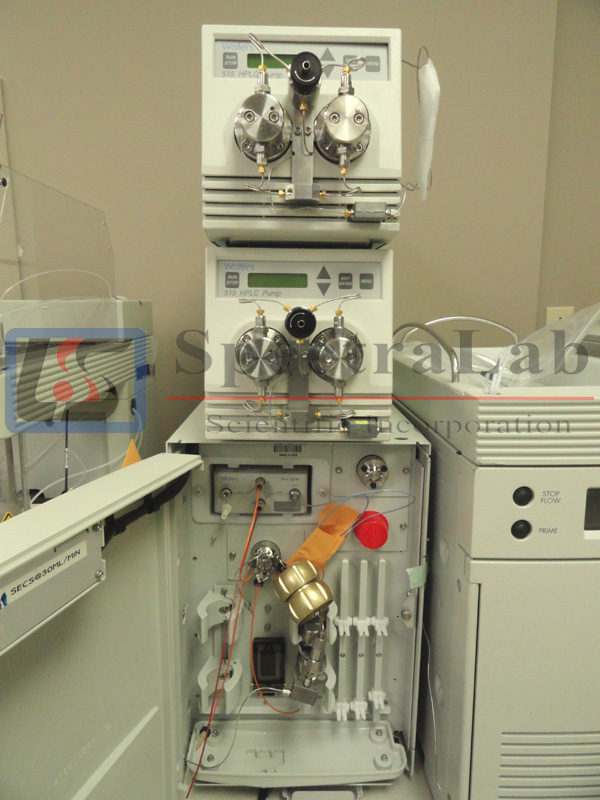

Waters 515 Pump (Qty 2)

The 515 HPLC pump is a programmable, free-standing HPLC pump available in isocratic, gradient, and semi-preparative configurations:

• Precise stepper motor control (48 steps/µL resolution) of dual reciprocating pistons
• Non-circular drive gears provide smooth, uniform eluent delivery
• User-programmable flow rate calibration and compressibility compensation factors ensure straightforward pump operation qualification
• Tests to retention time variations of less than 0.1% for highly reproducible peak performance
• Easy-to-read display and keypad for error-free programming
• Automatic purging and flow calibration

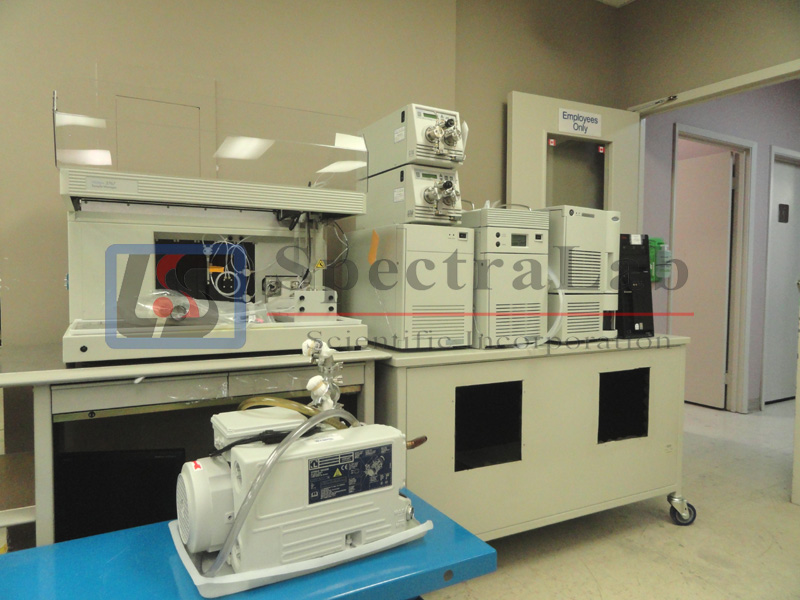

This Waters Sample AutoPurification System is in good condition. a PC with Masslynx Software installed,a rough pump and LC starter kit is included. It has been tested at SpectraLab Scientific.
