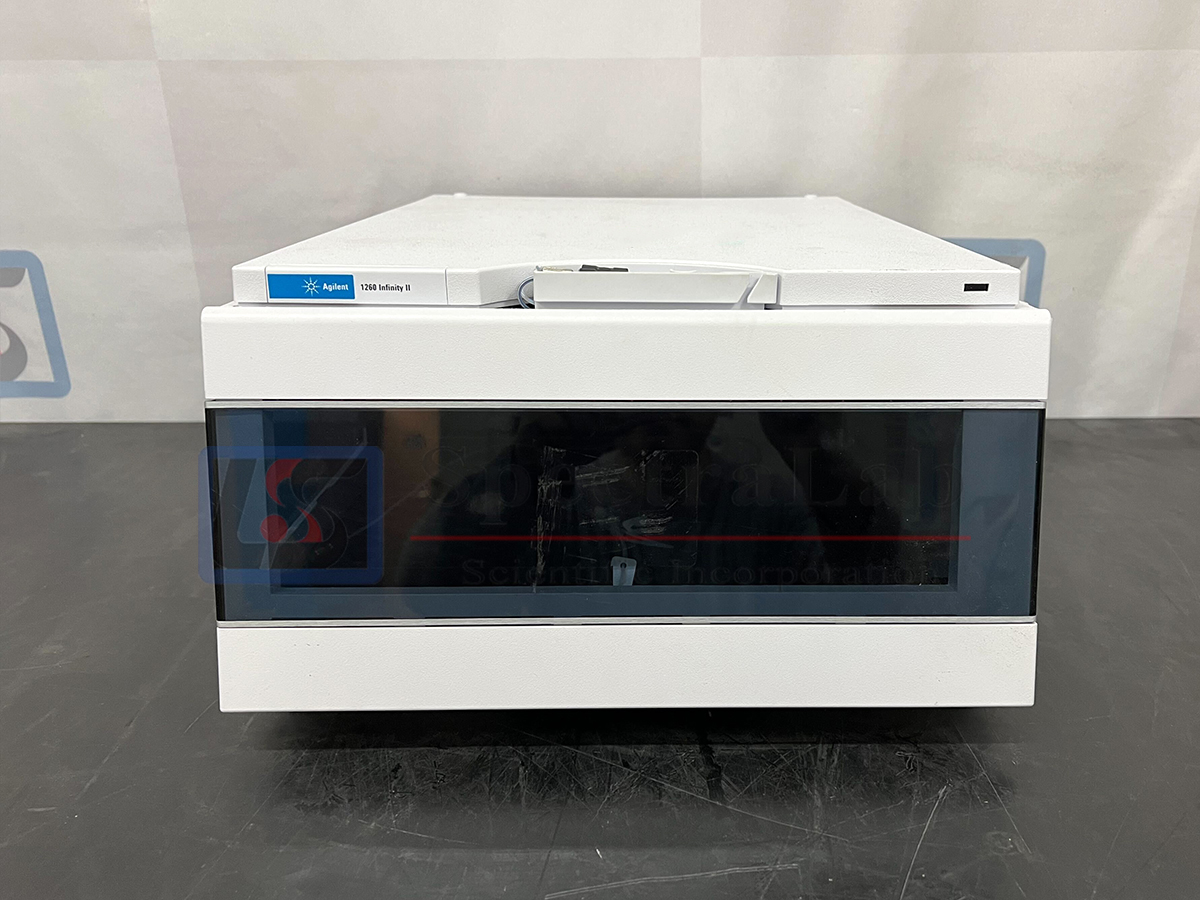

Agilent 1260 Infinity II G1364F Analytical Scale Fraction Collector

Product Description

The 1260 Infinity II Analytical Fraction Collector is designed for optimized fraction collection at flow rates between 100 μL/min and 10 mL/min. This module fits within any Infinity II LC stack and is ideal for compound purification in the nanogram to milligram range using columns with internal diameters between 2.1 and 9.4 mm. For lower flow rates and smaller column inner diameters, a low-dispersion tubing kit is available, which helps to maintain the post-column integrity of the separated peaks.

Unique fraction delay sensor technology determines fraction delay volumes automatically and ensures that fractions are collected just-in-time without the need to collect extra volume. The optional 1260 Infinity II Multicolumn Thermostat enables precise control of column temperature from cooling down to 10 degrees below ambient up to 85 °C for applications involving thermally-labile chemical or biochemical samples.

Features (G1364F)

Purification efficiency

• Lowest delay volumes for minimum peak dispersion and carryover
• Automated delay calibration facilitates highest fraction purity while maintaining high-precision sample recovery

Instrument efficiency

• Per module collection of up to 216 fractions in glass tubes with 4 outer

  diameters of tubes available, or in microtiter plates

• Multiple collection modes with fraction triggering based on time, peak, or mass for exact collection of required fractions

Laboratory efficiency

• Expandable capacity up to 864 fractions within the same footprint
• Smooth upgrade paths allow you to increase capacity based on demand
• Forced fume extraction enables
