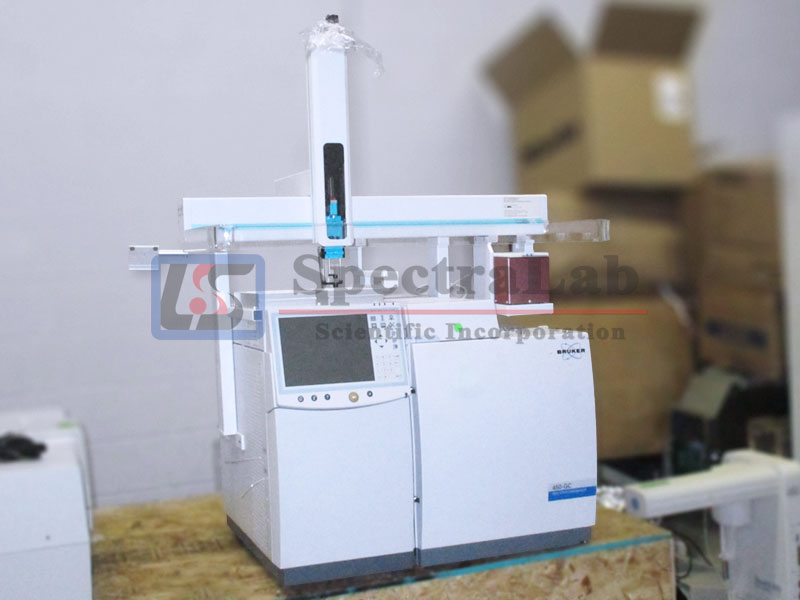

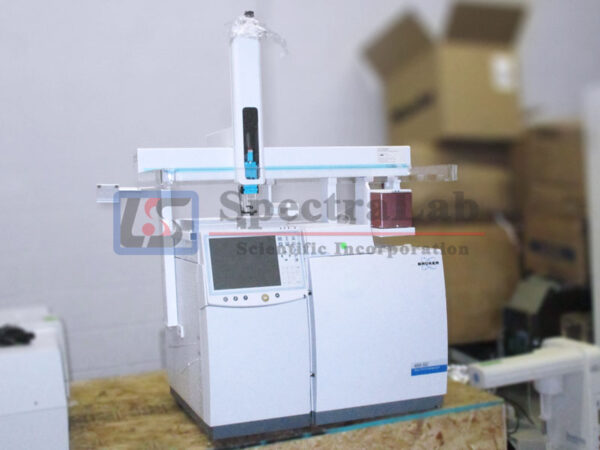

Bruker 450-GC Gas Chromatograph & CTC Combi PAL Autosampler

The Bruker corporation 450 GC is a powerful sample preparation and analysis tool for the Analytical Chemist.

Dimensions and Weights

• Size*: Height: 53 cm (20.9 in.),
• Width: 66 cm (26.0 in.),
• Depth: 56 cm (22.0 in.)
• Weight*: 43 kg (95 lb)

* Typical values

Environmental Conditions

Operating temperatures: 10 °C to 40 °C.

Operating humidity (relative): 5 % to 95 %

Line voltage requirements: 101 V, 120 V, 230 V

(±10 % nominal)

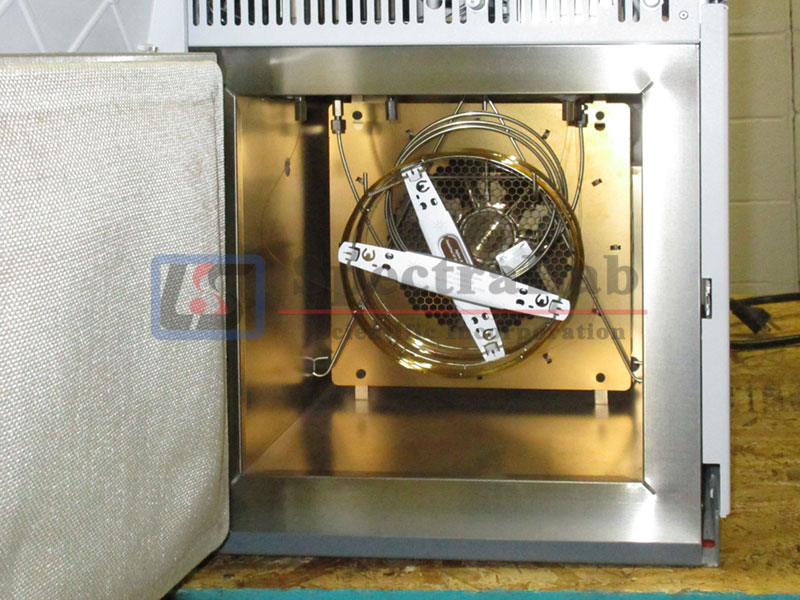

Column Oven

Dimensions: 28 cm (w) x 20 cm (d) x 28 cm (h)

Temperature range:

Ambient +4 °C to 450 °C

With liquid N2: -100 °C to 450 °C

With liquid CO2: -60 °C to 450 °C

Temperature program ramps/holds: 24/25

Maximum temperature ramp rate: 120 °C/min for all voltages

Cool down rate: 400 °C to 50 °C in 4.5 minutes

Temperature set-point resolution: 1 °C

General Specifications

GC Control:

External events (digital output):

• 7 standard
• 8 optional

Max number of timed events: 15 x 99

Heated zones: 7 (including column oven)

Methods:

• Maximum stored methods: 50 (max 30 alphanumeric characters)

Logging:

• Run log file (stored with the chromatogram when using Galaxie or MS Workstation)
• Error log file

Local Display:

• TFT full color screen
• VGA resolution (640 x 480)
• Size 8.4″ (20 cm)

ocal Control:

• Touch screen
• Hard keys

Local automation:

• Method lines: 25

Modes:

• Infinite looping
• Dual and duplicate injection

System operational qualities:

• High Inertness: sample path UltiMetal treated, optional
• Low level detection assurance: purged valves, optional

This Bruker 450-GC Gas Chromatograph & Autosampler set is in good condition. It has been tested here at SpectraLab Scientific.
