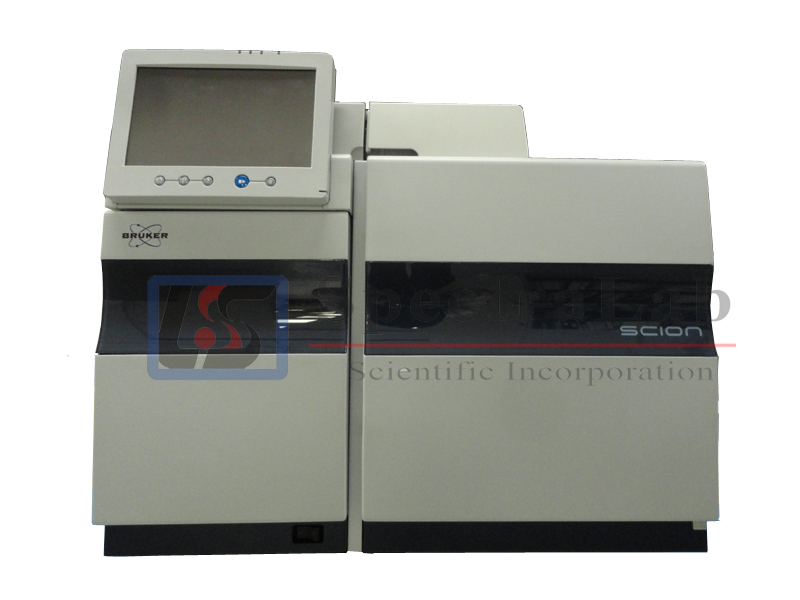

Bruker scion 456-GC Gas Chromatograph with FID

The SCION 456 – GC provides industry-leading flexibility by supporting Max 3 injectors and 4 detectors,

including the mass spectrometer, providing our users a rapid time-to-benefit advantage.

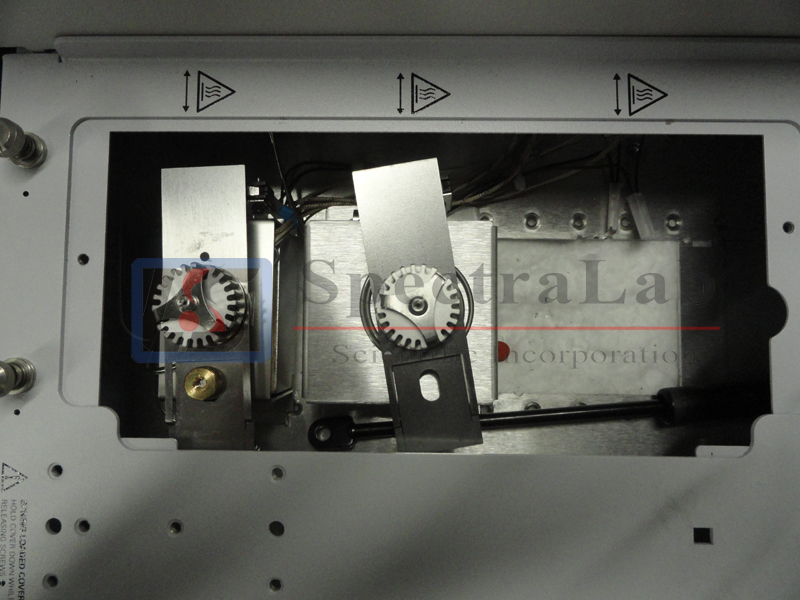

S/SL Split/Splitless Injector

Pressure range: 0-150 psi

Total flow: 500 mL/min for N2/Ar

1500 mL/min for He/H2

Maximum temperature: 450 °C

Split range: 1-10,000 (column dependent)

PWOC Packed/Wide-bore On-Column Injector

Pressure range: 0-150 psi

Total flow:

50 mL/min (Type 23 EFC)

Maximum temperature: 450 °C

Suited for columns:

Wide bore (0.53 mm)

Packed (1/8” to 1/4”)

FID Flame Ionization Detector

Maximum temperature: 450 °C

Directivity: 2 pg C/sec

Linear dynamic range: 107

Flame tip type: ceramic (patented)

Operational quality:

Flame-out detection

Auto re-ignition

Dimensions and Weights

Size*: Height: 57 cm (22.5in.)

Width: 66 cm (26.0 in.)

Depth: 56 cm (22.0 in.)

Weight*: 43 kg (95 lb)

Environmental Conditions

Operating temperatures: 10°C to 40 °C.

Operating humidity(relative): 5 % to 95 %

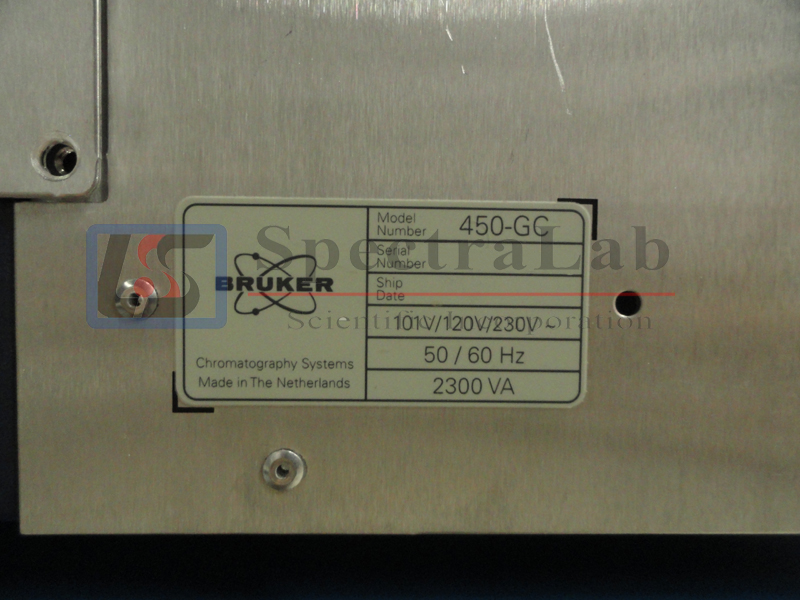

Line voltage requirements:,120 V, 230 V (±10 %nominal)

Column Oven

Dimensions: 28 cm (w) x 20cm (d) x 28 cm (h)

Temperature range:

Ambient +4 °C to 450 °C

Liquid N2: -100 °C to 450°C

Liquid CO2: -60 °C to 450°C

Temperature program ramps/holds: 24/25

Maximum temperature ramprate: 150°C/min for all voltages

And 180°

C/min with oven insert accessory

Cool down rate: 400 °C to50 °C in 4.5 minutes

Temperature set-point resolution: 0.1 °C

Ambient temperature reject<0.01°

C change in oven for 1°

C change in ambient temp

Retention time Repeatability <0.008% or <0.0008 min, based on Pentad cane under temperature program

Conditions

Area repeatability < 1%RSD

General Specifications

Up to 9 EFC modules total,injector, detector and auxiliary

Optional back flush

GC Control:

External events (digital output): 8 standard

8 optional, total 16

Max number of timed events:16

Heated zones:

• Standard 5
• 4 optional, 9 total Two power outlets 24V (1Amax. each)

Methods:

Maximum stored in ternal methods: 50 (max. 30 alphanumeric characters)

Logging:

Run log file (stored with the chromatogram when using Compass CDS)

Error log file

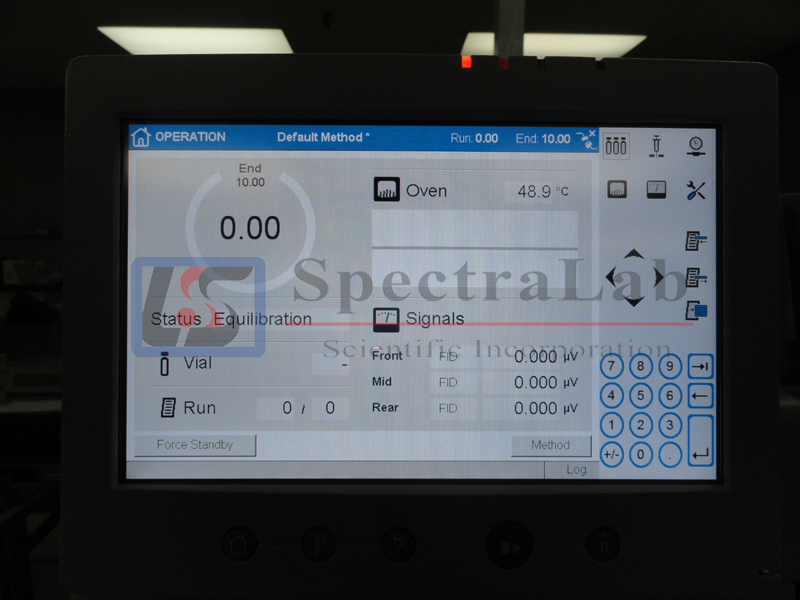

Local Display:

TFT full color screen

WVGA resolution (800 x 480)

Size 23 cm (9″)

Local Control:

Touch screen

Hard keys

Local automation:

Method lines: 25

Modes:

• Infinite looping
• Dual and duplicate injection

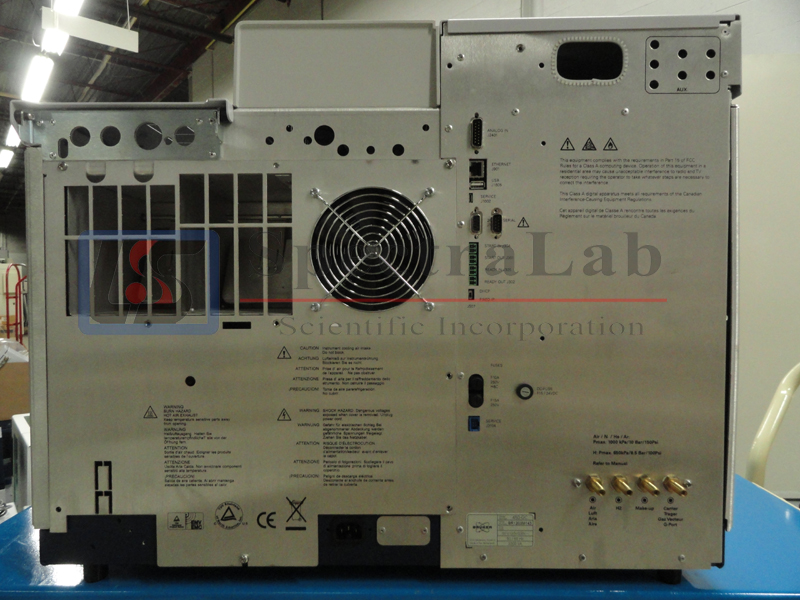

Communication

Ethernet: Protocol: TCP/IP

Data rate: 100 Mbps

Control: GC control and method parameters

Analog output (optional):

Number of channels: 3

Time programmable steps: 30

Output software selectable(set individual):

• 0-1 V (default)

• 0 -10 V

Synchronization signals with other devices and data systems:

Ready in and out

Start in and out

Data Handling and SystemControl:

Compass CDS Chromatography Data System

This Bruker scion 456 GC is in a great shape. It has been tested at SpectraLab Scientific.

A 90 day warranty is included.

We encourage you to contact us to speak with one of our expert and professional.
