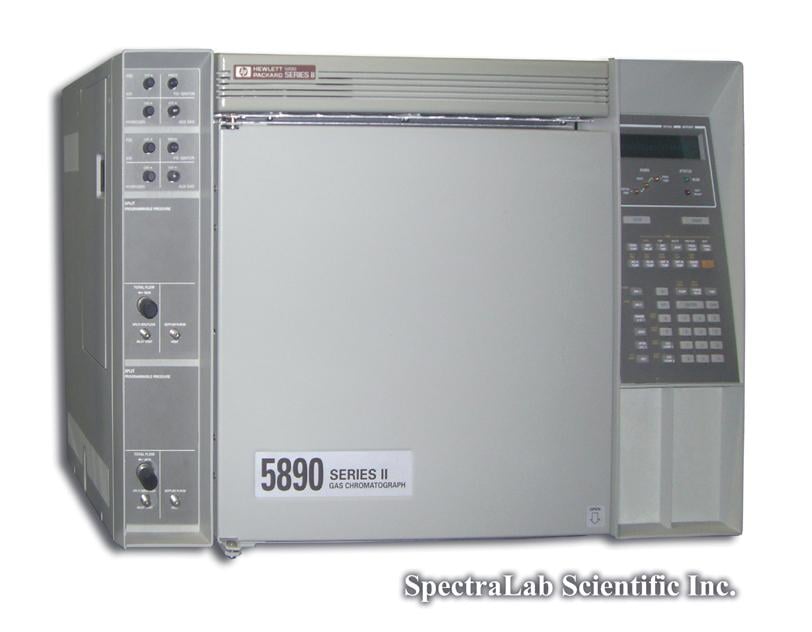

HP 5890 II GC with Dual FIDs, Dual EPC controlled Split/splitless Inlets

Specification

Heated Devices

• Five heated zones standard: Two detectors, Two inlets, one auxiliary
• Methods stored: Two

Split/Splitless Capillary

• Range to 400°C in 1°C increments
• Back-pressure design permits independent adjustment of split flow rate without affecting column flow
• Septum purge builtin at 3 ml/min
• Accepts columns unto 1.2-mm od
• Multi mode design includes split and splitless injection
• Splitless purge time variable in 0.01-min elements

Flame Ionization Detector

• Range to 450°C
• Grounded jet and current limited design for operator safety
• Push-button flame ignition
• Sensitive:
• 18 mCoul/gm carbon:nitrogen carrier, 0.018-in. id jet
• 15 mCoul/gm carbon:helium carrier, 0.018-in. id jet
• 22 mCoul/gm carbon:nitrogen carrier, 0.018-in. id capillary jet
• 18 mCoul/gm carbon:helium carrier, 0.018-in. id capillary jet
• Minimum detectable:5 pg carbon/sec, nitrogen carrier at S/N=2
• Linear dynamic range:+/- 10% over a 10 7 range with 0.018-in. id jet
• Conditions: column flow 50 ml/min, 45 ml/min H2, 650 ml/min air, propane sample

Flame Photometric Detector

• Range to 300°C
• 100-530 u id capillary columns fit through the transfer line to the base of the flame
• Two combustion modes: air/hydrogen or oxygen/hydrogen
• Detector signal display to view when flame is lit
• Push-button flame ignition
• Sulphur mode: Sensitivity to 20 pg S/second, Range 103, Selectivity 105 g S/g C
• o Phosphorus mode:Sensitivity to 0.9 pg P/second, Range 104, Selectivity 106 g P/g C

Column Oven

• Operating range: 4°C above ambient to 450°C
• Set point entry: 1°C for temperatures, 0.1°C for program rates
• Programming: Rates 0.1 to 70 °C per min, 650 min maximum run time, Three ramps with initial/final holds

This refurbished HP 5890 II GC with Single FID, Dual Split/splitless Inlets is in great condition. It has been tested at SpectraLab Scientific.

A 90 day warranty is included.

Installation and extended warranty available upon request.

Multiple available
