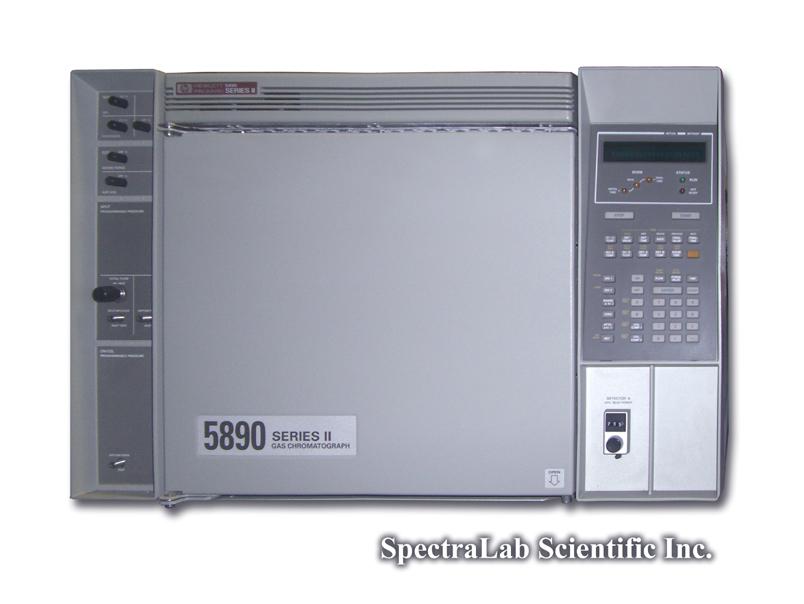

HP 5890 II GC with ECD and NPD, Split/splitless Inlet and on-column Inlet

Specifications

Heated Devices

• Five heated zones standard: Two detectors, Two inlets, one auxiliary
• Methods stored: Two

Split/Splitless Capillary

• Range to 400°C in 1°C increments
• Back-pressure design permits independent adjustment of split flow rate without affecting column flow
• Septum purge builtin at 3 ml/min
• Accepts columns up to 1.2-mm od
• Multi mode design includes split and splitless injection
• Splitless purge time variable in 0.01-min elements

Flame Photometric Detector

• Range to 300 °C
• 100-530 u id capillary columns fit through the transfer line to the base of the flame
• Two combustion modes: air/hydrogen or oxygen/hydrogen
• Detector signal display to view when flame is lit
• Push-button flame ignition
• Sulphur mode:Sensitivity to 20 pg S/second, Range 103, Selectivity 105 g S/g C
• o Phosphorus mode:Sensitivity to 0.9 pg P/second, Range 104, Selectivity 106 g P/g C

Column Oven

• Operating range: 4°C above ambient to 450°C
• Setpoint entry: 1°C for temperatures, 0.1°C for program rates
• Programming: Rates 0.1 to 70°C per min, 650 min maximum run time, Three ramps with initial/final holds

This refurbished HP 5890 II GC with ECD and NPD, Split/splitless Inlet and on-column Inlet is in great condition. It has been tested at SpectraLab Scientific.

A 90 day warranty is included.

Installation and extended warranty available upon request.

Multiple available
