Shimadzu SSM-5000A Solid Sample Combustion Unit

Combining the SSM-5000A with a TOC-Vcs/cp analyzer permits analysis of many solid samples in addition to aqueous samples, including soil,sludge, and sediments. Carbon measurement in attached residues using the swab method can be conducted for cleaning validation.

Features

Analysis of 1 g samples with up to 30 mg carbon content reduces weighing errors or errors due to the uneven distribution of the sample carbon content.

The use of unique tandem measurement cells, combining a long cell to measure aqueous samples and a short cell for solid samples, permits a single TOC analyzer to handle a range from several 10 ppb TOC in ultra pure water to 10% TOC in solid samples.

Measurement of inorganic carbon (carbonate) in solid samples is also easy.

Aqueous samples containing large amounts of suspended matter can be analyzed by inputting the sample in a sample boat.

Switching between TOC-Vcs/cp analysis of aqueous samples and SSM-5000A measurements of solid samples is achieved by simple screen settings.

The SSM-5000A can be attached to a TOC-Vcs/cp unit with Autosampler installed. (Automatic measurement of solid samples is not possible.)

Specifications

Analyte

TC, IC, TOC (TC-IC)

Method

TC: Catalytically aided combustion oxidation at 900°C

IC: Pre-acidification, oven temperature: 250°C

Measuring range

TC: 0.1 mg to 30 mg carbon

IC: 0.1 mg to 20 mg carbon

Sample Amount

1 gram – aqueous content < 0.5 g

Repeatability

S.D. ±1% of full scale range.

Analysis Time

5 to 6 minutes at a gas rate of 500 mL/min.

Carrier Gas

99.9% O2 at 500 mL/min.

Ambient temperature requirements

5° to 35° C

Power requirements

100-127V or 220-240V as ordered. 12A: TOC-5A: SSM-7A. 50/60Hz

Weight

about 30 kg

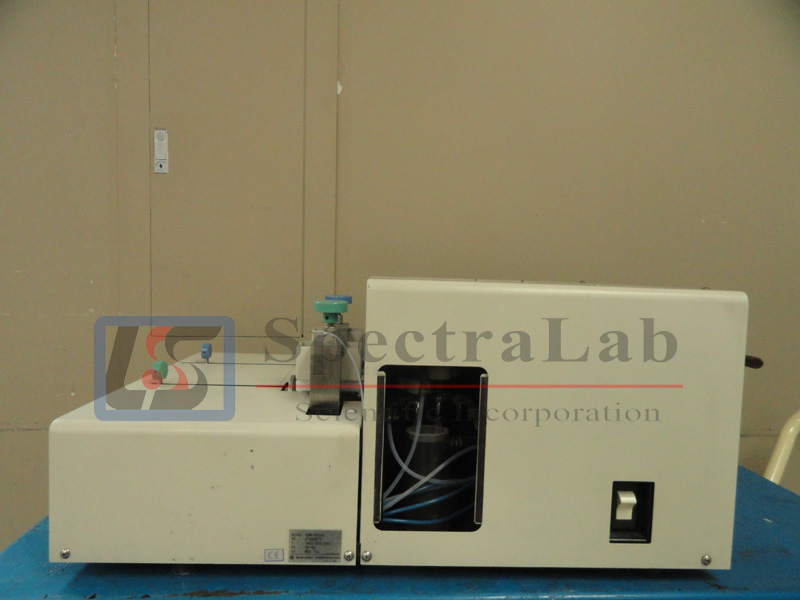

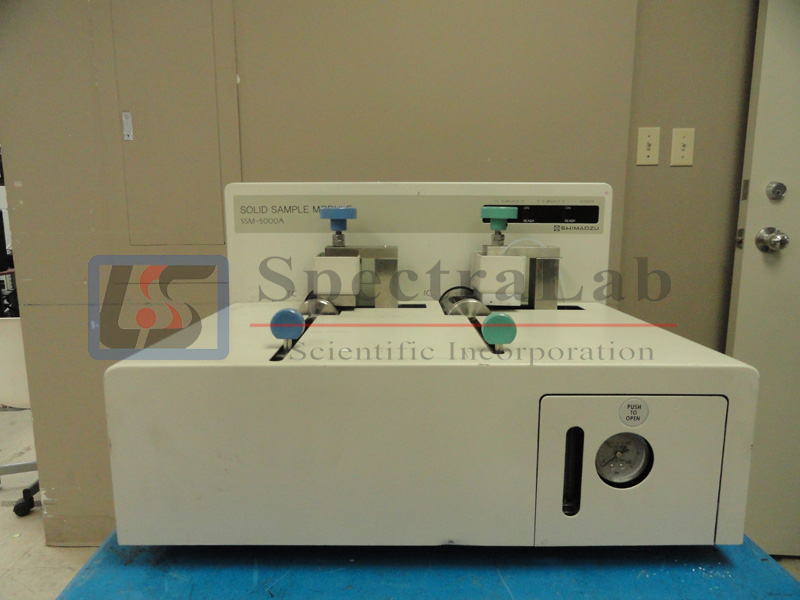

This SSM-5000A Solid Sample Combustion Unit is in good working condition.

A 90 day warranty is included.
