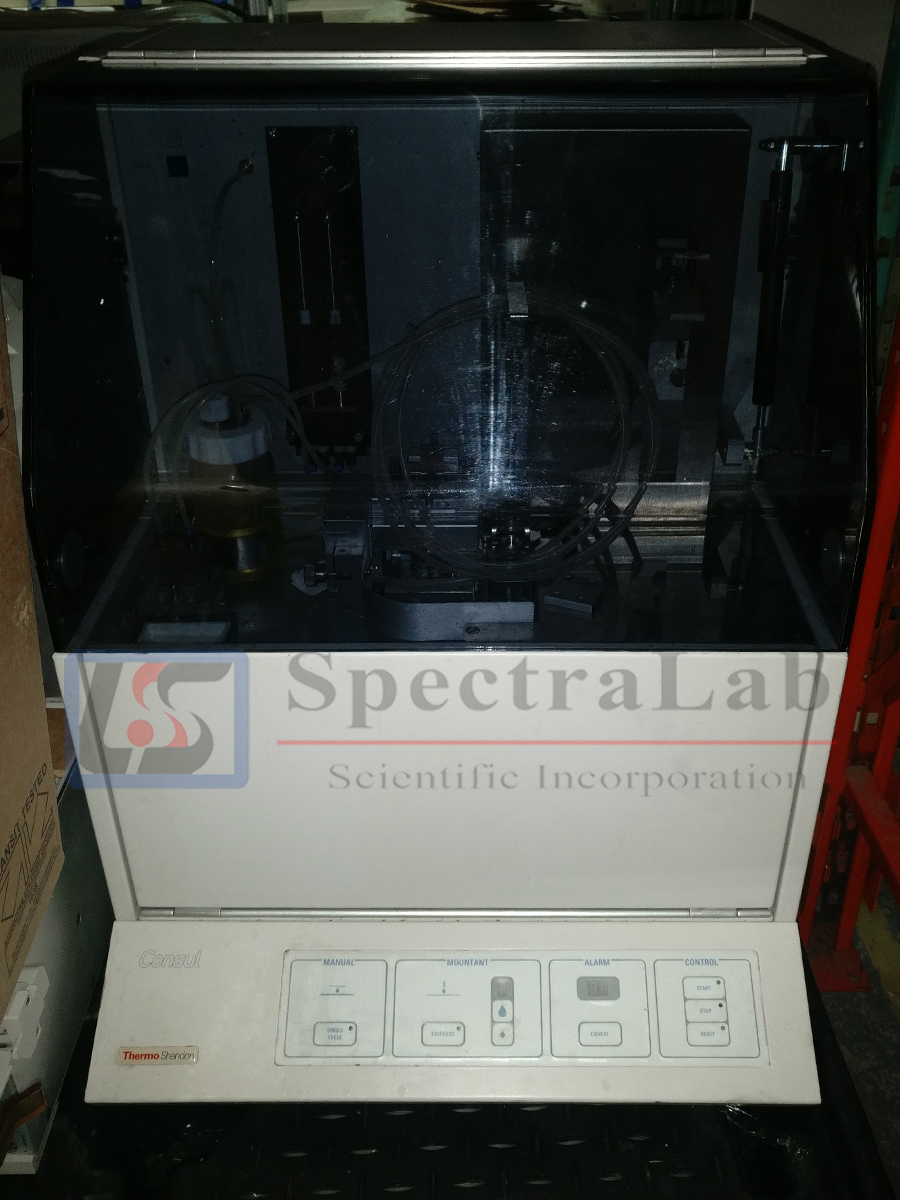

Thermo Shandon Consul Automated Coverslipper System

The Thermo Shandon Consul Automated Coverslipper System permanently covers slide-mounted specimens using routinely accepted glass coverslips. This is the only method truly compatible with the optics of today’s high-performance microscopes and image analysis systems. This system automates coverslipping and maintains long-term storage quality of specimens. Coverslips 400 slides per hour using permanent, glass coverslips.

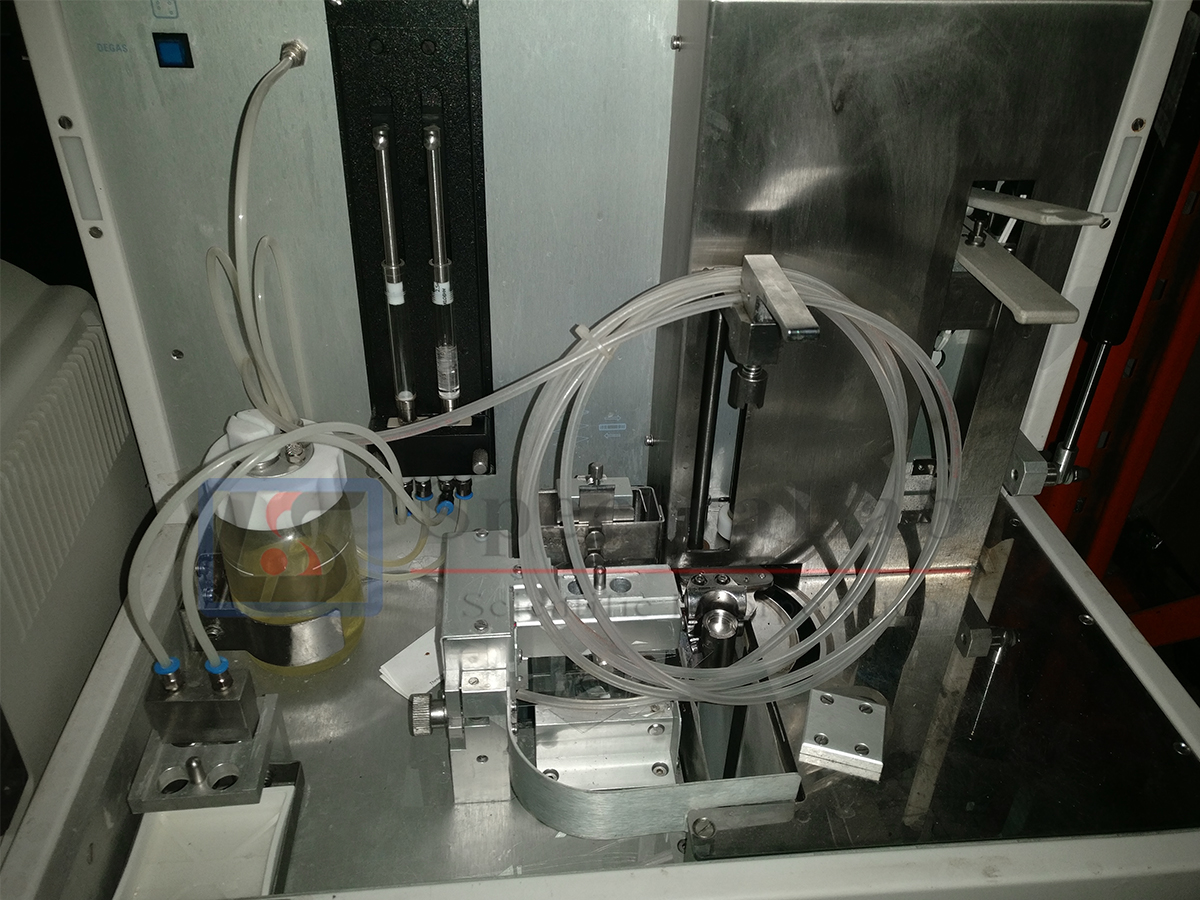

The system reduces operator exposure to solvents. Eliminates repetitive motion which can lead to injury. Unit comes with built-in activated charcoal filter; vent adapter kit is also available. Slides are stored in a clearant reservoir before coverslipping. It accepts coverslip sizes 22, 24 x 40, 50, 55, 60 mm. Accommodates slides from 0.8 to 1.2 mm in thickness. High-precision computerized mountant dispense system gives the user 9-level control of mountant dispense volume. Optical sensors detect incorrect or multiple coverglass feed. Roll-on pressure pad assures smooth adhesion. Mountant and roller pad pressure can be adjusted for either histology or cytology preparations.

Daily maintenance takes less than ten minutes. Integrates with Stainers (including competitors) and the Shandon Varistain 24-4 and Varistain Gemini.
