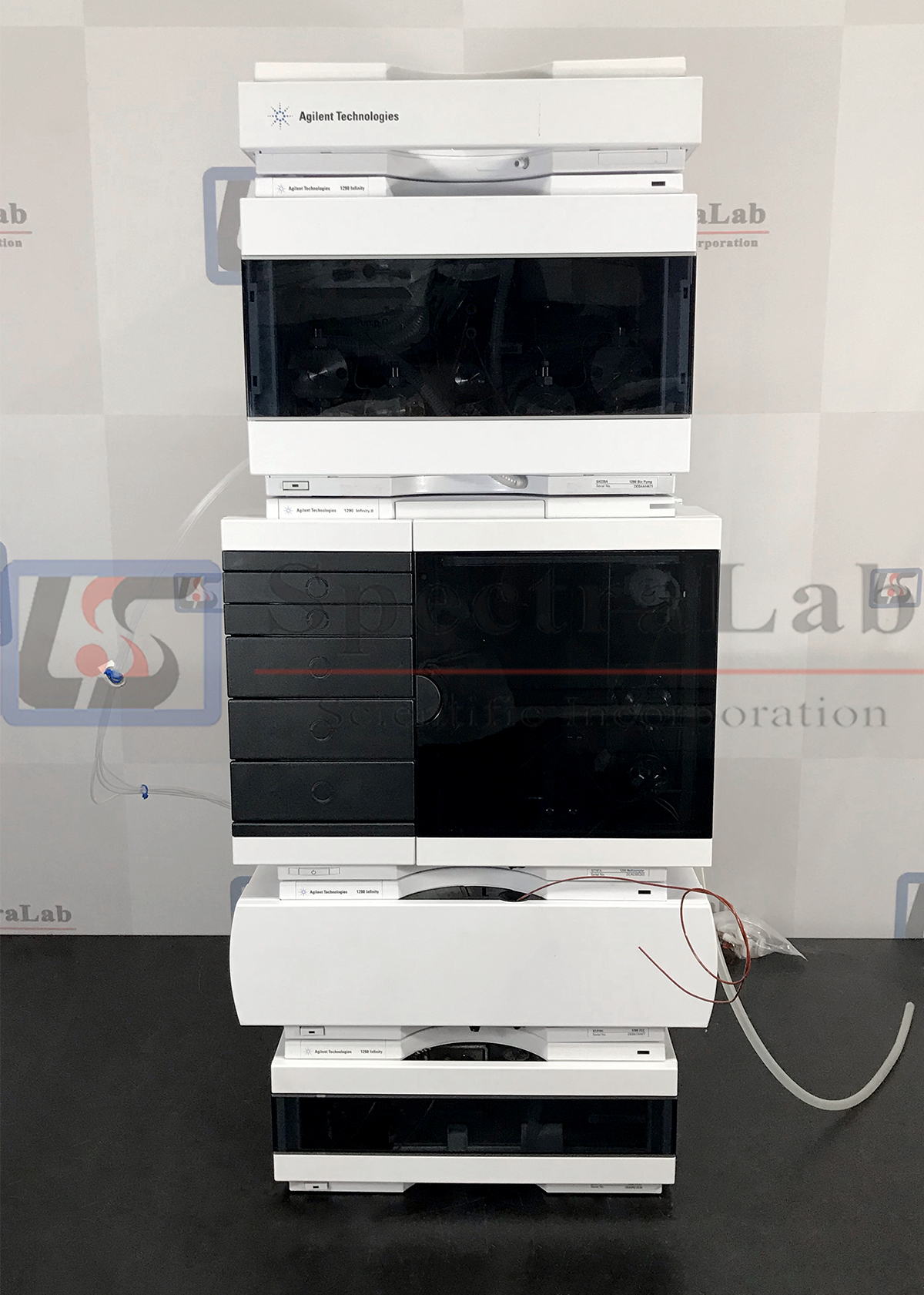

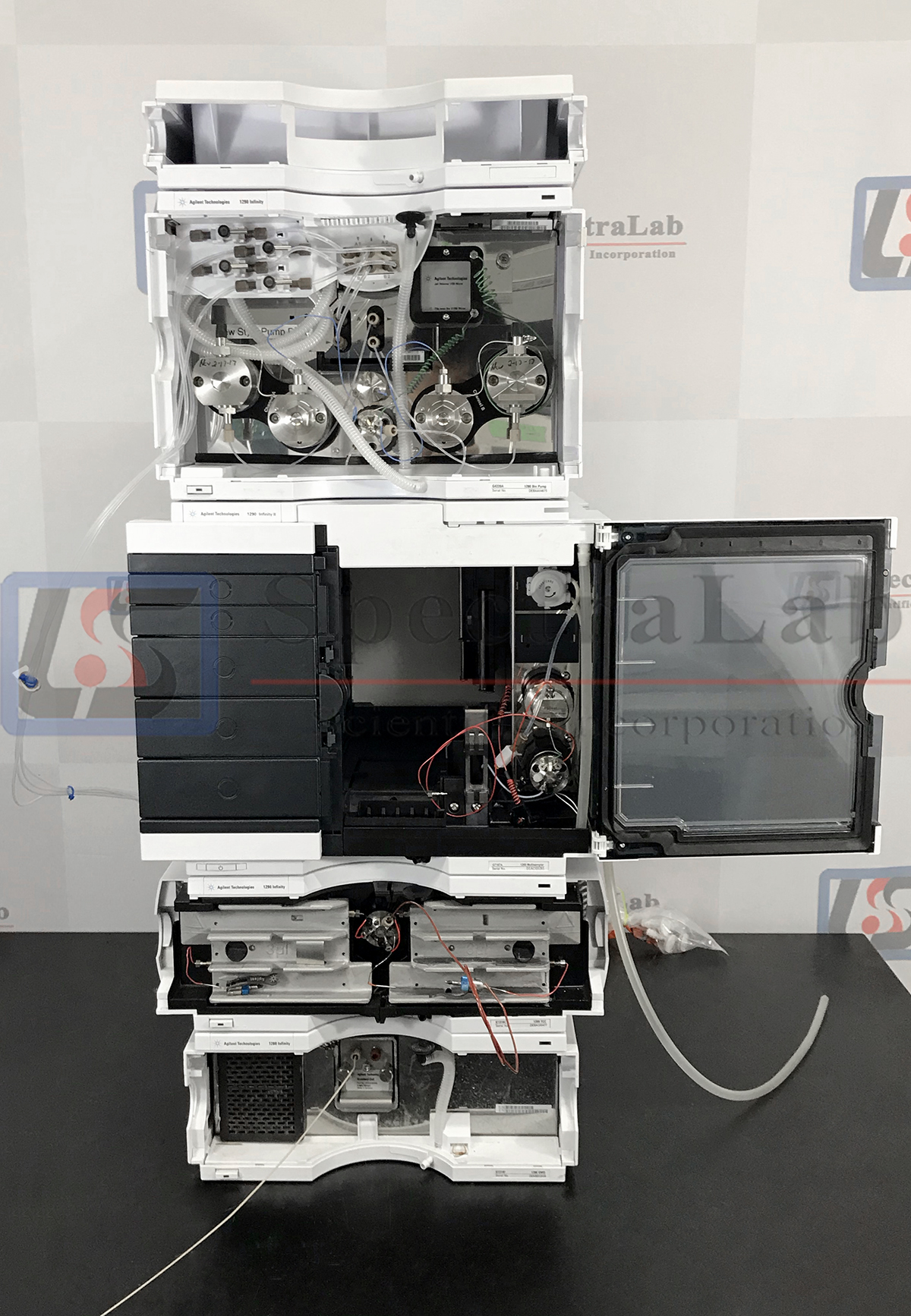

Agilent 1290 Infinity UHPLC System with G1314F Variable Wavelength Detector

This system includes:

• (1) Agilent 1290 G4220A Binary Pump
• (1) Agilent 1260 G4226A Autosampler
• (1) Agilent 1290 G1316C Thermostatted Column Compartment (TCC)
• (1) Agilent 1260 G1314F Variable Wavelength Detector (VWD)

Agilent 1290 G4220A Binary Pump

Agilent 1260 G7167A Multisampler

• Sample drawers are available in three heights to accommodate any combination of sample containers for maximum flexibility
• Shallow microplate drawers take a maximum load of 16 microplates and up to 6,144 samples for unmatched sample capacity
• Robotics move microplates and other sample containers from sample hotel to central workspace for seamless automation during sample processing steps and injections
• Dual-needle setup enables reduction of injection cycle times to mere seconds, virtually eliminating conventional wait times
• Dual-needle injection paths can be individually optimized for enhanced injection flexibility
• Multiwash capability flushes the outside surfaces of the injection needle outside with three solvents and uses seat backflush procedures to reduce carryover to less than 9 ppm
• Integrated sample thermostat, available as option or upgrade, provides cooling and heating from 4 to 40 °C
• Lights on each drawer indicate loading status, current activity, and accessibility for instant information

Agilent 1290 G1316C Thermostatted Column Compartment

• Temperature precision specification of ± 0.05 degrees for repeatable retention times and peak areas.
• Maximum application flexibility through Peltier cooling and heating for two independent temperature zones from 10°C below ambient temperature up to 100°C.
• Low dispersion – optimized for low internal volume contribution.
• Spacious column racks provide room for three 30 cm columns or several shorter columns.
• Ultra high pressure valves for many applications such as alternating column regeneration, sample preparation and dual or multi-column selection.
• Unique pull-out and Quick Change Valve design for simplistic plumbing and valve exchange.
• Clustering of up to three 1290 Infinity TCC modules for maximum flexibility for multi-method applications such as automated method development.
• Further features include a door-open sensor, improved thermal insulation, leak funnel and capillary guide.

Agilent 1260 G1314F Variable Wavelength Detector (VWD)

• Robust quantification of trace level components: Lowest baseline noise and drift results in lowest detection limits
• More analyte information per run with dual-wavelength capabilities
• High-resolution gain in fast LC at up to 120 Hz data acquisition rate
• Wide linear range (>2.5 AU upper limit) for reliable, simultaneous quantification of primary compounds, by-products, and impurities
• Efficient temperature control: Next-generation electronic temperature control (ETC) provides maximum baseline stability and practical sensitivity under fluctuating ambient temperature and humidity conditions
• Automatic wavelength verification provided using built-in holmium oxide filter
• Fast wavelength optimization with stop-flow wavelength scanning
• New levels of data traceability with radio frequency identification (RFID) technology for flow cells and lamps
• Maximum flexibility, compatibility, and investment protection with a range of eight analytical and preparative flow cells
• Continuous tracking of instrument usage: Early maintenance feedback (EMF) continuously tracks lamp burn time with user-defined limits and message types
• Extensive analytics, error detection, and displays using Agilent Lab Advisor software
